Description

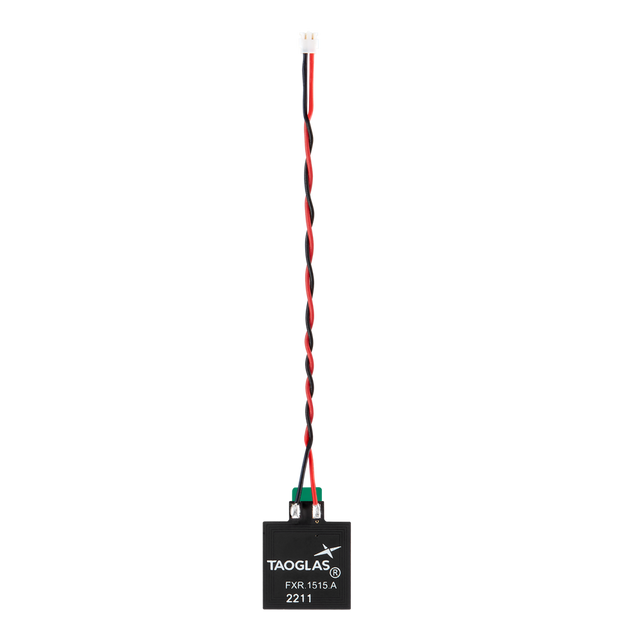

Flexible embedded NFC antenna designed for two-way read/write operation at 13.56MHz in compact devices. Its low-profile, flexible construction and integrated ferrite flux director help support consistent performance when installed inside plastic enclosures and near internal electronics.
- Designed for embedded device integration: ideal for space-constrained product designs
- Ferrite flux director: helps provide isolation from batteries and nearby components
- Adhesive backing: supports fast, simple placement inside the device
Typical applications include: Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Air cargo tracking, Access Control and Electronic Keys.
Connector & Cable
- Connector Type: ACH(F)
- Cable Length: 7.5cm
- Cable Type: Twisted Pair 28AWG - PVC
Installation / Environmental
The compact, flexible NFC antennas are supplied with adhesive backing for quick and easy installation and can be mounted inside a plastic device enclosure or on an internal battery. For any NFC antennas that are attached to the battery, we offer variants with ferrite flux directors to provide isolation from the battery or other electronic components within the device. Using the antenna on a conductive surface without a ferrite layer could result in losses on the antenna communication performance.
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Dimensions: 15*15*0.355 mm
Thickness: 0.27 mm
Weight: 1 g
NFC
Frequency: 13.56 MHz
Standards: NFC
Impedance: 50Ω
Polarization: Linear
La: 1.05 µH
Rs: 2.78 ohm
Q Factor: 32.2
Self-Resonance Frequency: 83.4 MHz
Rp: 5.35 kohm
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
Adhesive: 3M467 or 3M9460
