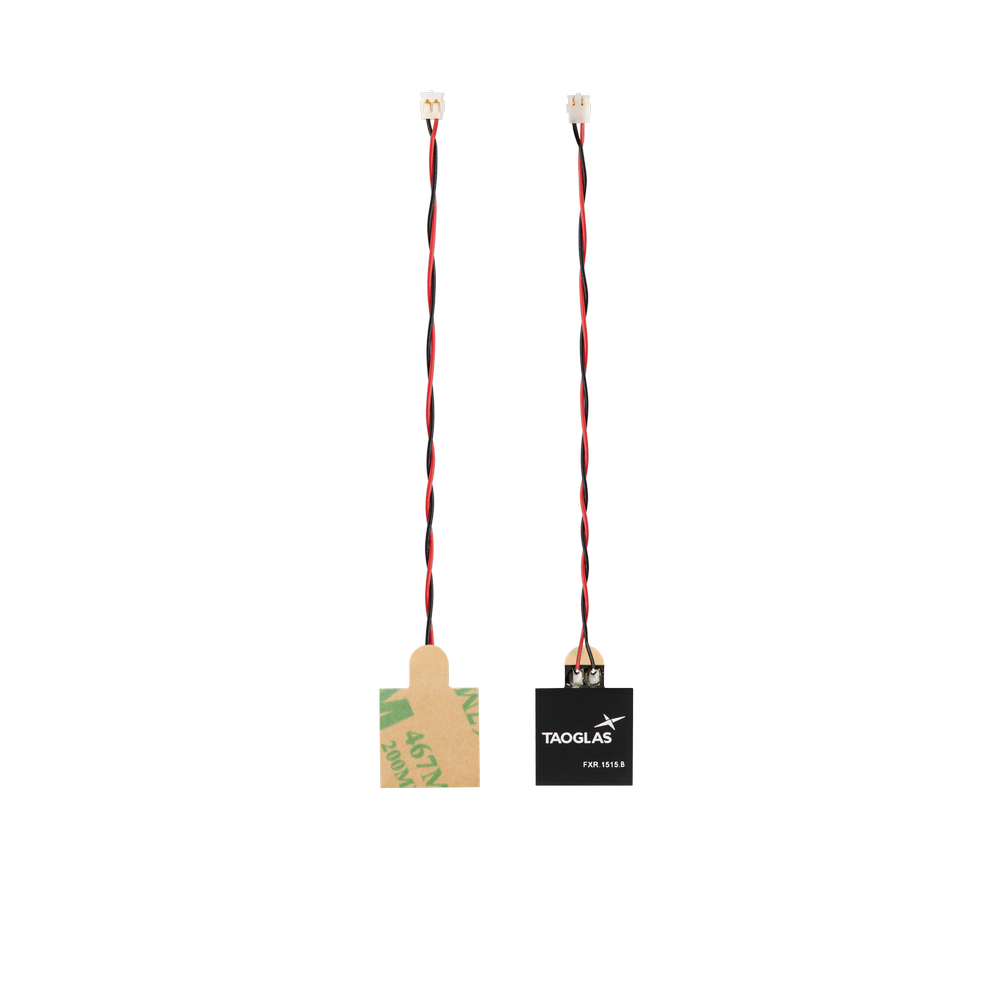

FXR.1515.52.0075X.B.DG Antenna Flexible Low-Profile NFC adhesive flex ACH(F) 7.5cm twisted pair 28AWG for Mobile Devices, Wearable Smart Devices, Payment Terminals, Access Control

This flexible, low-profile NFC antenna is designed for embedded integration in compact devices. It features a reverse ferrite layer to help isolate the antenna from nearby conductive components (such as batteries) and supports quick integration using peel-and-stick adhesive backing.

• NFC operation: Designed for 13.56 MHz applications
• Reverse ferrite layer: Helps reduce detuning and performance loss when mounted near conductive surfaces
• Flexible embedded form factor: Suitable for integration inside plastic enclosures or on internal assemblies
• Adhesive backing: Quick placement and secure internal mounting

Typical use cases include: mobile devices, wearable smart devices, payment terminals, device tracking and ID systems, and access control.

Connector & Cable

• Connector Type: ACH(F)
• Cable Length: 7.5cm
• Cable Type: Twisted Pair 28AWG - PVC

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Frequency: 13.56 MHz
Impedance: 50Ω
Polarization: Linear
Dimensions: 15*15*0.3mm
Weight: 5.2g
Inductance (La): 1.08 µH
Series Resistance (Rs): 2.69 ohm
Q Factor: 33.99
Self-Resonance Frequency: 647 MHz
Parallel Resistance (Rp): 56.20 kohm
Humidity: Non-condensing 65°C 95% RH
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
Adhesive: 3M467 or 3M9460
RoHS Compliant: Yes
