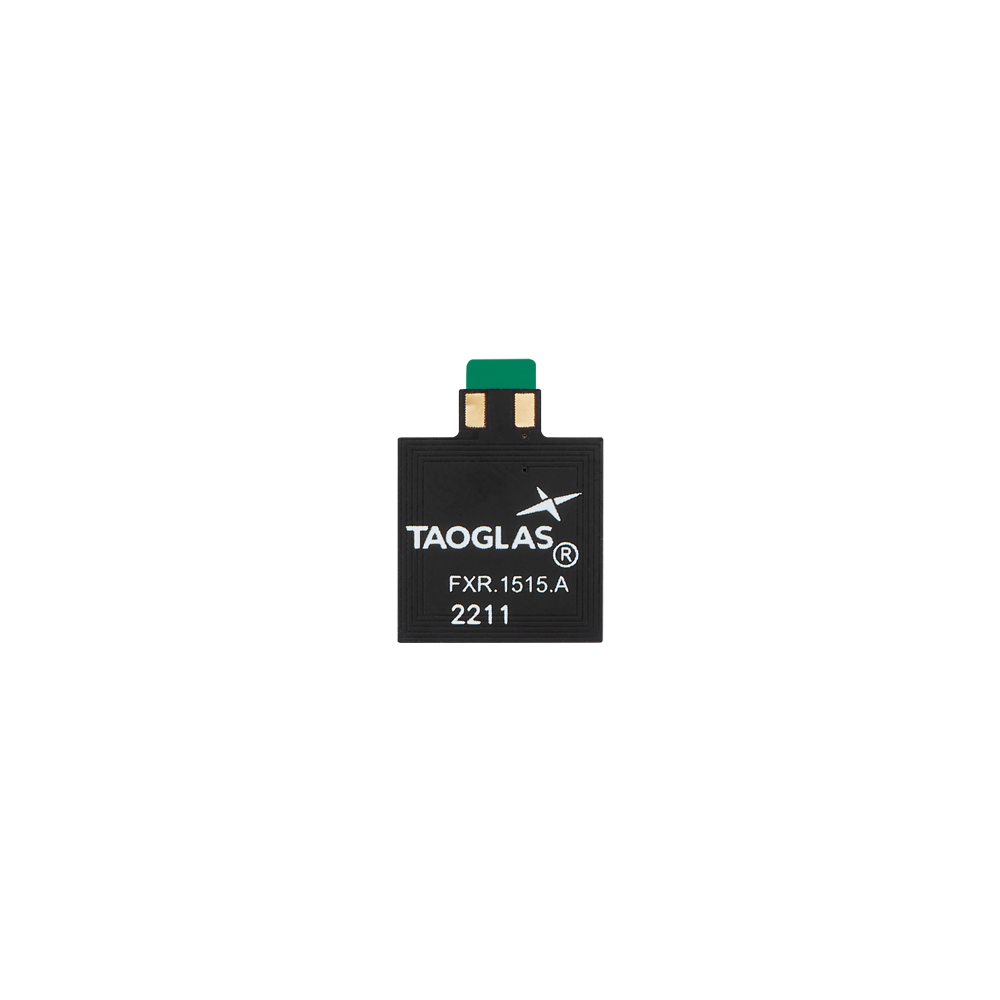

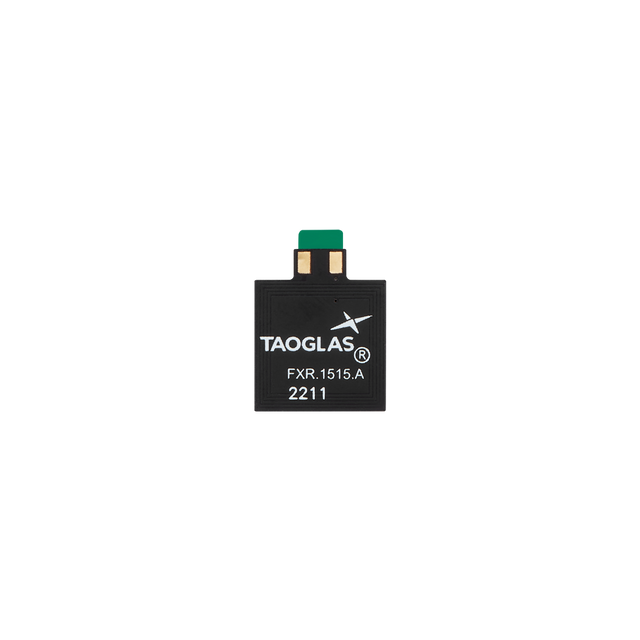

FXR.1515.A.dg Antenna NFC 13.56MHz embedded flex PCB adhesive for Mobile Devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

The FXR.1515.A.dg is a compact, flexible NFC (Near Field Communications) antenna designed for two-way read/write operation at 13.56MHz. It features an integrated ferrite layer to help isolate the antenna from nearby batteries or other electronics, and an adhesive backing to simplify placement inside a device enclosure.

This low-profile format is well-suited to embedded NFC designs where consistent performance is needed in space-constrained products.

Typical Applications

• Mobile Devices
• Wearable Smart Devices
• Payment Terminals
• Device tracking and ID systems
• Access control

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Dimensions: 15*15*0.355 mm
Thickness: 0.27 mm
Weight: 1 g

NFC

Frequency: 13.56 MHz
Impedance: 50 Ohm
Mechanical Style: Flex PCB with Ferrite
Termination Style: SMD/SMT
Connector Type: Contact pads (no cable)
Adhesive: 3M467 or 3M9460
