Description

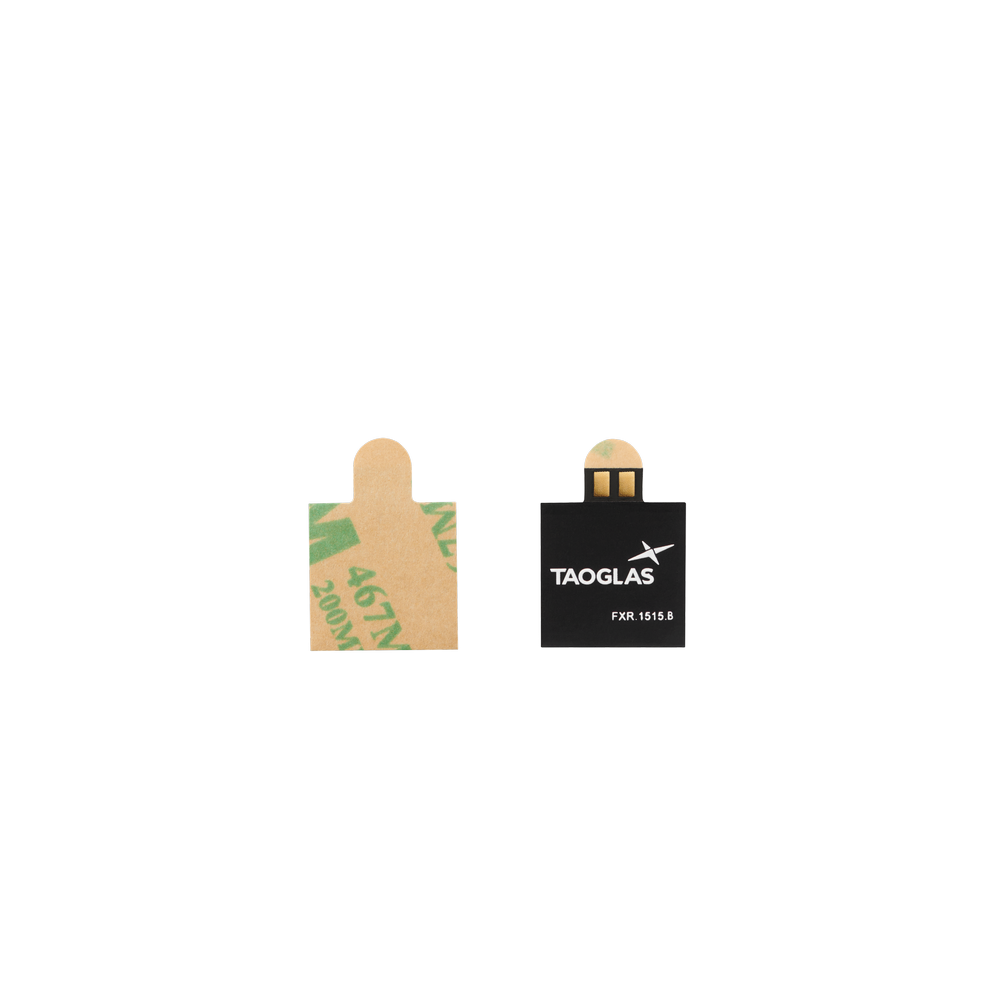

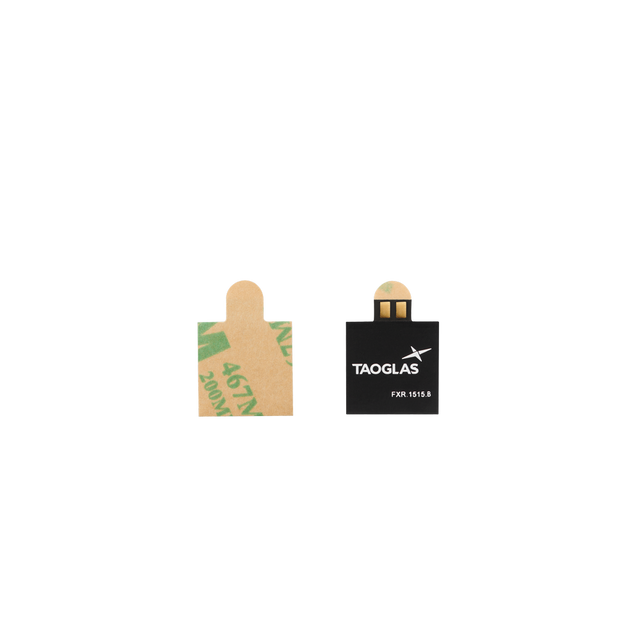

This compact, flexible NFC (Near Field Communication) antenna is designed for easy integration into space-constrained devices. Its reverse ferrite layer helps improve isolation from nearby conductive and electronic components, supporting more consistent NFC communication when mounted inside an enclosure or near an internal battery.
- 13.56 MHz NFC antenna for short-range contactless communications
- Reverse ferrite layer to help reduce detuning and performance loss near conductive surfaces
- Flexible, low-profile embedded format suited to compact product designs
- Adhesive backing for fast peel-and-stick placement during assembly
Typical applications include: Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Access Control.
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Dimensions: 15*15*0.355 mm
Weight: 3.4g
Impedance: 50Ω
Mechanical Style: Flex PCB with Ferrite
RoHS Compliant: Yes
NFC
Frequency: 13.56 MHz
Inductance (La): 1.01 µH
Series Resistance (Rs): 2.70 ohm
Q Factor: 31.75
Self-Resonance Frequency: 622 MHz
Parallel Resistance (Rp): 108.58 kohm
Connector Type: Contact pads (no cable)
Cable: n/a
Adhesive: 3M467 or 3M9460
Humidity: Non-condensing 65°C 95% RH
