Description

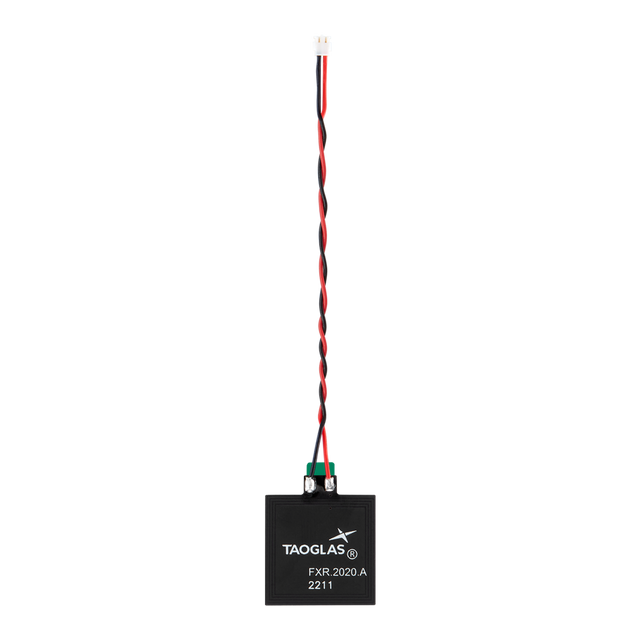

This compact, flexible NFC antenna is designed for high-performance two-way read/write operation at 13.56MHz. Its low-profile construction and adhesive backing support easy integration inside device enclosures.
A ferrite flux director helps provide isolation from nearby electronic components (such as internal batteries), supporting more consistent NFC performance in real-world embedded environments.
Typical NFC applications include:
- Mobile devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Air cargo tracking
- Access Control and Electronic Keys
Connector & Cable
- Connector Type: ACH(F)
- Cable Length: 7.5cm
- Cable Type: Twisted Pair 28AWG
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Frequency: 13.56 MHz
Impedance: 50 Ω
Polarisation: Linear
Antenna Dimensions: 20*20 mm
Thickness: 0.27 mm
Adhesive: 3M467 or 3M9460
Weight: 1 g
RoHS Compliant: Yes
NFC
Frequency: 13.56 MHz
La: 1.02 µH
Rs: 2.4 ohm
Q Factor: 36.2
Self-Resonance Frequency: 82.3 MHz
Rp: 4.91 kohm
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG
