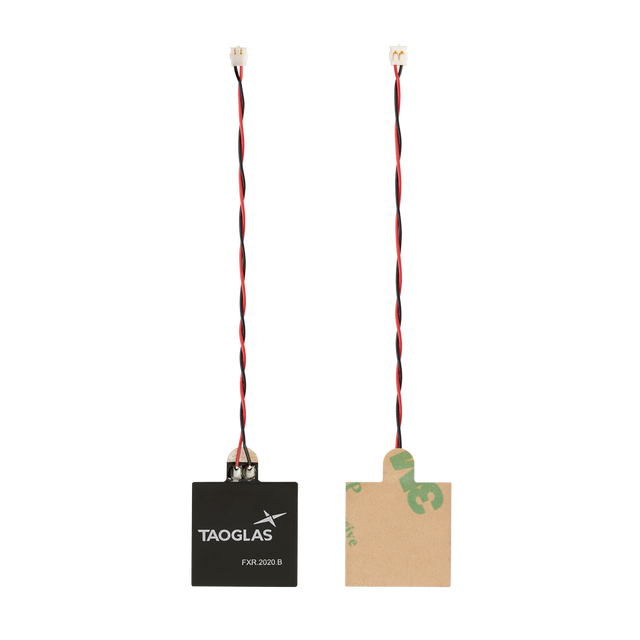

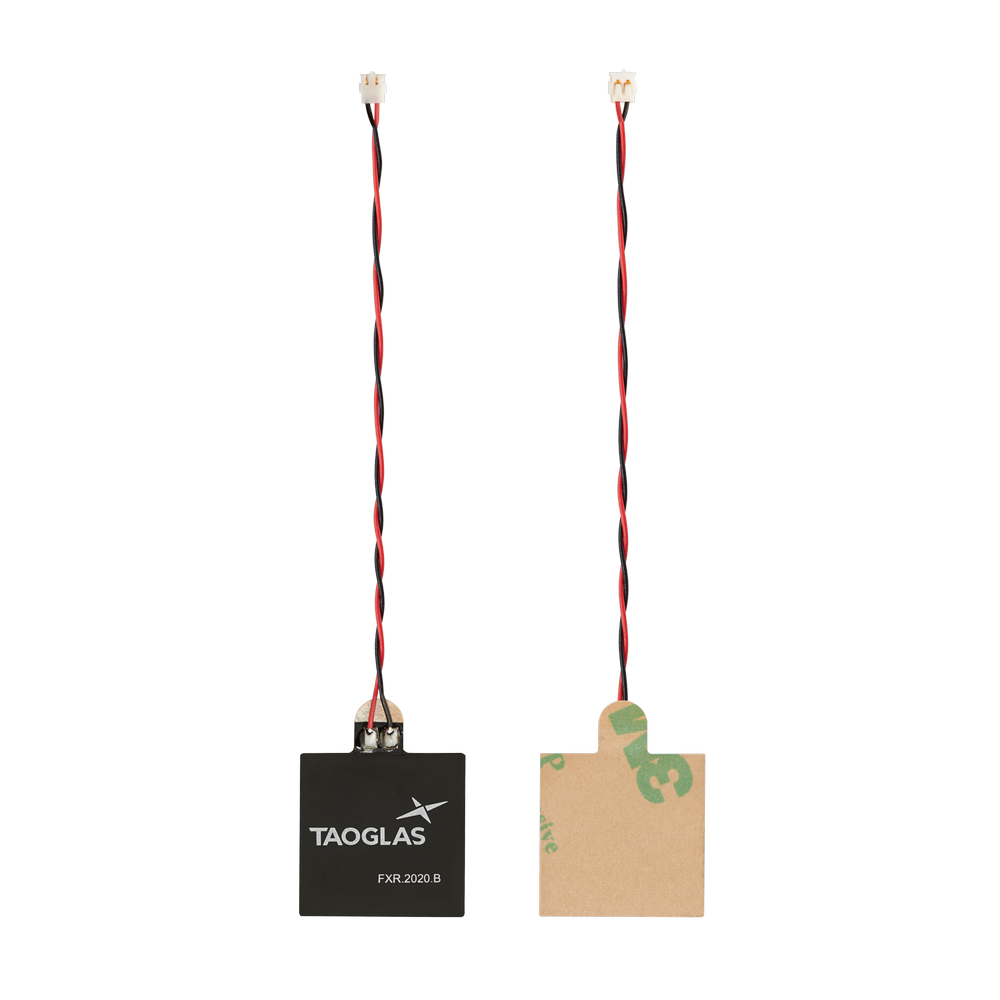

FXR.2020.52.0075X.B.dg Antenna Low-Profile NFC flex adhesive ACH(F) 7.5cm 28AWG for Mobile Devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

Flexible, low-profile NFC antenna designed for embedded integration in IoT and mobile devices. The reverse ferrite layer helps improve isolation from nearby conductive components (such as an internal battery) to support more consistent contactless performance.

• Embedded-ready design: flexible construction for compact device enclosures
• Reverse ferrite layer: helps reduce losses and performance issues near conductive surfaces
• Peel-and-stick installation: adhesive backing for fast placement during assembly

Common use cases include contactless payment systems, access control, and device identification / tracking solutions.

Connector & Cable

• Connector Type: ACH(F)
• Cable Length: 7.5cm
• Cable Type: Twisted Pair 28AWG

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Dimensions: 20*20*0.355 mm
Weight: 6.8g
Storage Temperature: -40°C to 85°C
Humidity: Non-condensing 65°C 95% RH

NFC

Frequency: 13.56 MHz
Standards: NFC / ISO/IEC 14443A, ISO / IEC 14443A 1-4, ISO-18092, ISO-15693
Impedance: 50Ω
Polarisation: Linear
La: 1.05 µH
Rs: 2.38 ohm
Q Factor: 37.31
Self-Resonance Frequency: 583 MHz
Rp: 68.66 kohm
Adhesive: 3M467 or 3M9460
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
