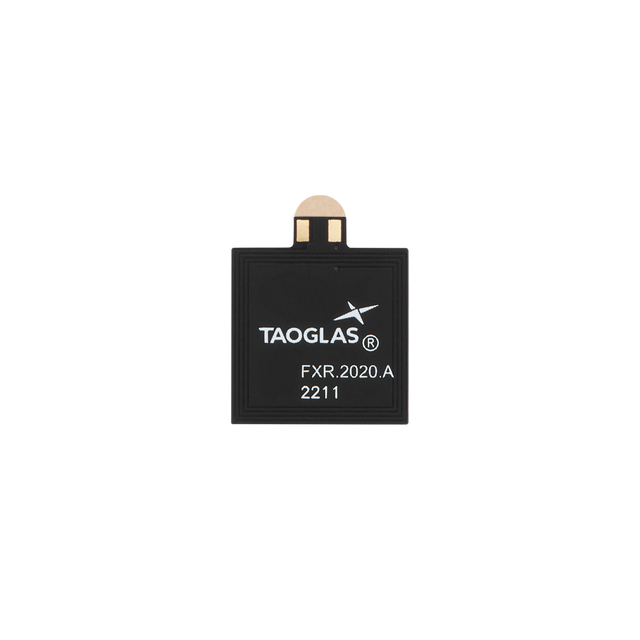

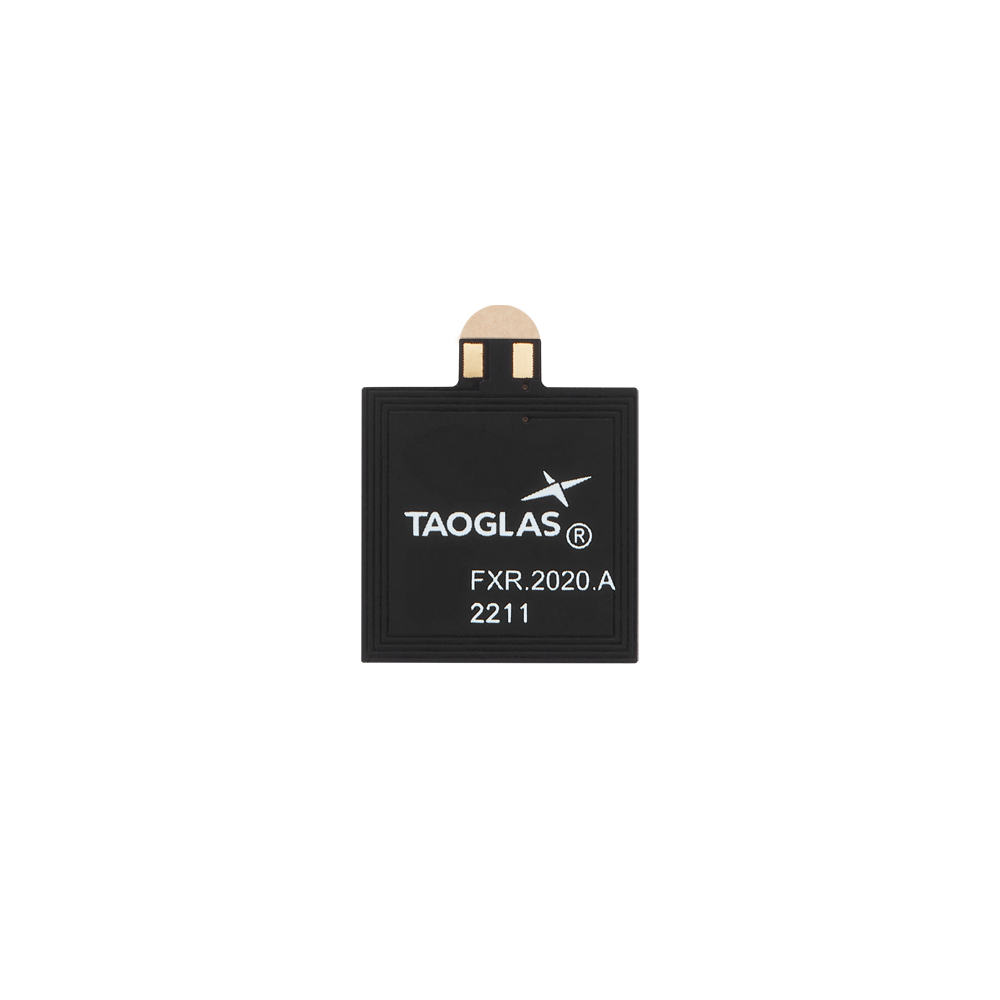

FXR.2020.A Antenna NFC adhesive flex PCB Contact Pads

The FXR.2020.A is a compact NFC (Near Field Communications) antenna designed for two-way read/write operation at 13.56MHz. Its flexible, low-profile construction and adhesive backing support fast integration into space-constrained devices.

• Flexible embedded format: Integrates easily inside plastic enclosures.
• Adhesive backing: Peel-and-stick installation for rapid prototyping and production builds.
• Device integration friendly: Plated contact pads enable connection using pogo pins or spring clips (e.g., CC.001).
• Variant support: Ferrite-backed options are available for installations near batteries or other conductive components to help reduce performance loss.

Typical applications include: Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Access Control.

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: Internal
Mounting: Adhesive Mount, SMD/SMT Mount
Type: Single
Mechanical Style: Flex PCB
Termination Style: SMD/SMT
Impedance: 50Ω
Frequency: 13.56MHz
Dimensions: 20*20*0.16 mm
Weight: 1 g
RoHS: Yes

NFC

Frequency: 13.56MHz
Impedance: 50Ω
Connector Type: Contact pads (no cable)
Cable Length: None
