Description

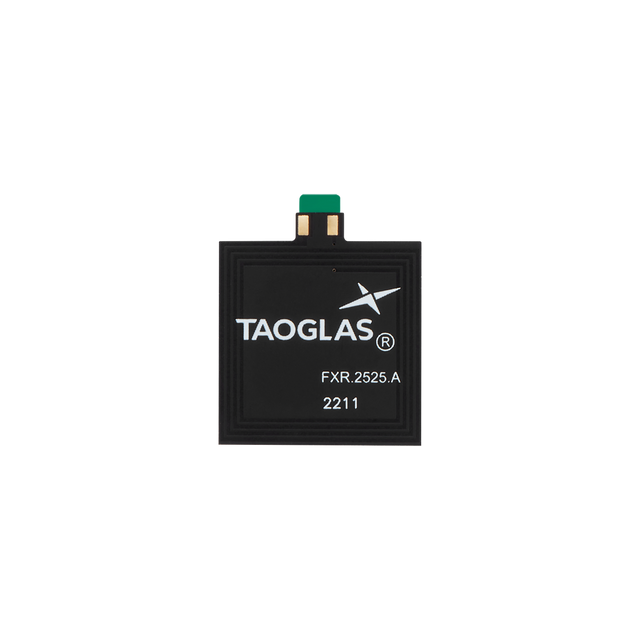

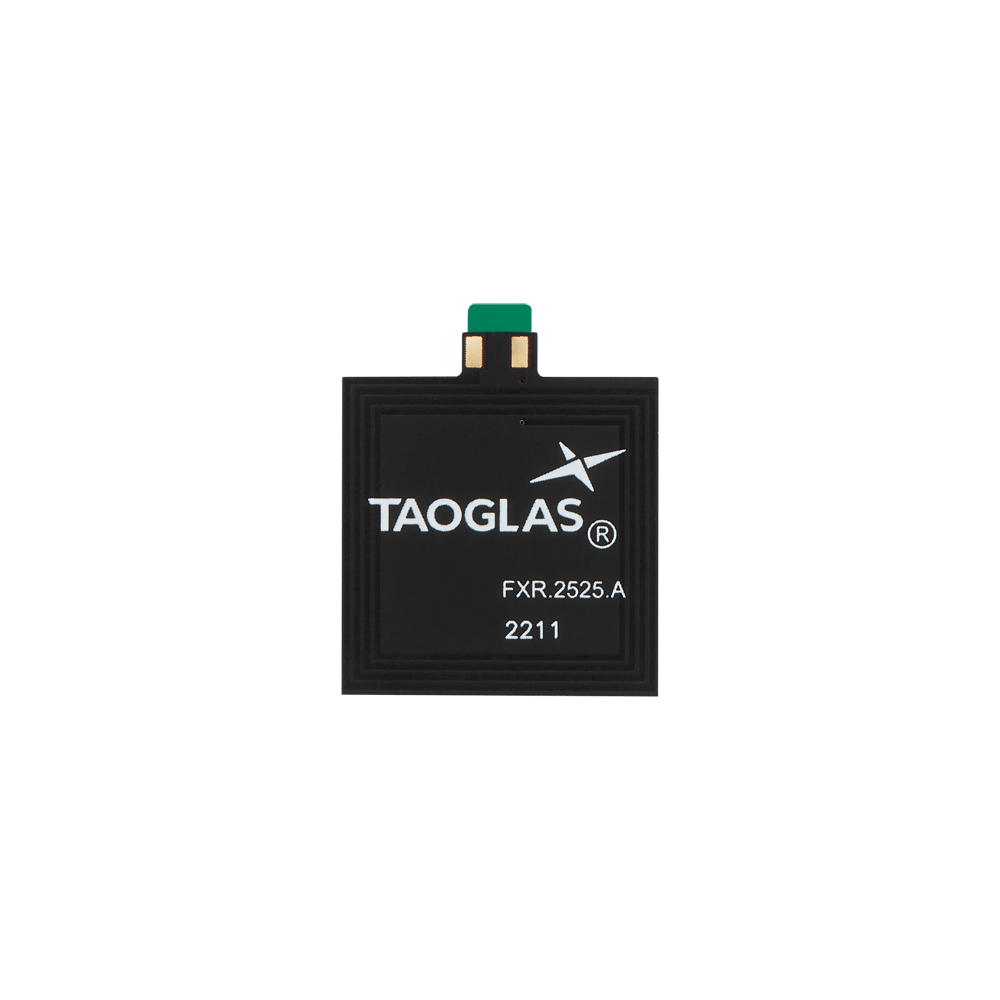

This flexible NFC (Near Field Communications) antenna is designed for two-way read/write operation at 13.56MHz in compact, embedded device designs. It features an adhesive backing for quick integration and includes a ferrite flux director to help isolate the antenna from nearby batteries or other electronic components, supporting more consistent communication performance when mounted inside plastic enclosures.
- Flexible embedded form factor: suited to low-profile device integration
- Ferrite layer: helps reduce performance losses when installed near conductive components
- Adhesive backing: peel-and-stick installation
- Contact pad termination: designed for connection via pogo pins or spring clips (e.g., CC.001)
Typical NFC applications include:
- Mobile Devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Access control
Technical Specifications
Operating Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Humidity: Non-condensing 65°C 95% RH
Location: Internal
Mounting: Adhesive Mount
Type: Single
Impedance: 50Ω
Antenna Dimensions: 25*25 mm
Thickness: 0.27 mm
Weight: 1 g
RoHS Compliant: Yes
NFC
Frequency: 13.56 MHz
Termination Style: SMD/SMT
Connector Type: Contact pads (no cable)
Cable Length: None
La: 1.03 µH
Rs: 1.87 ohm
Q Factor: 46.9
Self-Resonance Frequency: 131 MHz
Rp: 4.62 kohm
Adhesive: 3M467 or 3M9460
