Description

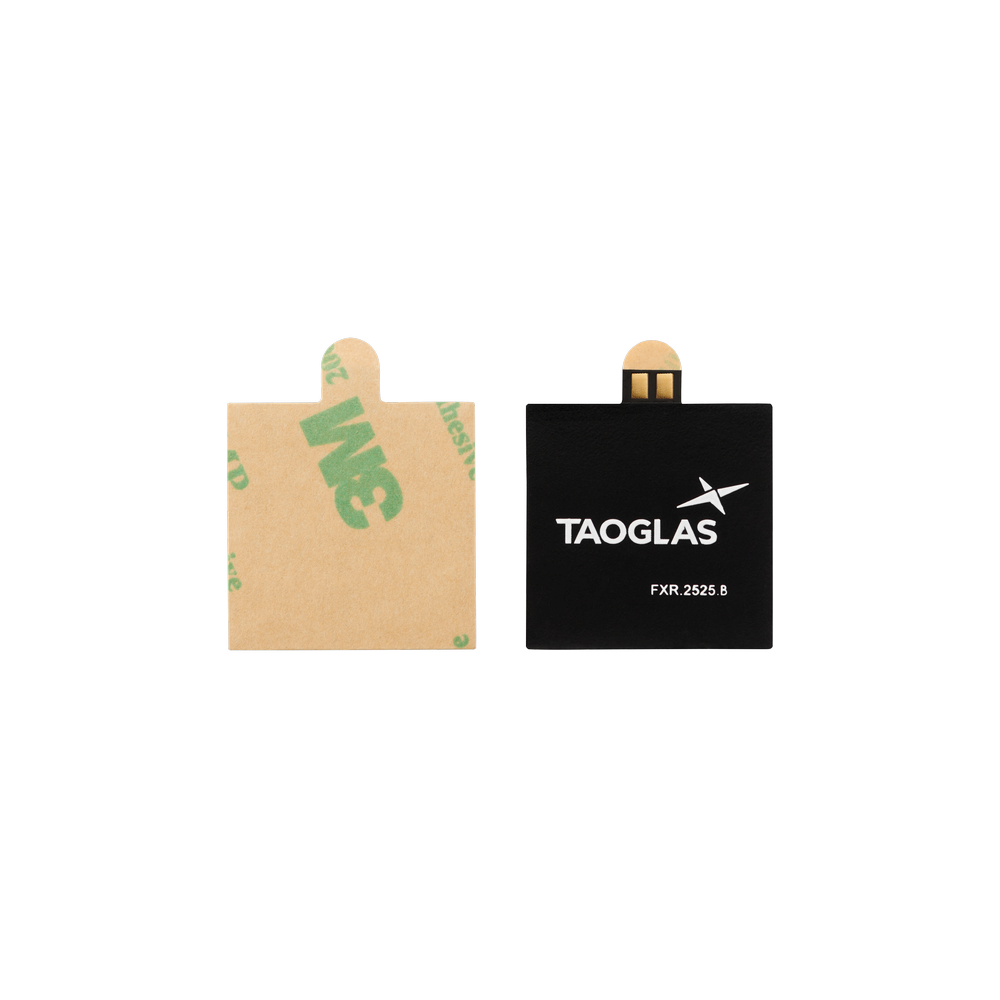

This flexible NFC antenna is designed for compact embedded devices operating at 13.56MHz. It features an upward-facing reverse ferrite flux director layer to help isolate the antenna from nearby components such as internal batteries, and an adhesive backing for fast integration inside plastic enclosures.
For best performance, avoid placing the antenna directly onto conductive surfaces without a ferrite layer, as this can reduce efficiency and cause communication performance issues.
Typical Applications
- Mobile devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Access Control
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
NFC
Frequency: 13.56 MHz
Impedance (Ohm): 50
La: 1.05 µH
Rs: 2.09 ohm
Q Factor: 42.47
Self-Resonance Frequency: 476 MHz
Rp: 83.19 kohm
Dimensions: 25*25*0.355 mm
Thickness: 0.355mm
Mechanical Style: Flex PCB with Ferrite
Adhesive: 3M467 or 3M9460
Connector Type: Contact pads (no cable)
Storage Temperature: -40°C to 85°C
Humidity: Non-condensing 65°C 95% RH
RoHS Compliant: Yes
