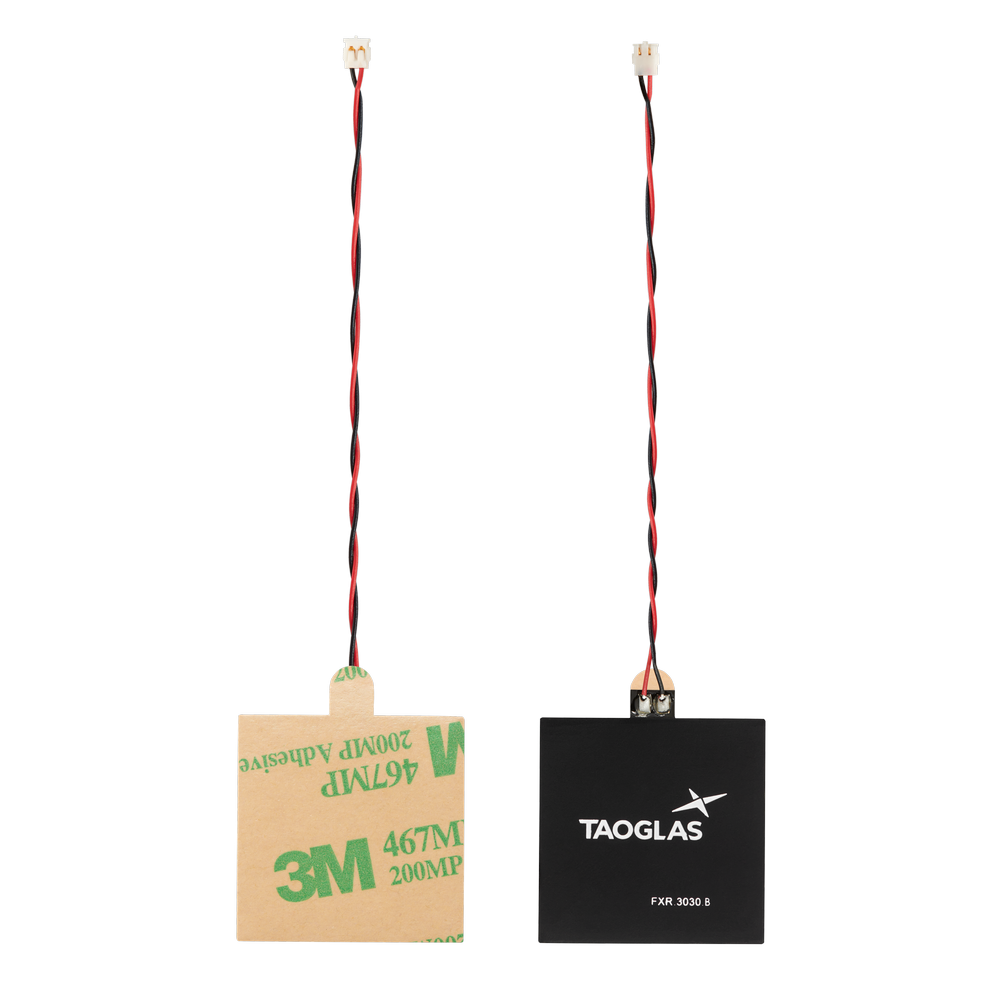

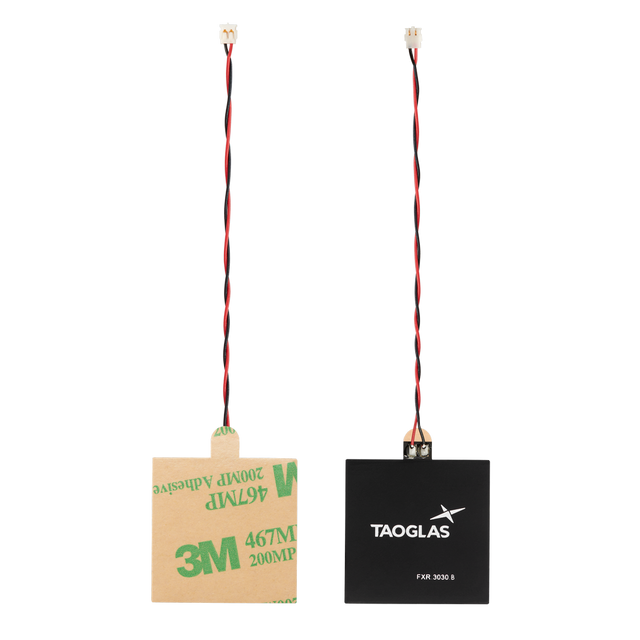

FXR.3030.52.0075X.B.DG Antenna Flexible Low-Profile Embedded NFC adhesive ACH(F) 7.5cm for Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This flexible embedded NFC antenna is designed for compact IoT and mobile device integrations where reliable near-field communication is required. The reverse ferrite layer helps reduce detuning and performance loss when the antenna is placed near batteries or other nearby electronics, while the adhesive backing supports fast internal placement inside plastic enclosures.

• Designed for NFC operation: Ideal for short-range tap-to-read and identification use cases
• Reverse ferrite layer: Helps provide isolation from conductive or noisy internal device components
• Flexible, low-profile format: Suitable for space-constrained product designs
• Adhesive-backed: Supports quick placement during assembly

Typical applications include: Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Access Control.

Connector & Cable

• Connector Type: ACH(F)
• Cable Length: 7.5cm
• Cable Type: Twisted Pair 28AWG - PVC

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Dimensions: 30*30*0.355 mm
Weight: 11.2g
Adhesive: 3M467 or 3M9460
Humidity: Non-condensing 65°C 95% RH
Storage Temperature: -40°C to 85°C

NFC

Frequency: 13.56 MHz
Impedance: 50Ω
Polarisation: Linear
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
La: 1.15 µH
Rs: 1.80 ohm
Q Factor: 53.57
Self-Resonance Frequency: 416 MHz
Rp: 59.95 kohm
