Description

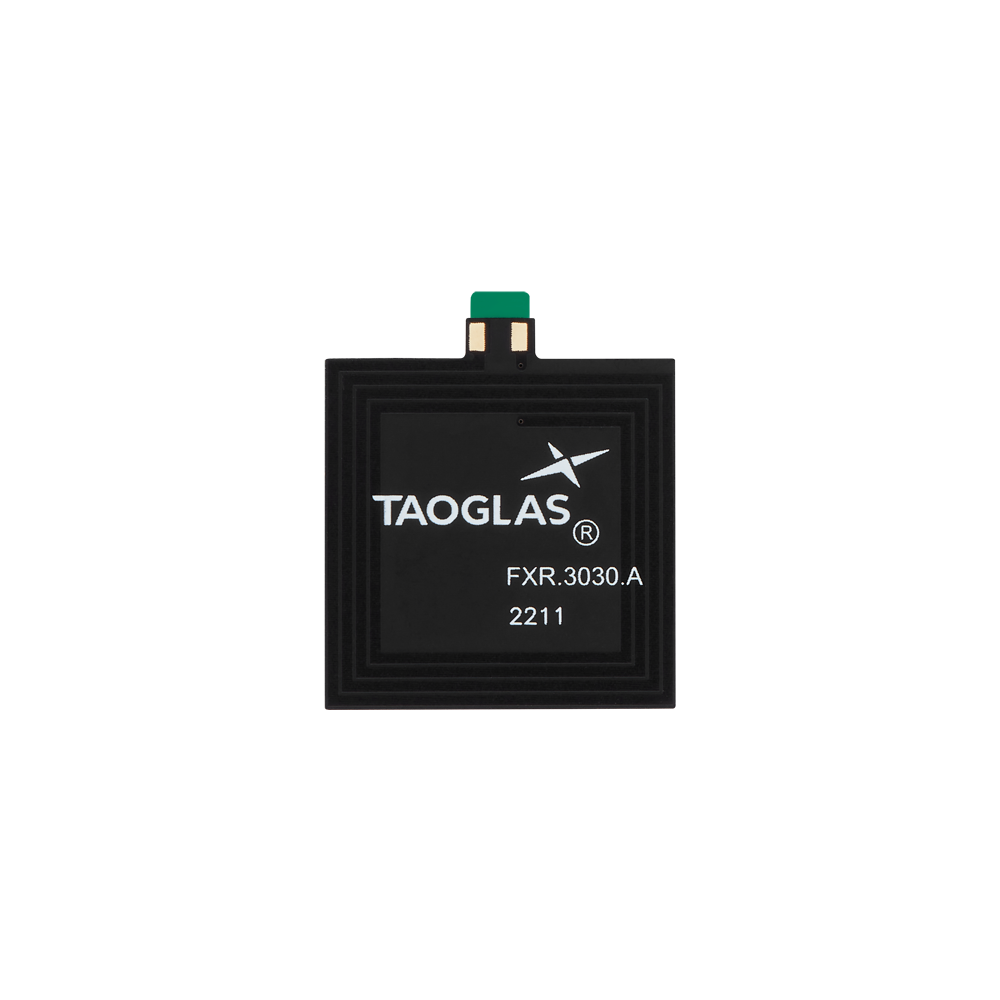

This compact, flexible NFC antenna is designed for two-way read/write operation at 13.56 MHz in embedded device environments. A ferrite flux director helps isolate the antenna from nearby batteries or electronics, helping maintain consistent communication performance. An adhesive backing supports fast internal placement inside plastic enclosures or onto internal assemblies.
- Flexible, low-profile form factor for space-constrained product designs
- Ferrite flux director to reduce detuning and losses when mounted near conductive components
- Adhesive backing for quick internal installation
- Plated contact pads for straightforward electrical integration
Typical applications include:
- Mobile Devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Access Control
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Loop
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Frequency: 13.56 MHz
Impedance: 50Ω
Mechanical Style: Flex PCB with Ferrite
Termination Style: SMD/SMT
Connector Type: Contact pads (no cable)
Dimensions: 30*30*0.355 mm
Thickness: 0.27 mm
Weight: 1 g
Adhesive: 3M467 or 3M9460
Storage Temperature: -40°C to 85°C
Humidity: Non-condensing 65°C 95% RH
RoHS Compliant: Yes
