Description

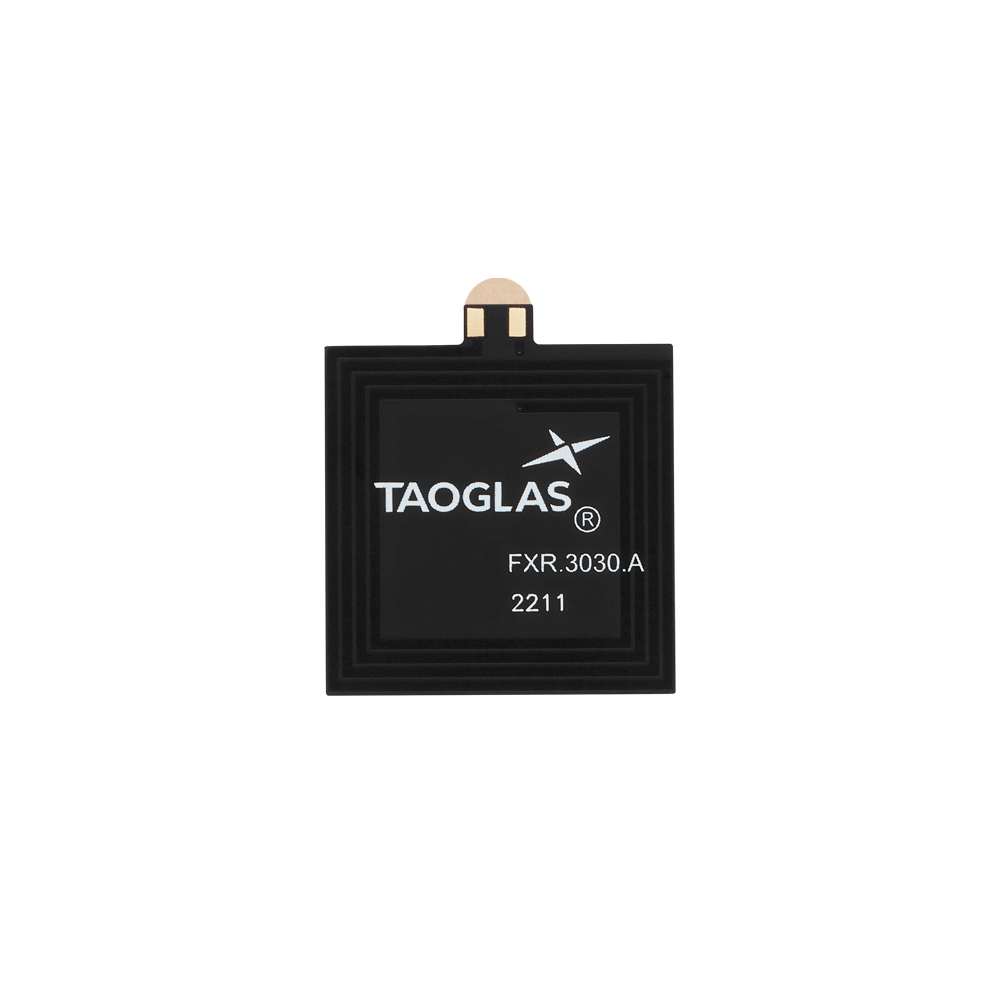

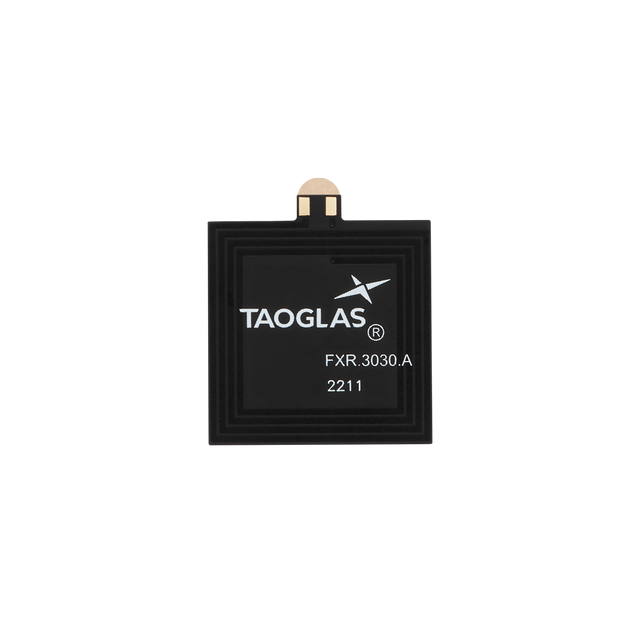

The FXR.3030.A is a compact, flexible NFC (Near Field Communications) antenna designed for two-way read/write operation at 13.56MHz. It features an adhesive backing for fast, straightforward integration inside devices and can be mounted inside a plastic enclosure or on an internal battery.
For battery-adjacent installations, variants with ferrite flux directors are available to help isolate the antenna from nearby electronics. Plated contact pads support integration using pogo pins or spring clips (such as CC.001). A variant with a twisted-pair cable and ACH(F) connector is also available for added installation flexibility.
Typical applications
- Mobile devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Access Control
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Technology: Embedded Antennas, NFC
Mechanical Style: Flex PCB
Termination Style: SMD/SMT
Impedance: 50Ω
Frequency: 13.56MHz
Length: 30 mm
Width: 30 mm
Height: 0.14 mm
Weight: 1 g
RoHS: Yes
