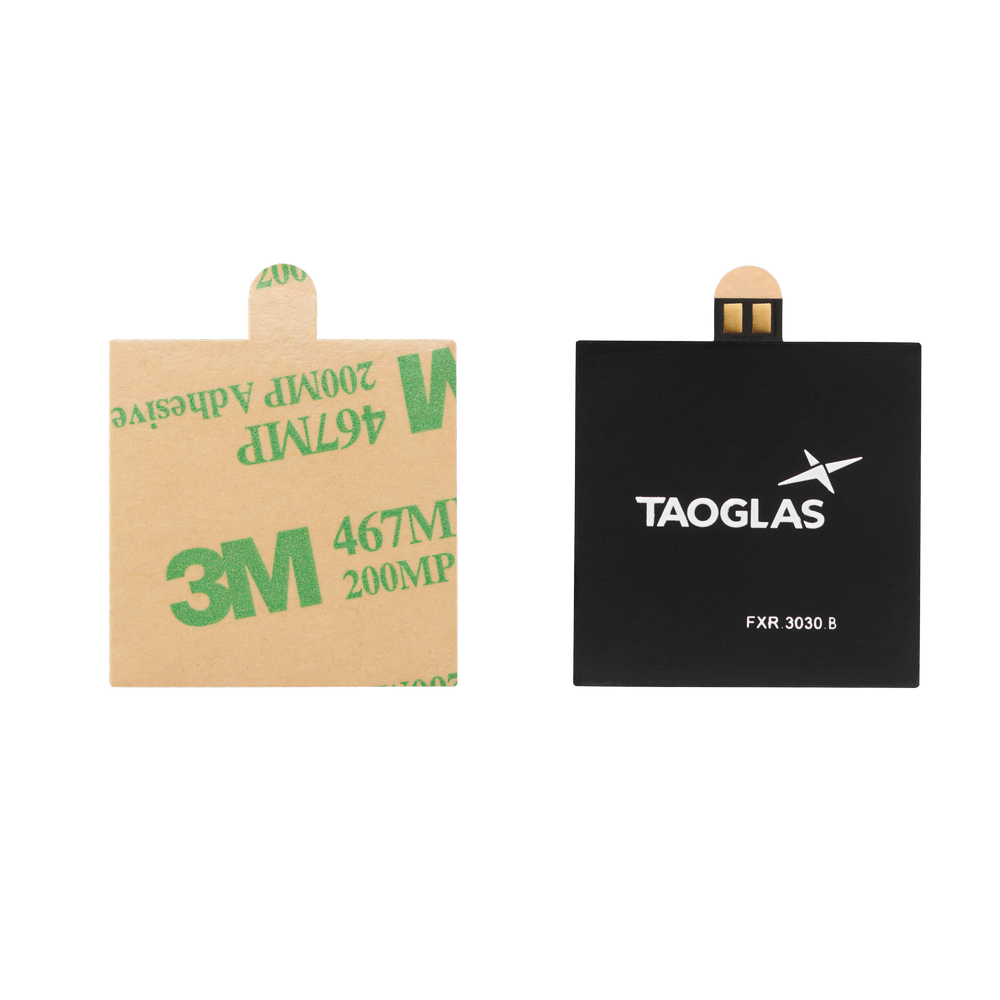

FXR.3030.B.DG Antenna NFC 13.56MHz flex adhesive Contact Pads for Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

Flexible NFC antenna designed for compact, embedded device integration at 13.56MHz. The low-profile flex construction with a reverse ferrite layer helps reduce performance loss when placed near batteries or other conductive components, while the adhesive backing enables quick placement inside enclosures.

• Optimized for embedded NFC use: ideal for space-constrained product designs
• Reverse ferrite layer: helps provide isolation from nearby components (e.g., batteries)
• Adhesive backing: peel-and-stick installation for faster assembly
• Use cases: contactless systems, access control, and device identification/tracking implementations

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount, SMD/SMT Mount
Type: Single
Frequency: 13.56 MHz
Impedance: 50Ω
Mechanical Style: Flex PCB with Ferrite
Dimensions: 30*30*0.355 mm
Weight: 9.4g
Adhesive: 3M467 or 3M9460
RoHS Compliant: Yes

NFC

Frequency: 13.56 MHz
La: 1.08 µH
Rs: 1.90 ohm
Q Factor: 47.96
Self-Resonance Frequency: 430 MHz
Rp: 81.22 kohm
Connector Type: Contact pads (no cable)
