Description

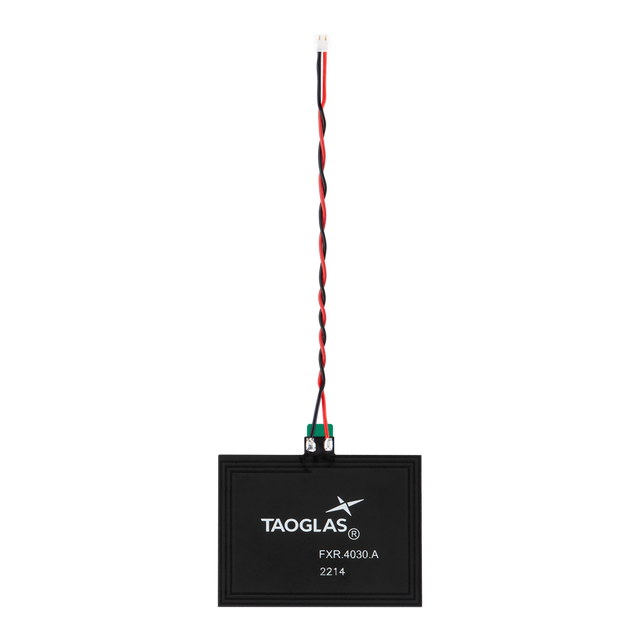

This flexible embedded NFC antenna is designed for two-way read/write operation at 13.56MHz. Its compact rectangular form factor and peel-and-stick adhesive backing support quick integration inside plastic device enclosures, while the ferrite flux director helps isolate the antenna from nearby components such as internal batteries to maintain reliable communication performance.
Ideal for space-constrained products requiring consistent near-field coupling in everyday use cases.
Typical Applications
- Mobile Devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Air cargo tracking
- Access Control and Electronic Keys
Connector & Cable
- Connector Type: ACH(F)
- Cable Length: 7.5cm
- Cable Type: Twisted Pair 28AWG - PVC
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Dimensions: 40*30*0.355mm
Thickness: 0.27 mm
Weight: 1 g
Mechanical Style: Flex PCB with Ferrite
Termination Style: Connector
RoHS Compliant: Yes
NFC
Frequency: 13.56 MHz
Impedance: 50Ω
Polarization: Linear
La: 1.08 µH
Rs: 1.67 ohm
Q Factor: 55.1
Self-Resonance Frequency: 75.7 MHz
Rp: 4.7 kohm
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
