Description

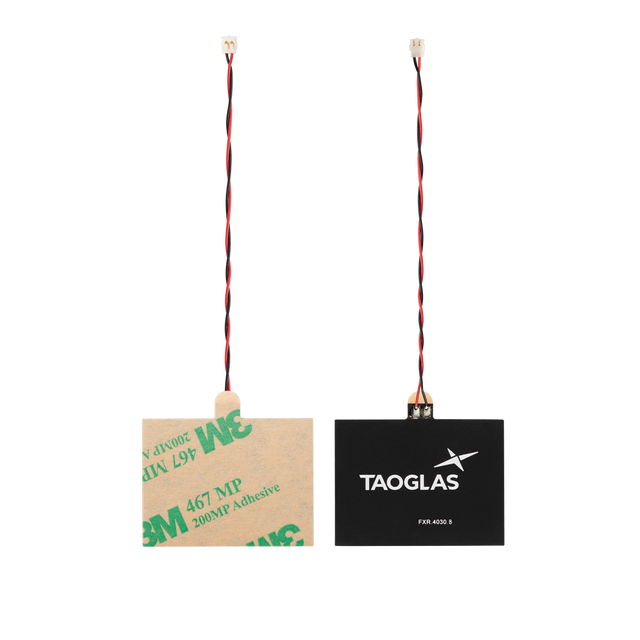

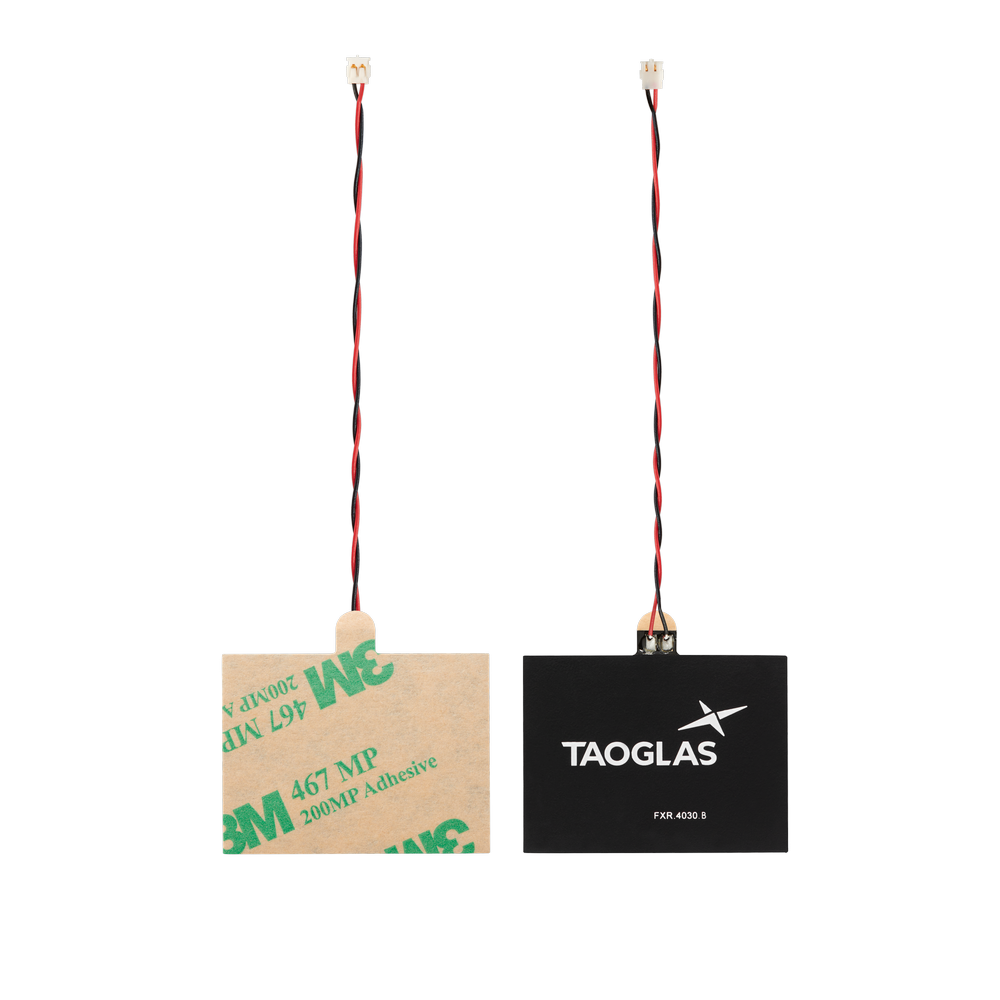

This flexible NFC antenna is designed for compact embedded device integration where reliable 13.56MHz near-field communication is required. The reverse ferrite layer helps reduce detuning and loss when the antenna is placed near batteries or other electronics, while the adhesive backing supports quick internal mounting inside plastic enclosures.
- 13.56MHz NFC operation for short-range communication use cases
- Reverse ferrite layer to improve performance near conductive or noisy internal components
- Flexible, low-profile format suited to space-constrained devices
- Adhesive backing for fast internal placement on device surfaces or internal batteries
Typical use cases: mobile devices, wearable smart devices, payment terminals, device tracking and ID systems, access control.
Connector & Cable
- Connector Type: ACH(F)
- Cable Length: 7.5cm
- Cable Type: Twisted Pair 28AWG
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Dimensions: 40*30*0.355mm
Weight: 13 g
RoHS Compliant: Yes
NFC
Frequency: 13.56 MHz
Impedance: 50Ω
Polarisation: Linear
La: 1.09 µH
Rs: 1.88 ohm
Q Factor: 48.16
Self-Resonance Frequency: 384 MHz
Rp: 33.60 kohm
Adhesive: 3M467 or 3M9460
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
Humidity: Non-condensing 65°C 95% RH
Storage Temperature: -40°C to 85°C
