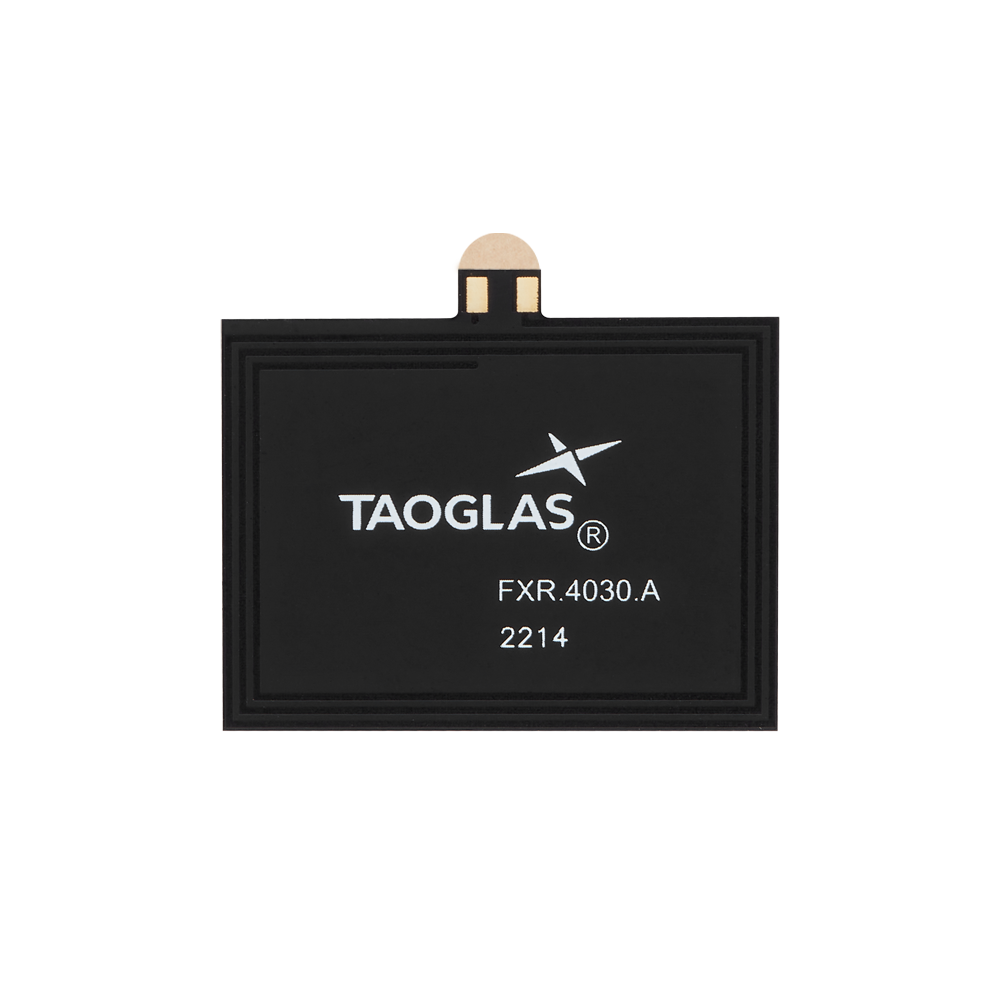

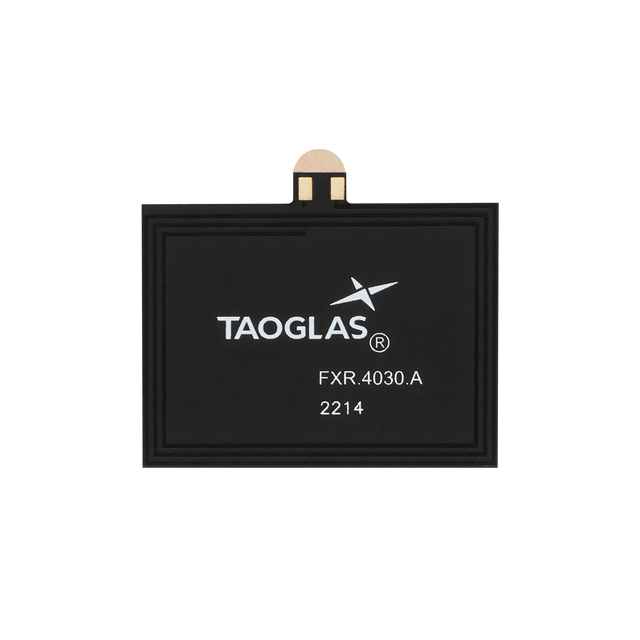

FXR.4030.A Antenna NFC 13.56MHz flex adhesive Contact Pads for Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This compact flexible NFC (Near Field Communications) antenna is designed for high-performance two-way read/write operation at 13.56MHz. Its low-profile flexible construction and adhesive backing help simplify integration into space-constrained devices.

• 13.56MHz NFC operation: Optimized for short-range communication use cases such as identification and access interactions.
• Flexible, low-profile format: Suitable for integration inside plastic device enclosures or placement on internal components.
• Adhesive-backed mounting: Enables fast placement during assembly.
• Integration-friendly termination: Plated contact pads support straightforward connection to host electronics using suitable contacts (e.g., pogo pins or spring clips).
• Ferrite-layer variants available: Options are available to help reduce performance losses when the antenna is placed near batteries or other conductive components.

Typical applications

• Mobile devices
• Wearable Smart Devices
• Payment Terminals
• Device tracking and ID systems
• Access Control

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive
Short-Range Wireless Standards: NFC
Type: Single
Mechanical Style: Flex PCB
Termination Style: SMD/SMT
RoHS Compliant: Yes
Length: 40 mm
Width: 30 mm
Height: 0.14 mm
Weight: 1 g

NFC (Near Field Communications)

Frequency: 13.56 MHz
Impedance: 50Ω
Connector Type: Contact pads (no cable)
Inductance (La): 0.73 µH
Series Resistance (Rs): 1.02 ohm
Q Factor: 61
Self-Resonance Frequency: 144.7 MHz
Parallel Resistance (Rp): 13.4 kohm

Download Datasheet PDF
