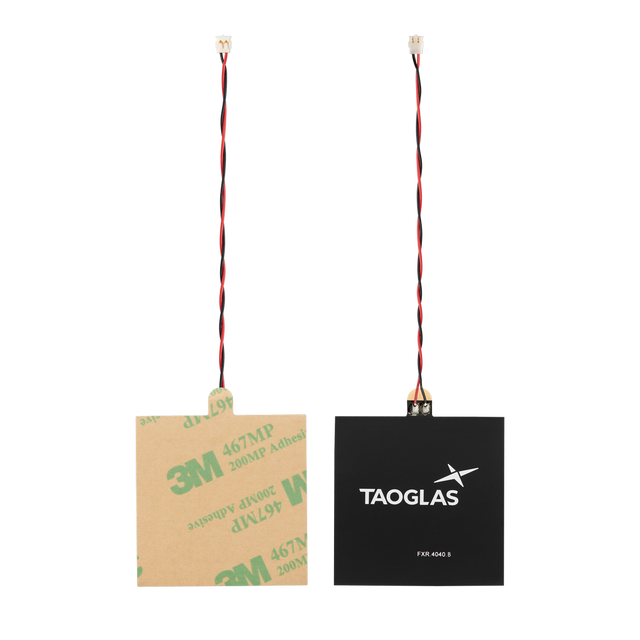

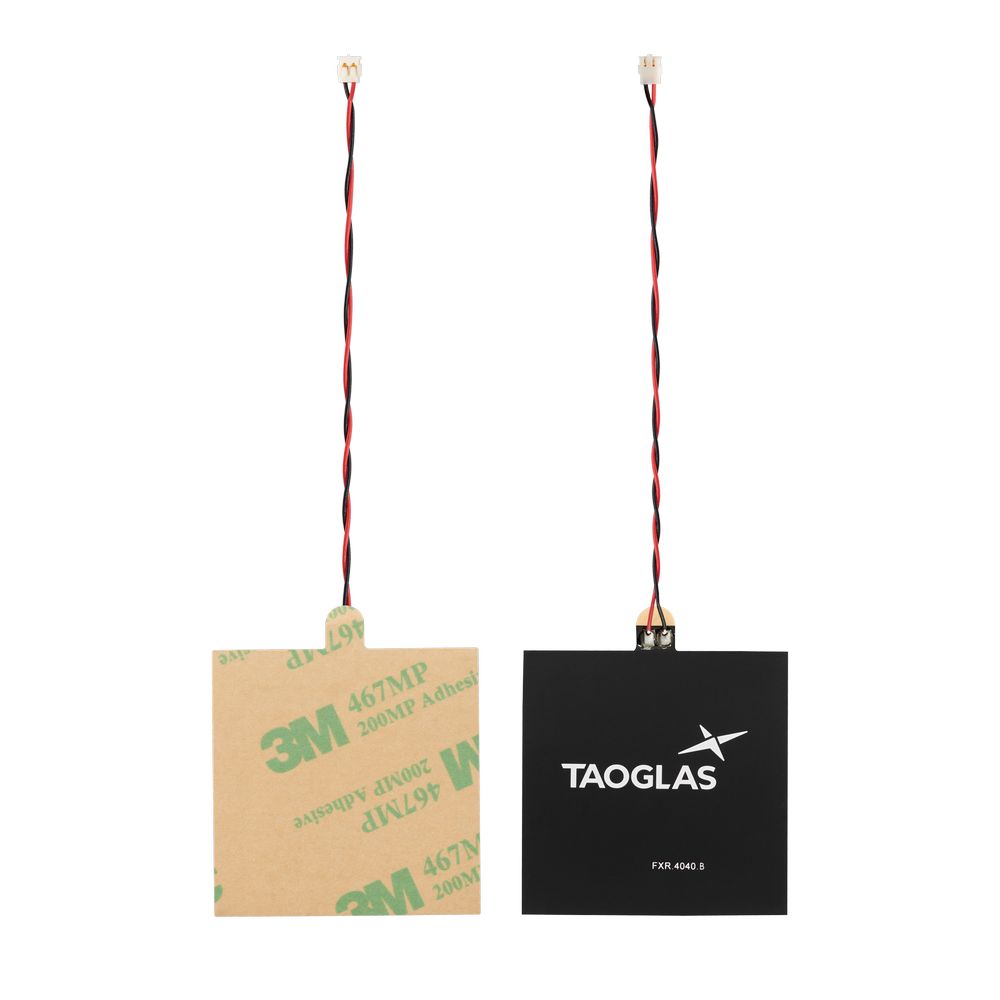

FXR.4040.52.0075X.B.DG Antenna Flexible Low-Profile NFC adhesive flex ACH(F) 7.5cm for Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems

This flexible NFC antenna is designed for compact embedded device integration where reliable 13.56MHz near-field communication is required. The reverse ferrite layer helps provide isolation from nearby components (such as batteries or other electronics) to support stable communication performance in challenging device environments.

• Flexible, low-profile embedded design suited to space-constrained products
• Reverse ferrite layer to help reduce detuning and losses near conductive or noisy components
• Peel-and-stick adhesive backing for fast internal installation

Typical applications include: Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Access Control.

Connections

NFC 13.56 MHz

Connector & Cable

• Connector Type: ACH(F)
• Cable Length: 7.5cm
• Cable Type: Twisted Pair 28AWG - PVC

Technical Specifications

Operating Temperature: -40 C to 85 C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Dimensions: 40*40*0.355 mm
Thickness: 0.355mm
Weight: 17.2 g
Storage Temperature: -40 C to 85 C
Humidity: Non-condensing 65 C 95% RH
RoHS Compliant: Yes
Adhesive: 3M467 or 3M9460

NFC

Frequency: 13.56 MHz
Impedance: 50 9
Polarization: Linear
La: 1.09 5H
Rs: 1.56 ohm
Q Factor: 57.93
Self-Resonance Frequency: 363 MHz
Rp: 38.77 kohm
Connector Type: ACH(F)
Cable Length: 7.5cm
Cable Type: Twisted Pair 28AWG - PVC
