Description

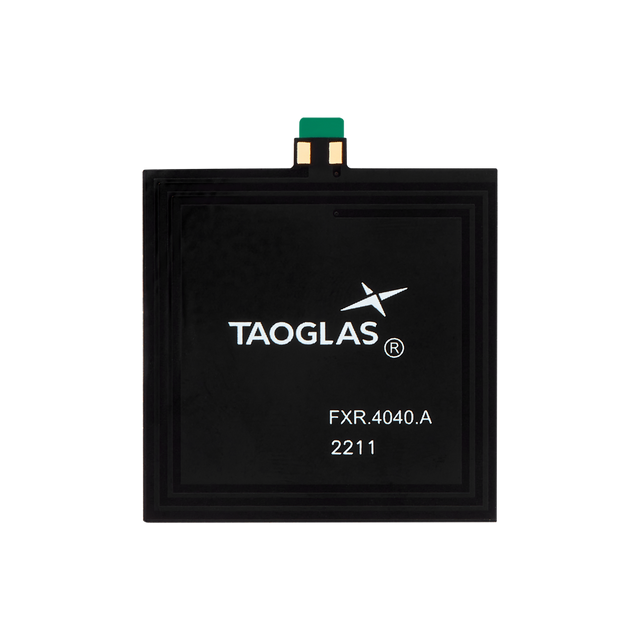

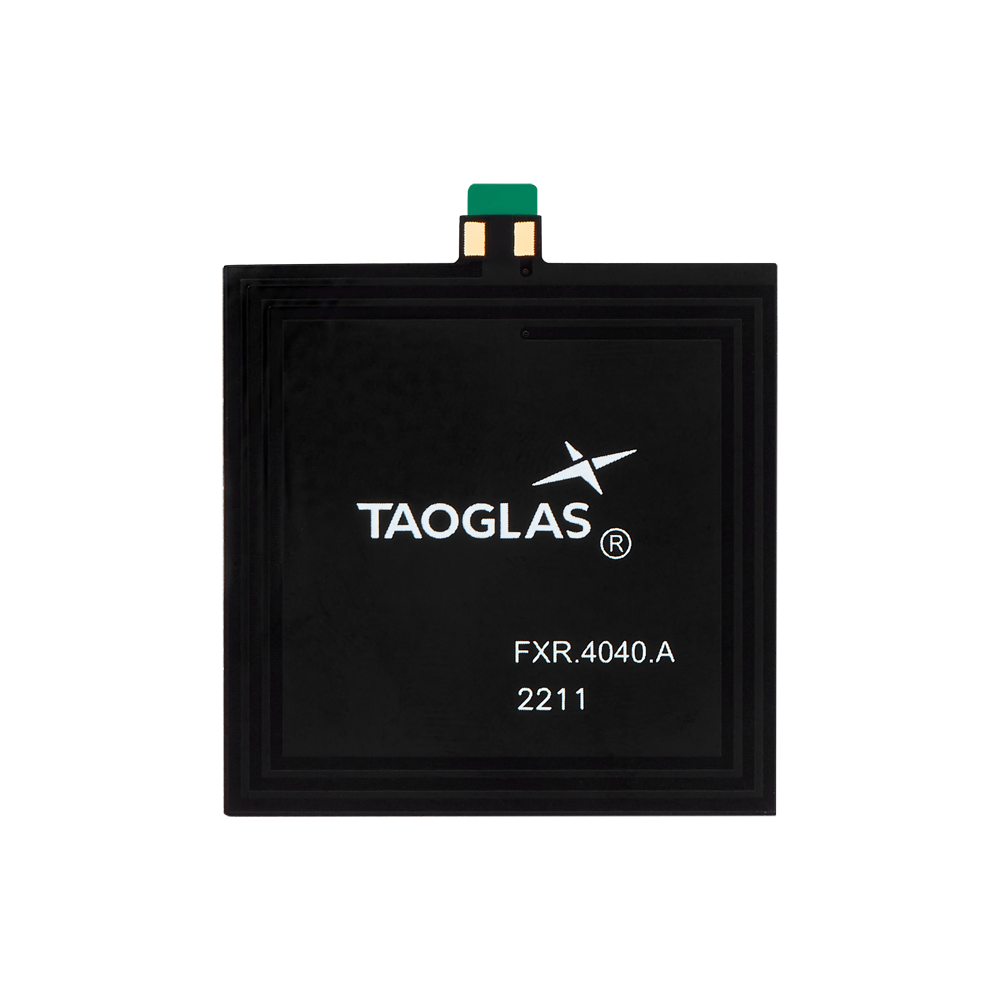

This compact, flexible NFC antenna is designed for reliable two-way read/write operation at 13.56MHz in embedded device designs. A ferrite flux director helps isolate the antenna from nearby electronics such as batteries, while the peel-and-stick adhesive backing supports fast internal integration in plastic enclosures.
- Embedded NFC performance: tuned for 13.56MHz applications
- Flexible, low-profile format: fits space-constrained product housings
- Ferrite isolation layer: helps reduce detuning when placed near conductive or electronic components
- Adhesive backing: quick internal placement during assembly
Typical use cases: Mobile devices, Wearable Smart Devices, Payment Terminals, Device tracking and ID systems, Access control.
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Dimensions: 40*40*0.355 mm
Thickness: 0.27 mm
Weight: 1 g
RoHS Compliant: Yes
NFC
Frequency: 13.56 MHz
Impedance: 50Ω
Mechanical Style: Flex PCB with Ferrite
Termination Style: SMD/SMT
Connector Type: Contact pads (no cable)
Cable Length: None
La: 1.0 µH
Rs: 1.62 ohm
Q Factor: 52.6
Self-Resonance Frequency: 103.6 MHz
Rp: 3.64 kohm
Storage Temperature: -40°C to 85°C
Humidity: Non-condensing 65°C 95% RH
