Description

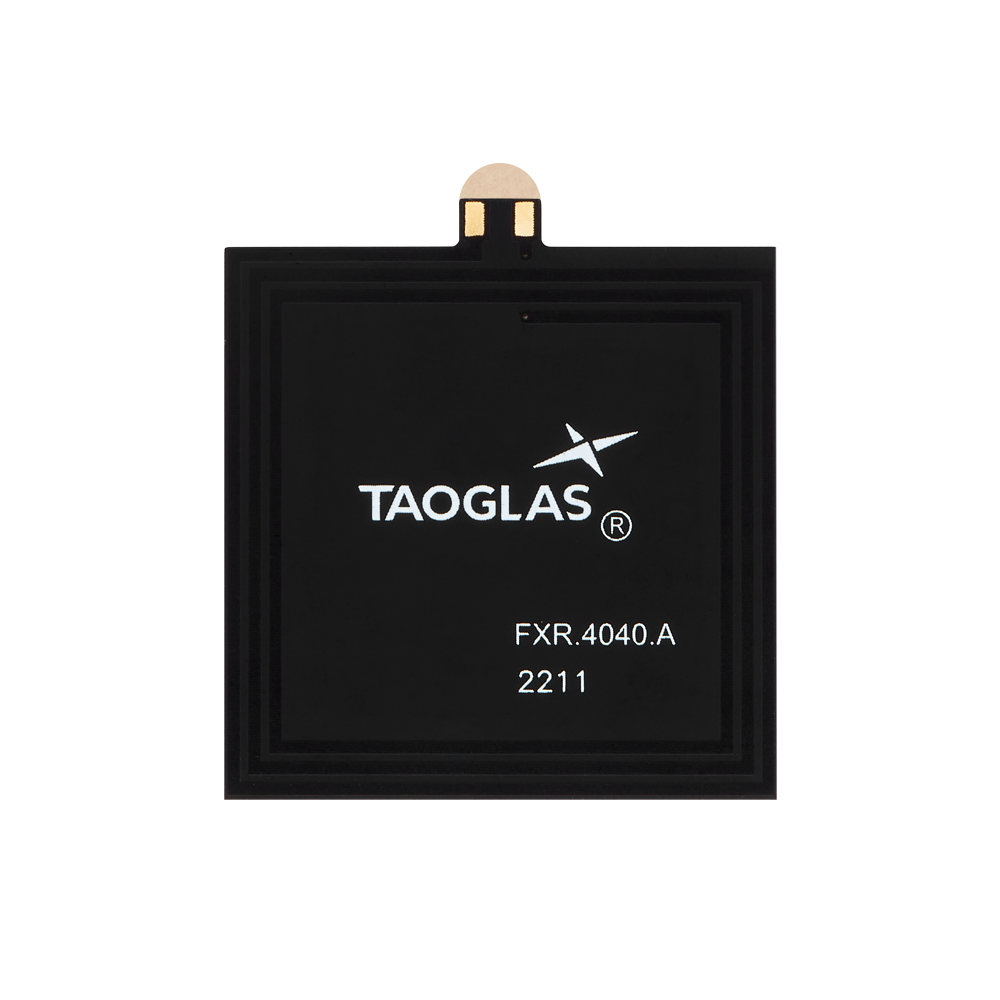

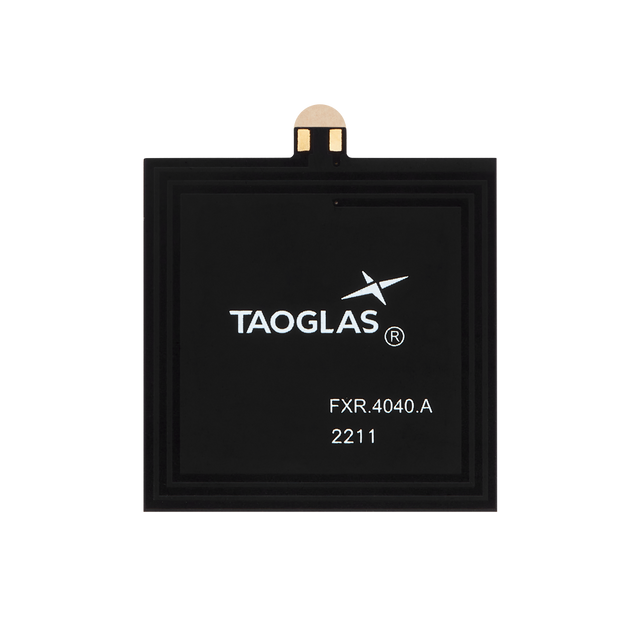

Flexible NFC antenna designed for reliable two-way read/write operation at 13.56MHz in compact device designs.
- Flexible, low-profile format for embedded integration
- Adhesive backing for quick placement inside an enclosure
- Suitable for mounting inside plastic device housings or on an internal battery (ferrite-backed variants are available for improved isolation in challenging environments)
Typical applications
- Mobile devices
- Wearable Smart Devices
- Payment Terminals
- Device tracking and ID systems
- Access Control
Customization for specific shapes and impedance matching may be available (subject to NRE and MOQ).
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: NFC
Type: Single
Frequency: 13.56MHz
Impedance: 50Ω
Mechanical Style: Flex PCB
Termination Style: SMD/SMT
Connector Type: Contact pads (no cable)
Length (mm): 40
Width (mm): 40
Height (mm): 0.27
Weight: 1g
RoHS: Yes
