Description

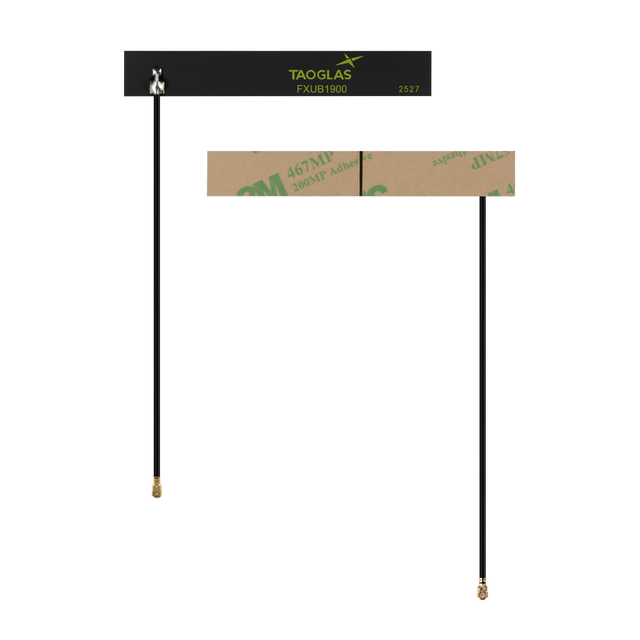

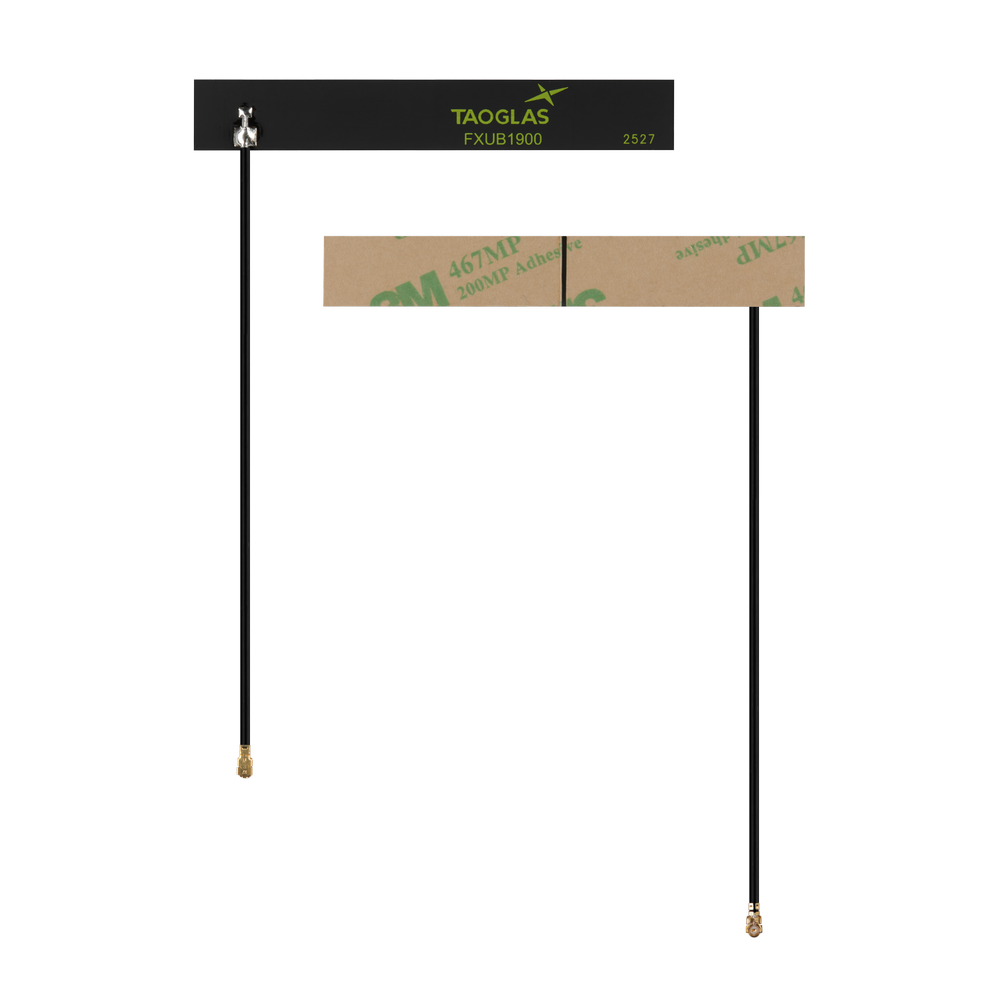

The FXUB1900 is an ultra-thin, flexible PCB antenna designed for ADS-B (Automatic Dependent Surveillance Broadcast) systems. It supports both 1090 ES and 978 UAT bands to enable robust aircraft tracking performance in worldwide deployments.
Its lightweight, mechanically adaptable construction is designed for integration into compact housings or surfaces where rigid PCB antennas are not suitable. An adhesive backing helps enable quick, secure placement while maintaining stable omnidirectional coverage with linear polarization.
Typical applications include:
- ADS-B (Automatic Dependent Surveillance–Broadcast) Ground Stations
- Unmanned Aerial Vehicles (UAVs)
- Avionics and Air Traffic Management Systems
- IoT Tracking and Monitoring Devices
- Transportation and Logistics Infrastructure
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL COMP)
- Cable Length: 10cm
- Cable Type: 1.37 Coaxial (Black)
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Dimensions: 80mm x 12mm x 0.24mm
Weight: 0.9g
ADS-B (978/1090 MHz)
Frequency: 973-983 MHz, 1085-1095 MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Radiation Pattern: Omni directional
Max. Input Power: 5W
Peak Gain (dBi): 1.52 (978 MHz), 1.66 (1090 MHz)
Average Gain (dB): -1.98 (978 MHz), -2.07 (1090 MHz)
Efficiency (%): 63.4 (978 MHz), 62.1 (1090 MHz)
Connector Type: I-PEX MHF I (U.FL COMP)
Cable Length: 10cm
Cable Type: 1.37 Coaxial (Black)
