Description

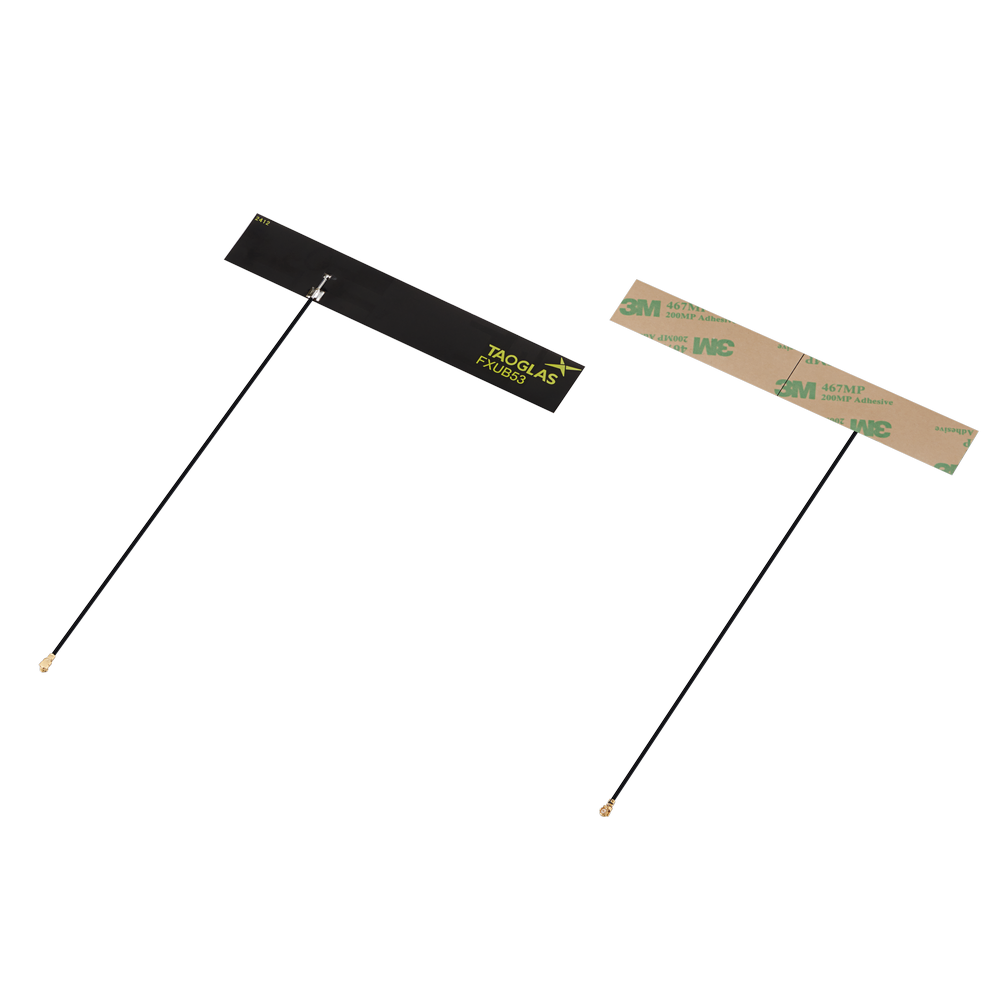

This super small flexible wideband antenna is designed to cover the 600–6000 MHz spectrum, helping designers add reliable multi-band connectivity to compact devices where space is limited.
Built on a flexible PCB, it supports a broad range of wireless technologies and is intended for in-device use on non-metal surfaces such as plastic enclosures or glass. A simple peel-and-stick installation helps speed integration and reduce design complexity when targeting global band coverage.
Typical applications include:
- IoT and Connected Devices
- UAVs and Autonomous Vehicles
- Industrial Robotics and Automation
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL Compatible)
- Cable Length: 15cm
- Cable Type: 1.37 Coax
Technical Specifications
Operating Temperature: -40C to 85C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, ZigBee, ISM
Type: Single
Dimensions: 120*20*0.2mm
Weight: 1.7g
Material: Flexible Polymer
Relative Humidity: 40% to 95%
5G/4G Wideband (Cable Feed)
Frequency: 600MHz - 6000MHz
Standards: 5G/4G (fallback to 3G/2G), NB-IoT, Cat-M, Wi-Fi, ISM
Impedance: 50
0a9
VSWR: 2:1
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Gain (Max): 7.18
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 15cm
Cable Type: 1.37 Co-axial
