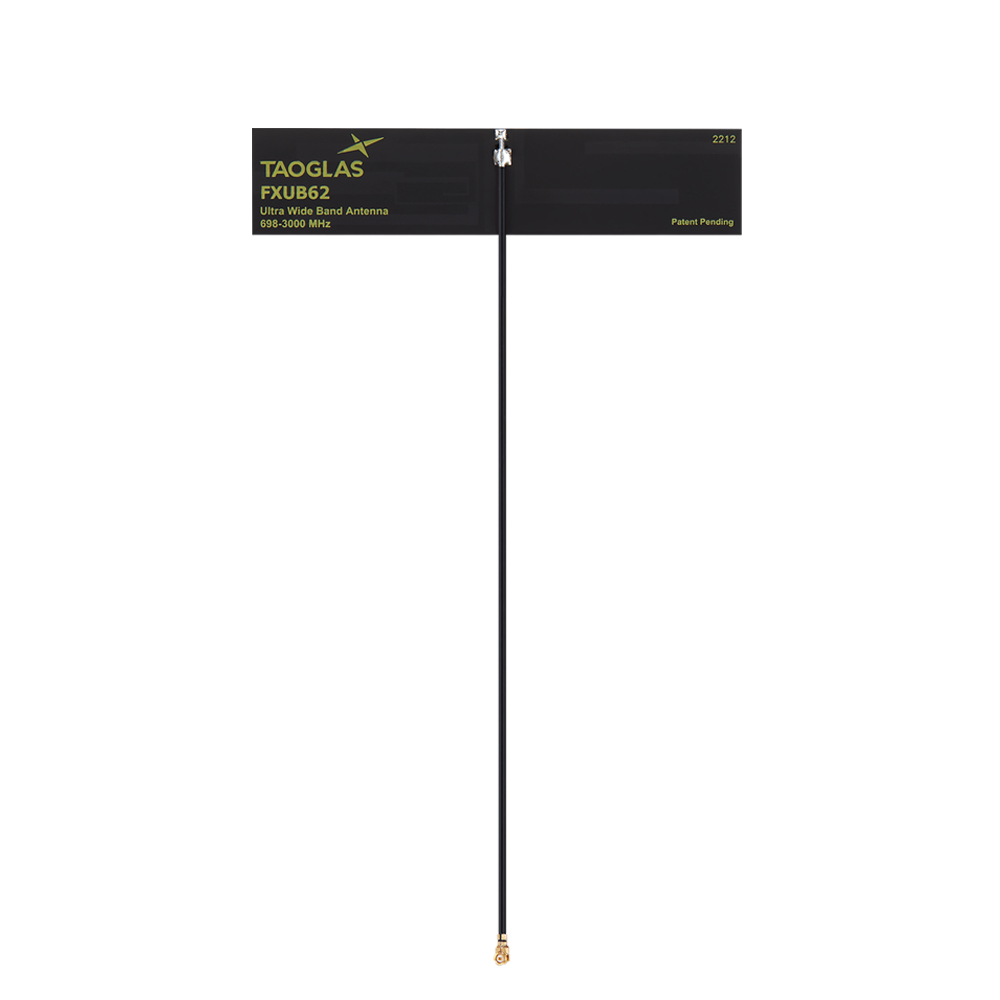

FXUB62.07.0150C Antenna Wideband 4G/LTE, GNSS, Wi-Fi, ISM flex PCB adhesive I-PEX MHF I 15cm for Wearable Healthcare Devices, Point of Sale Terminals, Handheld Devices, NTN Devices

The FXUB62 is a flexible wideband antenna designed to cover working frequencies across the 698 63000 0MHz spectrum, supporting Cellular alongside 2.4 0GHz Wi-Fi, ISM, and A-GPS use cases. Its ultra-thin flexible polymer construction and ground-plane-independent design help simplify integration into compact devices.

• Wideband coverage: supports common LTE frequency ranges with additional support for 2.4 0GHz Wi-Fi/ISM and A-GPS use cases
• Easy integration: simple peel-and-stick attachment to non-metal surfaces using adhesive backing
• Design-friendly: ground-plane-independent performance for more flexible product layouts
• Use cases: wearable healthcare devices, point of sale terminals, handheld devices, and NTN device designs

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL compatible)
• Cable Length: 15cm
• Cable Type: 1.37 mini coax

Installation / Environmental

Cables and Connectors are fully customizable. Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency. For further information, please contact your regional customer support team.

Technical Specifications

Operating Temperature: -40 a0 b0C to 85 a0 b0C
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Single
Dimensions: 96*21*0.2 mm
Weight: 2g

4G/LTE Wideband (Single Feed)

Frequency: 698MHz - 3000 MHz
Impedance: 50a9
Polarization: Linear
Radiation Pattern: Omni
VSWR: 2.5
Gain (Max): 5 dBi
Efficiency: >45%
Input Power: 5W Max
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 15cm
Cable Type: 1.37 mm mini coax
