Description

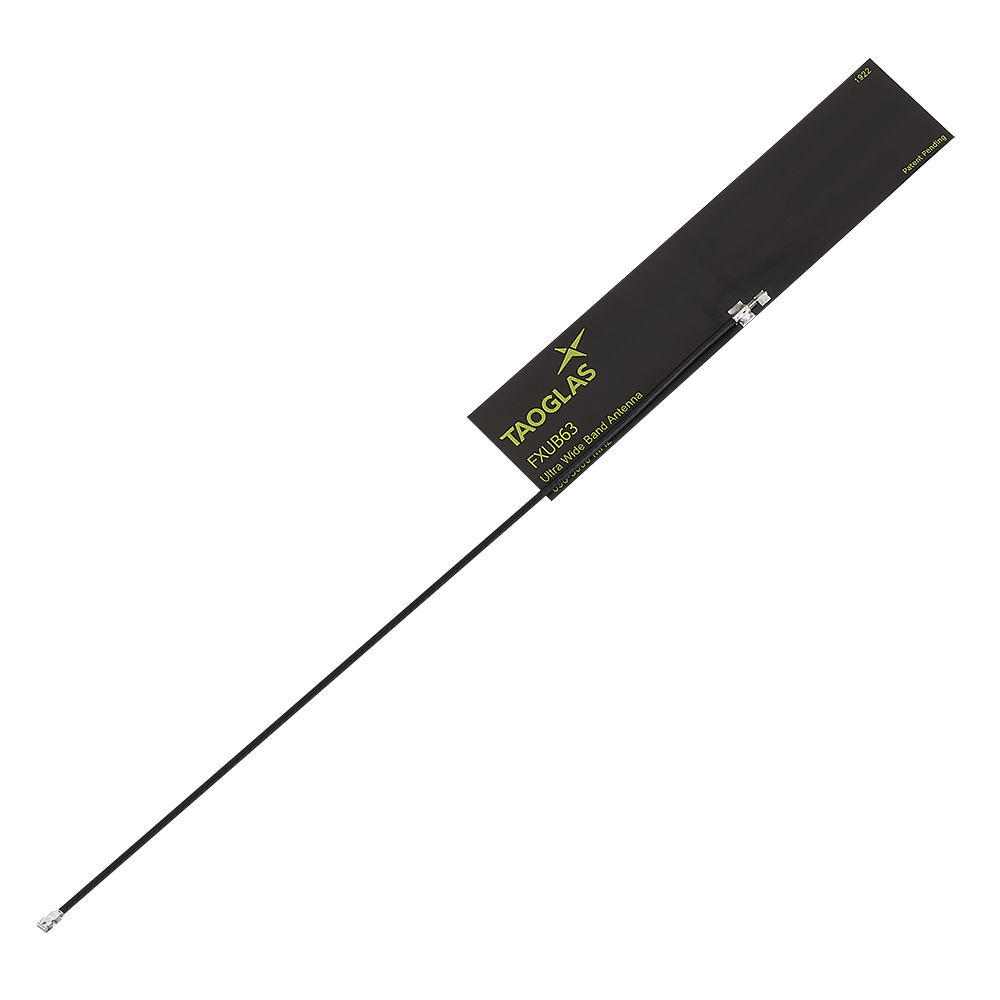

This patent pending flexible wideband antenna is designed to cover key frequencies across the 698–3000MHz spectrum, supporting Cellular plus 2.4GHz Wi-Fi and ISM use cases, as well as A-GPS reception.
- Wideband coverage: Supports a broad frequency span to simplify designs needing multi-band connectivity.
- Ground plane independent: Helps maintain performance across a variety of non-metal installation surfaces.
- Flexible and ultra-thin form factor: Built for compact devices where traditional antenna structures are difficult to accommodate.
- High efficiency and gain: Designed for strong RF performance across covered bands.
Connector & Cable
- Connector Type: I-PEX MHF-4L
- Cable Length: 15cm
- Cable Type: 1.37 Coax
Installation / Environmental
It is assembled by a simple “peel and stick†process, attaching securely to non-metal surfaces via 3M adhesive.
Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency. Cable length and connector type are fully customizable, for further information please contact your regional customer support team.
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Single
Dimensions: 96*21*0.2 mm
Weight: 2g
Wideband (Cellular, GNSS, Wi-Fi/ISM)
Frequency: 698-3000 MHz
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
VSWR: 3:1
Gain (Max): 5 dBi
Input Power: 5W Max
Connector Type: I-PEX MHF-4L
Cable Length: 15cm
Cable Type: 1.37 Coax
