Description

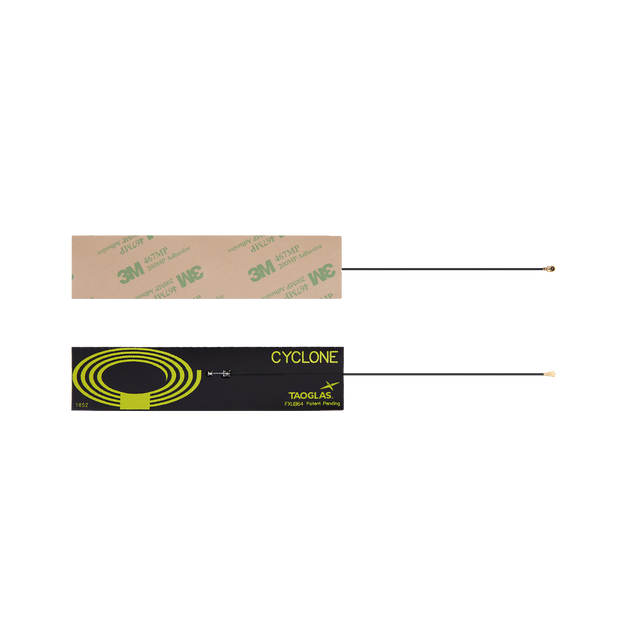

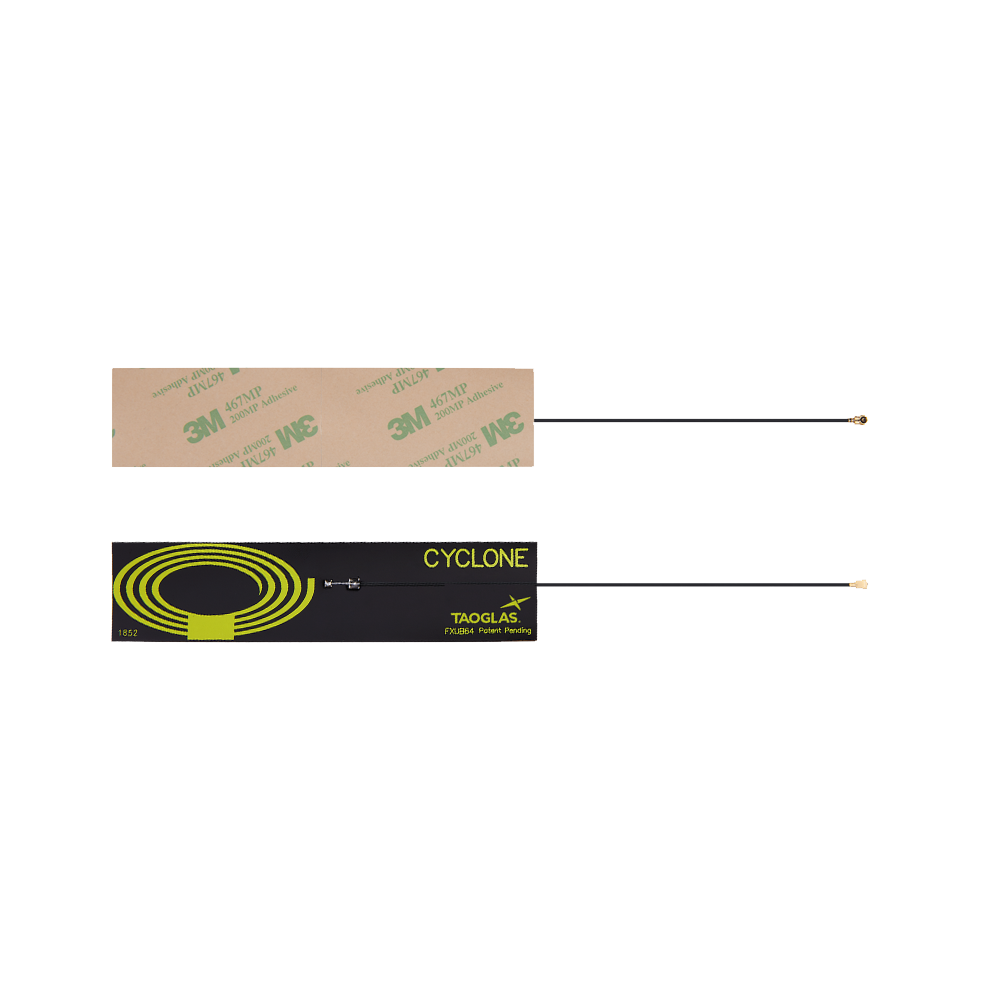

This flexible wideband antenna is designed for compact embedded devices that need reliable coverage across common cellular bands, including LTE Band 71, plus 2.4GHz Wi-Fi and ISM applications. The ultra-thin flex construction supports cost-effective integration while maintaining strong efficiency across the operating range.
- Wideband coverage: Supports operation across 600–3000 MHz
- Flexible, ultra-thin form factor: Designed to integrate into space-constrained enclosures
- Peel-and-stick mounting: Enables fast assembly onto non-metal surfaces
- Supports IoT connectivity: Suitable for NB-IoT and Cat-M designs
- NTN support: Recommended for NTN devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America)
Typical applications include: Remote Monitoring, POS (Point of Sales) Systems, In-building Communications Continuity.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 15cm
- Cable Type: 1.13mm coax
Installation / Environmental
It is assembled by a simple “peel and stick†process, attaching securely to non-metal surfaces via 3M adhesive.
Cables and Connectors are customizable. Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency.
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M1
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Single
Dimensions: 130*30*0.2 mm
Weight: 2.4 g
5G/4G Cellular, Wi-Fi/ISM (Wideband)
Frequency: 600MHz - 3000MHz
Tested Frequencies (MHz): 617-960; 1575.42; 1710-1990; 1755-2170; 2400-2500; 2500-2690
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA; NB-IoT; CAT-M1; 2.4GHz Wi-Fi®; ISM; AGPS
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
Input Power: 50 W
VSWR: 1.5
Gain (Max): 6 dBi
Peak Gain (dBi): 3.5, 4.5, 6.0, 6.0, 3.7, 2.3
Efficiency (%): 50, 59, 70, 68, 57, 47
Material: Flexible Polymer
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 15cm
