Description

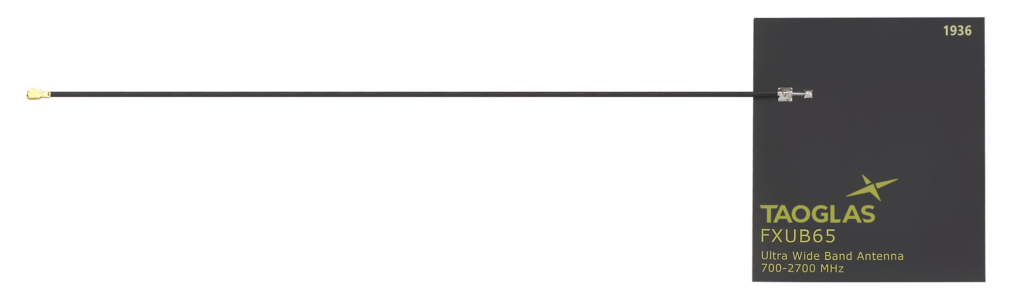

Minima FXUB65 is a compact, ultra-thin flexible wideband antenna designed to cover worldwide cellular bands across 4G, while also supporting 3G and 2G operation.
- Wideband cellular coverage: designed for 700–2700 MHz applications
- Flexible, space-saving design: supports integration into slim product enclosures
- Isotropic radiation pattern: helps deliver consistent performance across target bands
- Simple integration: peel-and-stick mounting onto non-metal surfaces with adhesive backing
It is intended to mount directly onto plastic or glass covers, and is designed with excess bandwidth to help reduce sensitivity to variation in plastic thickness. For best integration, the antenna performs well when placed with clearance (typically around 20 mm) from ground.
Connector & Cable
- Connector Type: I-PEX MHF I
- Cable Length: 18cm
- Cable Type: 1.37 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
Frequency: 698MHz - 2690MHz
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Dimensions: 67.0 x 58.0 x 0.2 mm
Weight: 5g
