Description

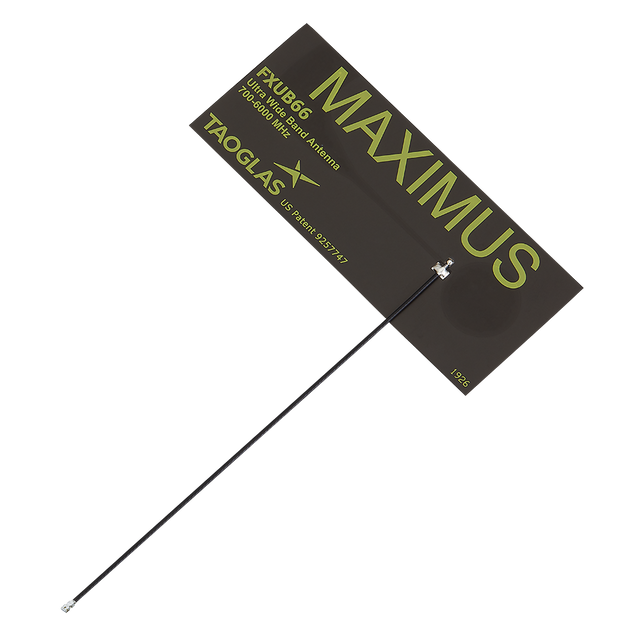

Maximus is an ultra-thin, flexible wideband antenna designed to cover 600MHz–8000MHz, enabling a single embedded antenna solution for modern broadband devices.
- Wideband coverage: Supports sub-8GHz operation for 5G/4G/3G/2G and additional bands used by Wi-Fi®, ISM, and GNSS.
- Ground-plane independent design: Helps maintain performance across a variety of device enclosures.
- Peel-and-stick installation: Flexible construction designed to mount directly onto plastic or glass surfaces using adhesive for fast integration.
- Future-proof design: Intended to help simplify device designs that may be upgraded to different frequency bands over a product’s lifetime.
Connector & Cable
- Connector Type: I-PEX MHF-4L
- Cable Length: 15cm
- Cable Type: 1.37 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ZigBee, ISM
Type: Single
Frequency: 600MHz - 8000MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 5 dBi
Radiation Pattern: Omni
Max Input Power: 2W
Dimensions: 120.4 x 50.4 x 0.2 mm
Weight: 2g
Material: Flexible Polymer
Connector Type: I-PEX MHF 4L
Cable Length: 15cm
Cable Type: 1.37 Coax
