Description

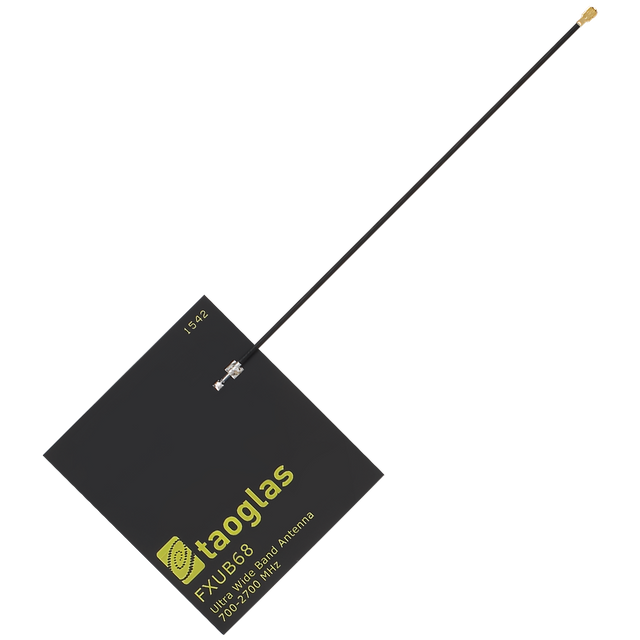

This flexible embedded antenna is designed to provide wideband cellular coverage for compact IoT and connected device designs. Its ultra-thin construction supports efficient performance across low and high cellular bands with an isotropic radiation pattern.
- Wideband cellular coverage: supports 4G/LTE and is compatible with legacy 3G/2G bands
- Compact flexible form factor: suited to space-constrained device housings
- Simple integration: peel-and-stick adhesive backing for secure mounting to non-metal surfaces such as plastic or glass
- Integration-friendly design: intended to perform well when installed with clearance from ground
Connector & Cable
- Connector Type: I-PEX MHF I
- Cable Length: 18cm
- Cable Type: 1.37 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: Adhesive Mount
Type: Single
Frequency: 698MHz - 2690MHz
Mechanical Style: Flex PCB
Termination Style: Connector
Connector Type: I-PEX MHF I
Cable Length: 18cm
Cable Type: 1.37 Coax
Connector Body Style: Straight
Impedance: 50Ω
VSWR: 2:1
Polarity: Linear
Gain (Max): 2 dBi
Dimensions: 67 x 58 x 0.2 mm
Weight: 2.41g
RoHS: Yes
