Description

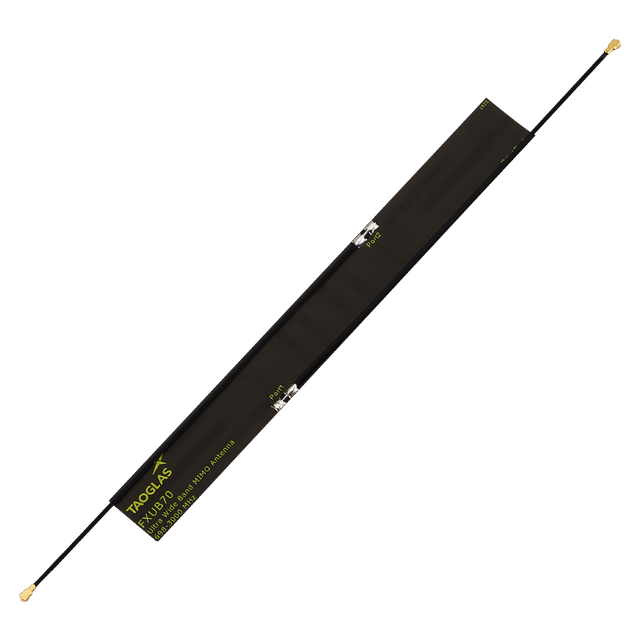

FXUB70 is an ultra-thin, flexible wideband antenna designed to support 2x MIMO performance across common cellular frequencies, while also covering 2.4GHz Wi-Fi, ISM, and A-GPS.
Its ground-plane-independent design and peel-and-stick mounting make it well-suited for compact devices where fast, repeatable installation onto non-metallic surfaces is required.
- Wideband coverage for global cellular deployments (2G/3G/4G)
- 2x MIMO capability to support improved throughput and reliability
- Flexible, ultra-thin form factor for tight packaging constraints
- Peel-and-stick installation for mounting directly onto plastic and other non-metal surfaces
For best radiation efficiency, mount the antenna at least 10mm away from metal components or surfaces (20mm recommended where possible). Cables and connectors are customizable. If cable routing is not convenient on this antenna, the alternative FXUB71 is recommended.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Combination
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 5 dBi
Dimensions: 182*21*0.2mm
Weight: 3.4g
Mechanical Style: Flex PCB
RoHS: Yes
Cellular / Wi-Fi / ISM / A-GPS (MIMO Port)
Frequency: 698-3000 MHz
Standards: 4G LTE, 3G HSPA, 2G GSM/GPRS/CDMA; 2.4GHz Wi-Fi; ISM; A-GPS
Max. Input Power: 2W
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 15cm
Cable Type: 1.37 Coax
Cellular / Wi-Fi / ISM / A-GPS (MIMO Port)
Frequency: 698-3000 MHz
Standards: 4G LTE, 3G HSPA, 2G GSM/GPRS/CDMA; 2.4GHz Wi-Fi; ISM; A-GPS
Max. Input Power: 2W
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 15cm
Cable Type: 1.37 Coax
