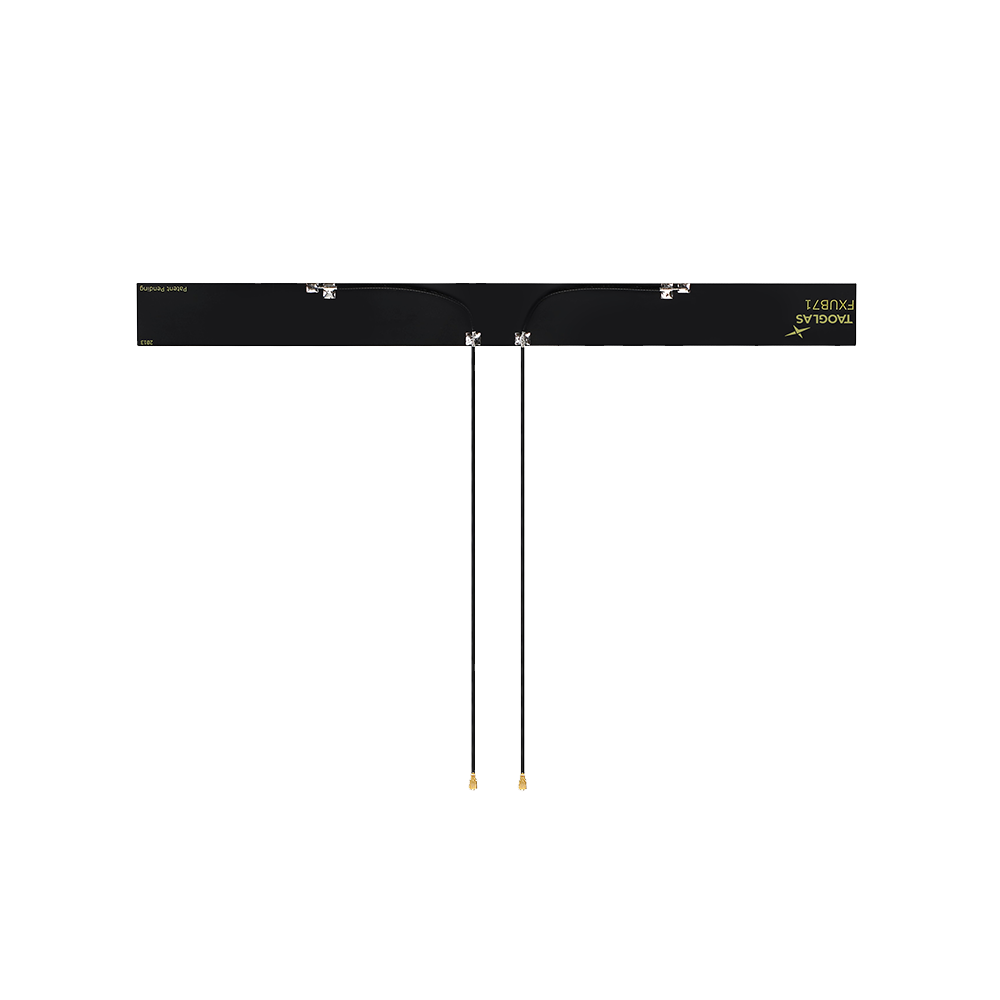

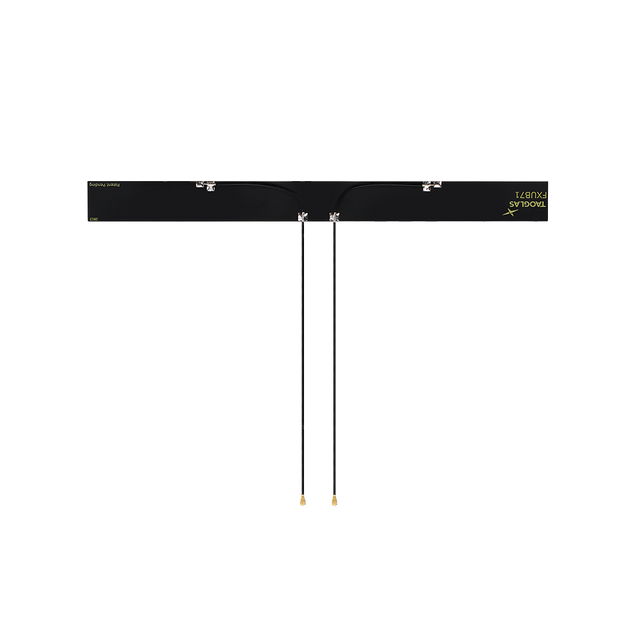

FXUB71.A.54.C.001 Antenna 2x2 MIMO Wideband 5G Flex PCB adhesive for Gateways and Routers, High speed HD streaming, Wireless Access Points, Handheld Devices

This embedded wideband flexible antenna is designed to support worldwide cellular coverage across 600–6000MHz with 2x2 MIMO capability for improved throughput and reliability.

Its slim flex PCB format factor is built for easy integration into compact housings, helping deliver strong efficiency and isolation performance needed for modern 5G/4G devices.

• Wideband cellular coverage: supports operation from 600MHz to 6000MHz
• 2x2 MIMO support: improves data performance and link robustness
• Embedded form factor: flexible construction for integration into devices and enclosures

Typical applications include:

• Gateways and Routers
• High speed HD streaming
• Wireless Access Points
• Handheld Devices
• High capacity MIMO networks for Public Transportation

Installation / Environmental

With over 30% efficiency on all bands, isolation performance between the two ports is under -10dB in all bands. The antenna has been designed in a slim rectangular form-factor, with its own automotive quality 3M 467 adhesive backing tape, to ensure good isolation and convenient installation into typical M2M/IOT devices. Simply peel and stick onto your plastic housing.

The antenna is tuned to work on a reference ABS plastic of 2mm of thickness which is a common standard for most device plastics. Cable routing has been carefully planned to ensure no cross-over of cable, and a logical and hassle free installation. Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency.

The FXUB71 uses a future proof I-PEX MHF® 4L connector for 5G applications to match the many module providers new 5G modules who utilize this smaller receptacle.

Before integration of the antenna in your device, especially if you require PTCRB or US network approvals, please contact your regional customer support team. Cable length and connector type are fully customizable, for further information please contact your regional customer support team.

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole, MIMO
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Adhesive Mount
Type: Combination
Dimensions: 240mm*21mm*0.15mm
Weight: 4.2g

5G/4G 2x2 MIMO

Frequency: 600MHz - 6000MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 4
Max Input Power: 2W
Radiation Pattern: Omnidirectional
Connector Type: 2x I-PEX MHF 4L
Cable Length: 2x 15cm
Cable Type: 1.37 Coax

Download Datasheet PDF
