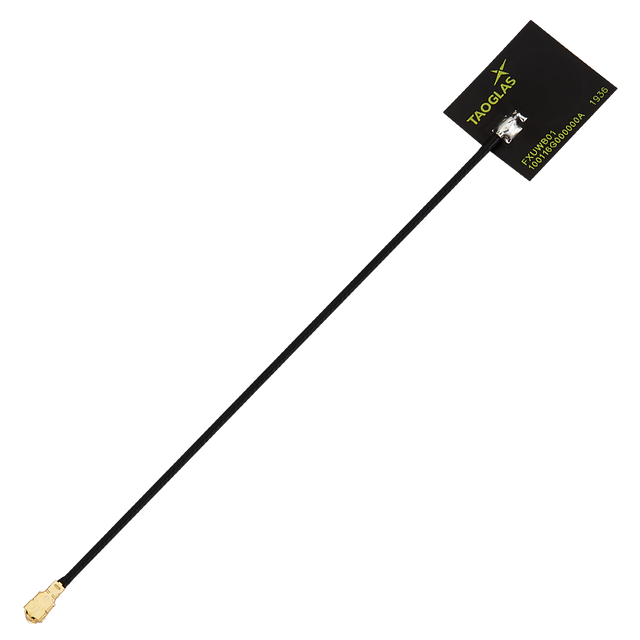

FXUWB01.07.0100C Antenna Ultra-Thin UWB adhesive flex AccuraUWB I-PEX MHF I 10cm for Radar, Home Network Connectivity, Position Location & Tracking, Precision surveying

This ultra-thin flexible UWB antenna is designed for compact devices needing reliable ultra-wideband performance across common UWB operational bands. Its peel-and-stick format supports fast integration on non-metal surfaces and helps maintain strong efficiencies in space-constrained designs.

• Flexible, ultra-thin construction for easy integration into compact products
• Adhesive mounting suited to plastic or glass surfaces
• Wide coverage for UWB channels 5–7
• Omnidirectional radiation for consistent short-range connectivity

Applications

• Radar
• Home Network Connectivity
• Position Location & Tracking
• Precision surveying

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL Compatible)
• Cable Length: 10cm
• Cable Type: 1.37 Coax

Installation / Environmental

It is assembled by a simple “peel and stick” process, attaching securely to non-metal surfaces via 3M adhesive. Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best Radiation efficiency. It is ground plane independent and delivered with a cable and connector for easy connecting to the wireless module or customer PCB. Cables and Connectors are customizable. While the cable type and length are customizable, as is the connector, do note that a custom-designed antenna may be needed in those circumstances. Also tuning of the antenna may be needed in specific customer device environments.

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: UWB
Type: Single
Mechanical Style: Flex PCB
Polarization: Linear
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 3.5 dBi
Length (mm): 17.9
Width (mm): 15.5
Height (mm): 0.24mm
Weight: 1.5g

UWB

Frequency: 6.0-8GHz (Channels 5-7)
Operation Frequency (GHz): 6.24-6.74 (Ch 5), 6.74-7.24 (Ch 6), 5.95-7.03 (Ch 7)
Radiation Pattern: Omnidirectional
Polarization: Linear
Impedance: 50Ω
Max VSWR: 2:1 (Ch 5/6), 3:1 (Ch 7)
Efficiency (%): 82 (Ch 5), 72 (Ch 6), 70 (Ch 7)
Peak Gain (dBi): 3.5 (Ch 5), 4.5 (Ch 6), 4 (Ch 7)
Max Input Power (W): 10
Connector Type: I-PEX MHF I (U.FL Compatible)
Cable Length: 10cm
Cable Type: 1.37 Coax
