Description

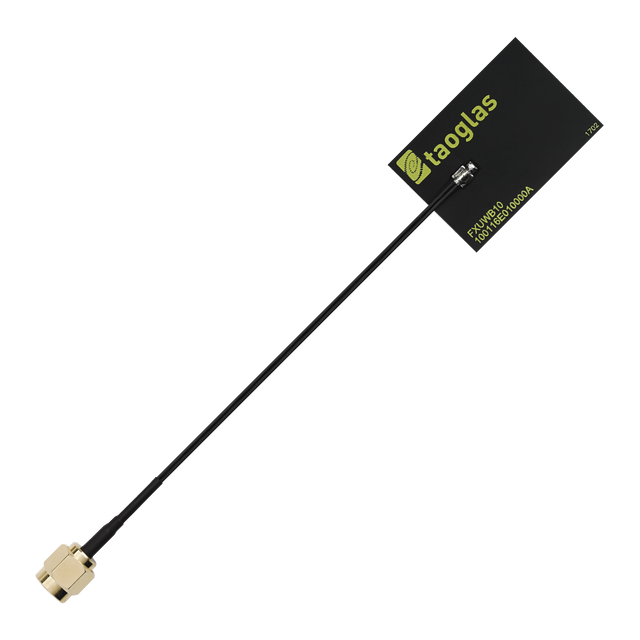

This ultra-wideband (UWB) flexible antenna is designed to support European and USA UWB applications while covering channels 1–15 across a broad 3.0–10.3GHz operating range.
- Wide UWB coverage: supports channels 1–15 for broad UWB deployment
- Flexible, ultra-thin form factor: well-suited to compact device designs
- Peel-and-stick mounting: intended for mounting on non-metal surfaces using adhesive backing
- Ground-plane independent: simplifies integration into many device enclosures
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 10cm
- Cable Type: 1.37 Coaxial
Installation / Environmental
It is assembled by a simple “peel and stick†process, attaching securely to non-metal surfaces via 3M adhesive.
Cables and Connectors are customizable, however, the maximum micro coax cable length is 100 mm.
Like all such antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency.
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Type: Single
Frequency: 3100MHz - 10300MHz
Impedance: 50Ω
Polarization: Linear
VSWR: <2.1
Gain (Max): 4 dBi
Dimensions: 34.9 x 24.5 x 0.24mm
Weight: 3.6g
Cable Length: 10cm
Cable Type: 1.37 Coax
Connector Type: SMA(M)
