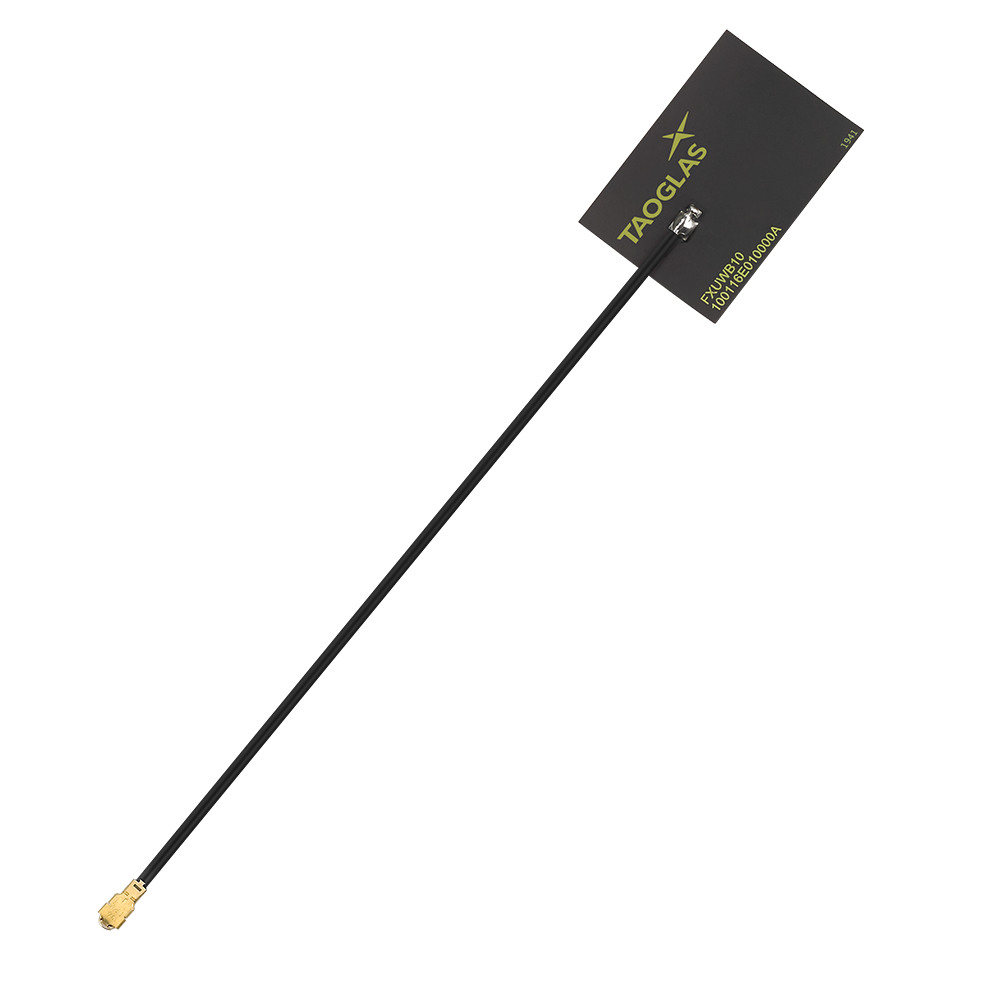

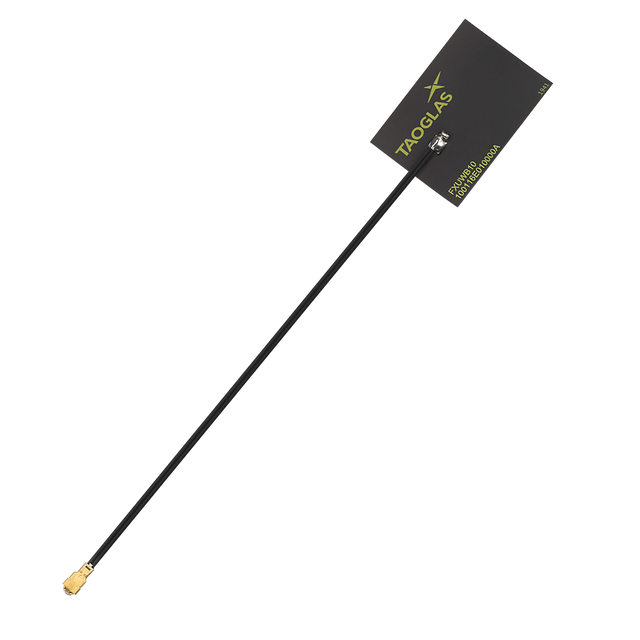

FXUWB10.07.0100C Antenna UWB flex AccuraUWB I-PEX MHFHT 10cm for Radar, Home Network Connectivity, Position location & Tracking, Automotive sensors

This ultra-wideband (UWB) flexible antenna is designed for compact devices that need wideband short-range performance across UWB channels 1–15. Its thin, flexible construction supports easy integration onto non-metal surfaces such as plastic housings.

• Wide UWB coverage: supports UWB operation for EU and US use cases
• Compact flexible form factor: designed for space-constrained embedded designs
• Simple integration: peel-and-stick mounting for fast assembly on suitable non-metal surfaces

Installation notes: Mount to non-metal surfaces and keep clearance from nearby metal components (at least 10mm recommended, ideally 20mm) to help maintain radiation efficiency.

Use Cases

• Radar
• Home Network Connectivity
• Position location & Tracking

Connector & Cable

• Connector Type: I-PEX MHFHT (U.FL compatible)
• Cable Length: 10cm
• Cable Type: 1.37 Coaxial

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: UWB
Type: Single
Frequency: 3100MHz - 10300MHz
Impedance: 50Ω
Polarization: Linear
Radiation Properties: omnidirectional
Max VSWR: 2:1
Peak Gain (dBi): 7.1 (3.1–5.0GHz), 4.5 (6.0–8.2GHz), 6.2 (8.2–10.3GHz)
Efficiency (%): 85 (3.1–5.0GHz), 80 (6.0–8.2GHz), 75 (8.2–10.3GHz)
Dimensions: 34.9 x 24.5 x 0.24 mm
Weight: 3.6g
Connector Type: I-PEX MHFHT (U.FL compatible)
Cable Length: 10cm
Cable Type: 1.37 Coaxial
Mechanical Style: Flex PCB
