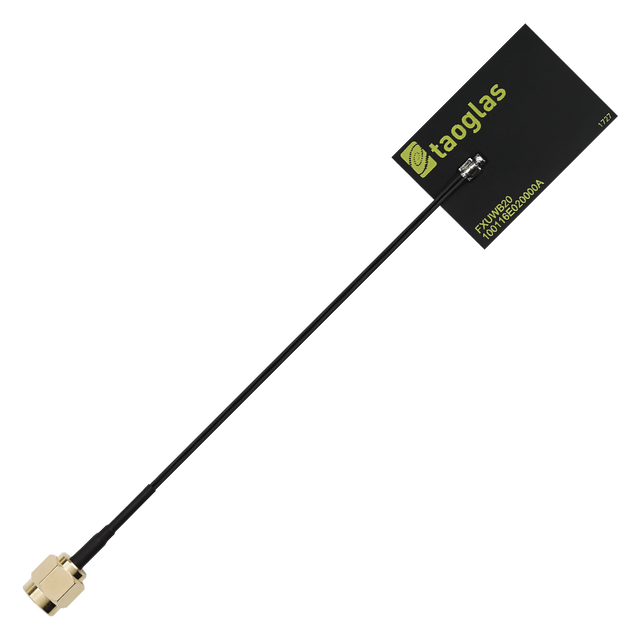

FXUWB20.01.0100C Antenna UWB flex adhesive AccuraUWB SMA-M 10cm 1.37mm for Radar, Home Network Connectivity, Position location & Tracking, Automotive sensors

This ultra-wideband (UWB) flexible antenna is designed for compact devices that need reliable short-range ranging and data links across UWB channels 1–15. Its peel-and-stick construction allows fast, repeatable integration onto non-metal surfaces such as plastic or glass, helping simplify industrial design and assembly.

• Wide UWB coverage: supports European and USA UWB applications and covers channels 1–15 (with a rejection band for 5.8GHz Wi‑Fi bands).
• Easy integration: flexible, ultra-thin form factor with 3M adhesive for secure “peel and stick” mounting.
• Design-friendly placement: ground-plane independent and intended for mounting on non-metal surfaces; for best performance, mount at least 10mm away from metal parts (ideally 20mm).
• Use cases: radar, home network connectivity, and position location & tracking applications.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 10cm
• Cable Type: 1.37 Coaxial

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: Internal
Mounting: Adhesive Mount
Short-Range Wireless Standards: UWB
Type: Single
Dimensions: 34.9*24.5*0.24mm
Weight: 3.6g

UWB

Frequency: 3.1-5.0 GHz, 6.0-8.2 GHz, 8.2-10.3 GHz
Polarization: Linear
Impedance: 50Ω
Radiation Properties: Omnidirectional
Max Input Power (W): 10
Return Loss (dB): <-8, <-9, <-6
VSWR (Max): 2.2:1, 2:1, 3:1
Efficiency (%): 80, 75, 65
Peak Gain (dBi): 6.6, 4.2, 5.8
Connector Type: SMA(M)
Cable Length: 10cm
Cable Type: 1.37 Coaxial
