Description

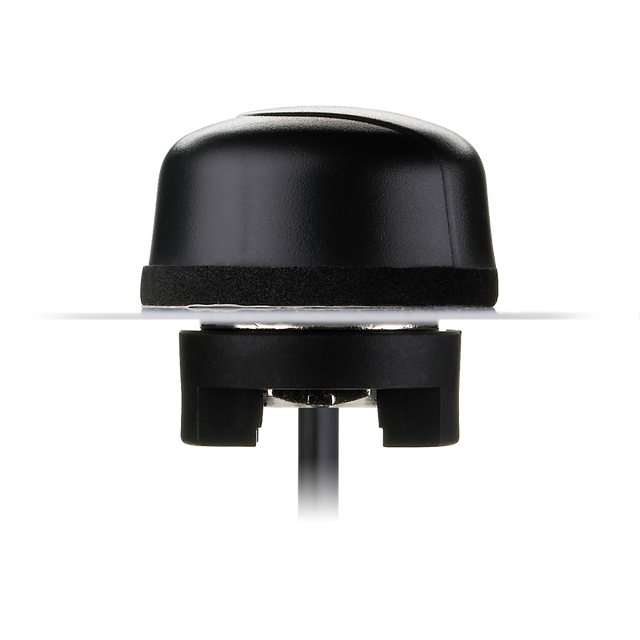

The Hercules G21 (Generation II) is a rugged, low-profile penta-band cellular antenna designed for reliable 2G/3G connectivity on vehicles and outdoor assets. Its heavy-duty threaded housing supports permanent screw mounting, while the vandal- and UV-resistant enclosure helps protect performance in demanding environments.
- Penta-band cellular support: Designed for global 2G/3G deployments
- Durable construction: UV-resistant, vandal-resistant housing for harsh environments
- Low-profile design: Helps reduce snag risk on branches and obstacles
- Versatile deployment: Suitable for use on metal structures and can operate with or without a ground plane
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to +85°C
Cellular Technologies: 3G
Location: External
Mounting: Screw Mount
Type: Single
IP Rating: IP65
Impedance: 50Ω
Polarization: Linear
VSWR: <3:1
Gain (Max): 2.5 dBi
Length: 47.8mm
Width: 47.8mm
Height: 28.5mm
Weight: 150g
Cellular (2G/3G)
Frequency: 824MHz - 2170MHz
Standards: GSM/GPRS/CDMA/EVDO/UMTS/HSPA/WCDMA
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
Max Input Power: 10 watts
