Description

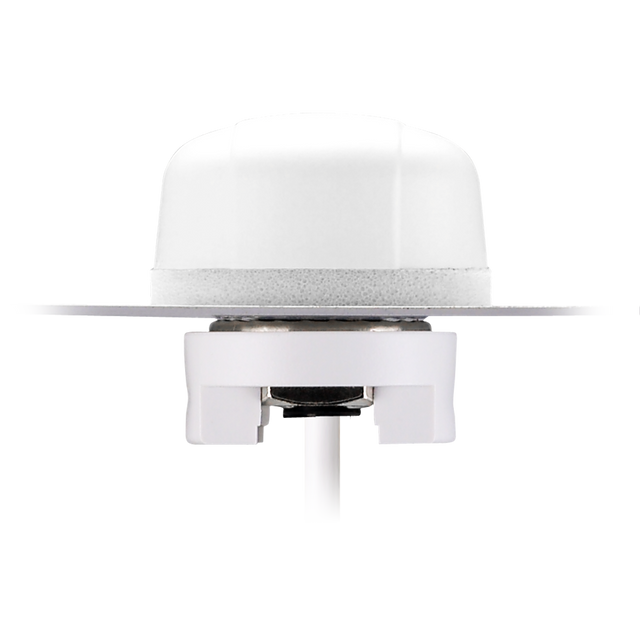

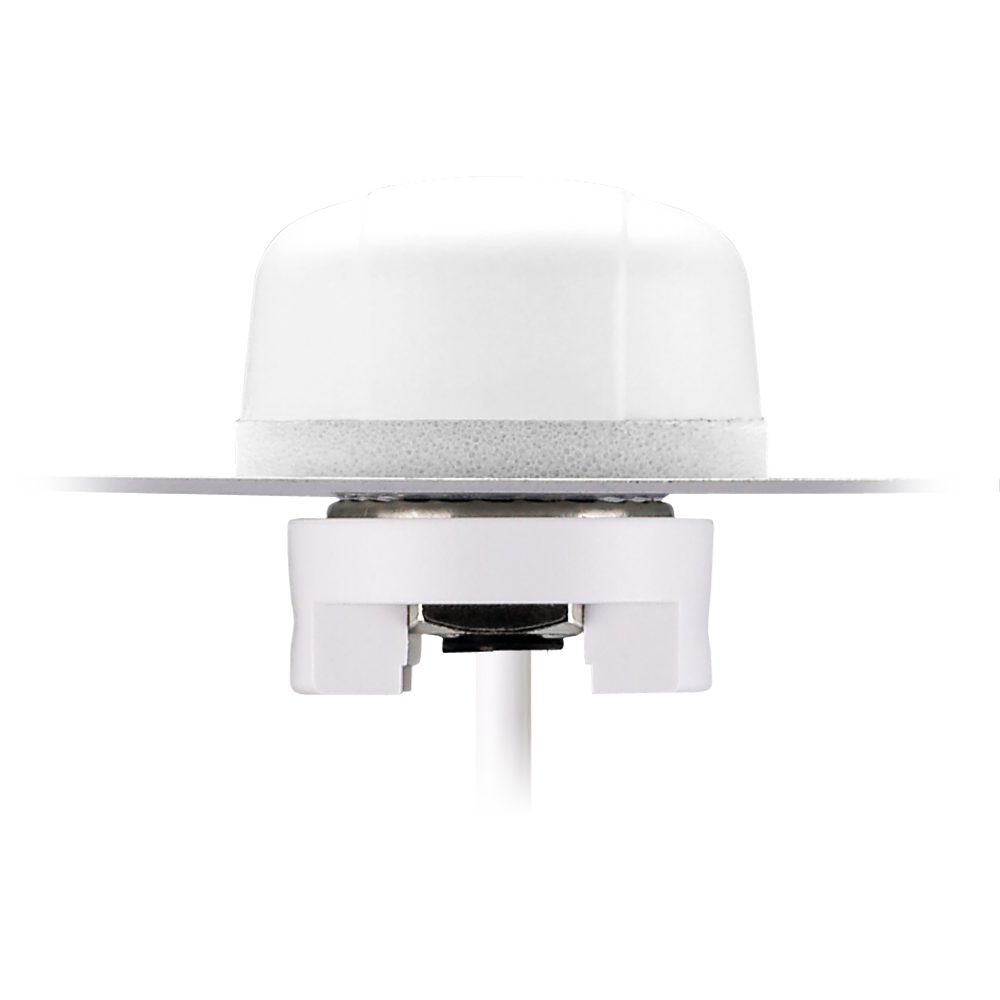

The Hercules Gen II is a rugged, low-profile penta-band cellular antenna designed for external installation on vehicles and outdoor assets worldwide. Its omnidirectional, high-gain performance helps maintain reliable reception and transmission across supported 2G/3G bands.
- Penta-band cellular coverage: Supports common global 2G/3G bands for broad compatibility.
- Durable housing: UV- and vandal-resistant enclosure designed for harsh outdoor environments.
- Low-profile design: Compact form factor intended to reduce snag risk on roof-mounted installations.
- Weather-resistant: IP65-rated enclosure for protection against dust and water ingress.
- Vehicle-ready mounting: Heavy-duty permanent screw/thread mount for secure installations.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to +85°C
Cellular Technologies: 3G
Location: External
Mounting: Screw Mount, Permanent Mount
Type: Single
IP Rating: IP65
Impedance: 50Ω
Dimensions: H: 29mm, Ø: 49mm
Weight: 140g
Cellular (2G/3G Penta-Band)
Frequency: 824-896, 880-960, 1710-1880, 1850-1990, 1920-2170 MHz
Standards: GSM/CDMA/UMTS/HSPA/HSPA+/WCDMA/AMPS
Polarization: Linear
VSWR: <3:1
Gain (Max): 2.5 dBi
Max Input Power: 10 watts
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
