Description

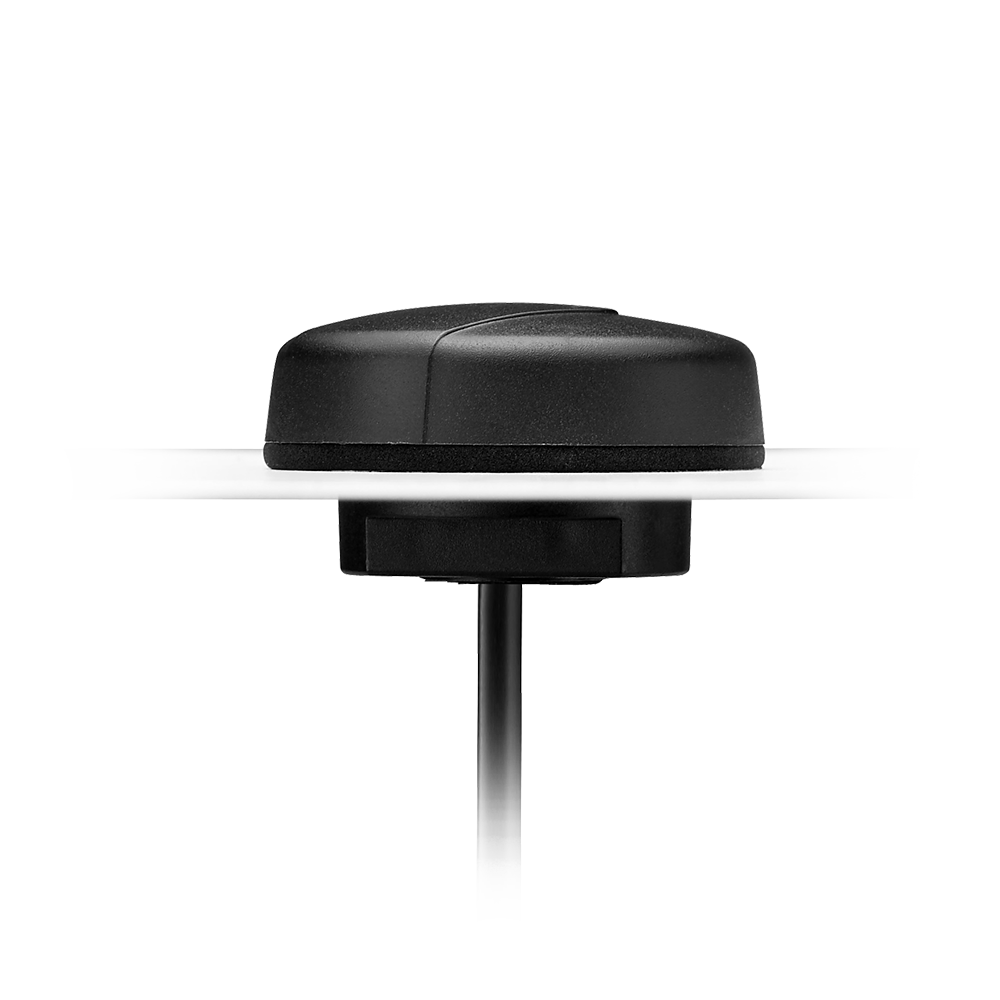

Ultima G24 is an extremely low-profile cellular antenna designed for reliable 2G/3G connectivity in demanding environments. Its compact, rugged housing and permanent-mount design make it well-suited to vehicle and industrial deployments where durability and consistent performance are essential.
- Low-profile form factor: compact design for discreet installations
- Penta-band cellular support: wide coverage for global 2G/3G networks
- Ground-plane independent: works well on metal and non-metal mounting surfaces
- Rugged and waterproof: suitable for humid and harsh outdoor environments
- Use cases: automotive installations, professional telematics, and marine environments
Also available in white.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: TGC-200
Technical Specifications
Operating Temperature: -40°C to +85°C
Cellular Technologies: 3G
Location: External
Mounting: Screw Mount
Type: Single
IP Rating: IP67
Impedance: 50Ω
Polarization: Linear
VSWR: <3:1
Gain (Max): 3.83 dBi
Dimensions: 55mm x 55mm x 20.6mm
Weight: 180g
Cellular (2G/3G)
Frequency: 824MHz - 2170MHz
Standards: GSM/GPRS/CDMA/UMTS/HSPA/HSPA+/WCDMA
Bands: 850/900/1800/1900/2100MHz
Input Power: 10 W
Connector Type: SMA Male Straight
Cable Length: 300cm
Cable Type: TGC-200
