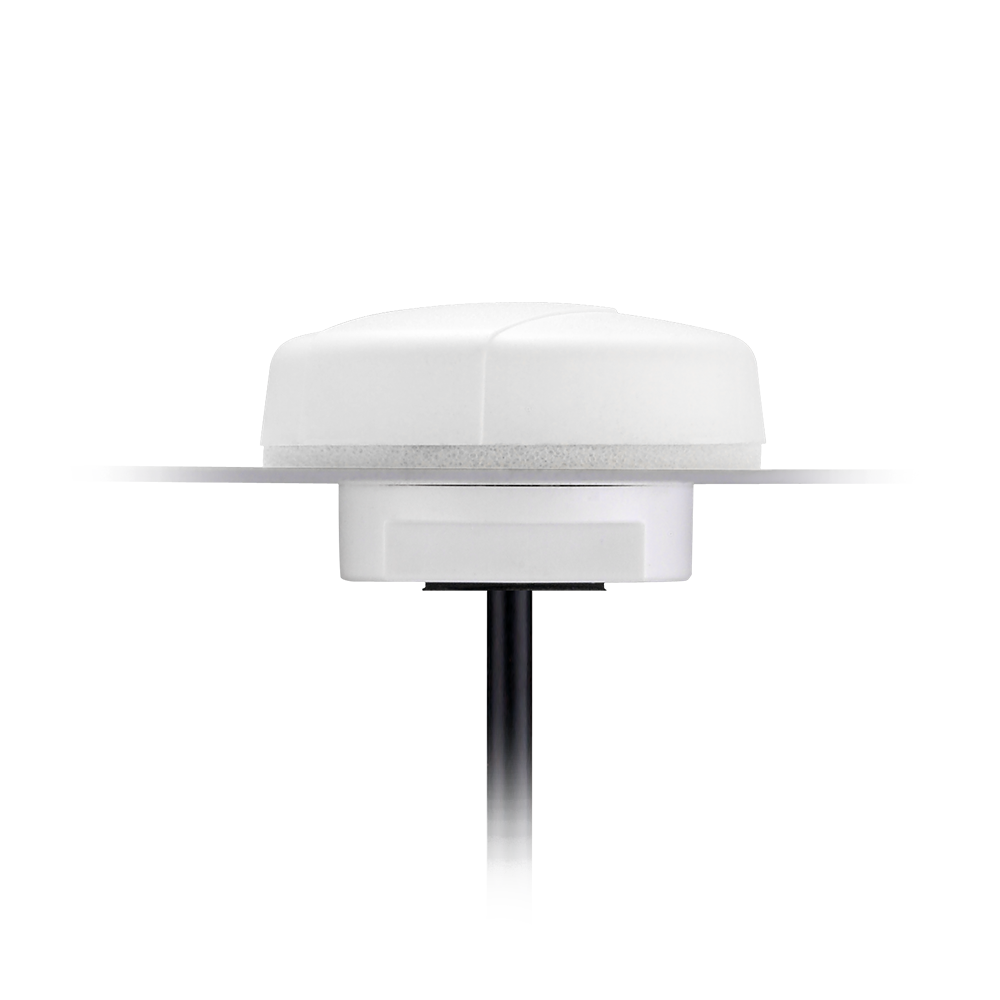

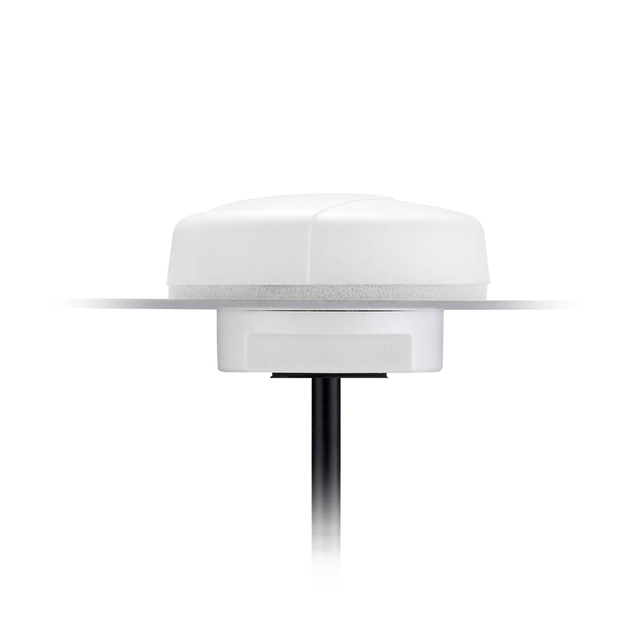

G24.A.W.305111 Antenna External 3G, 2G permanent mount Ultima SMA-M 300cm IP67

Ultima G24 is an extremely low-profile, penta-band cellular antenna designed for professional telematics and other rugged deployments where a discreet, durable solution is required.

• Penta-band 2G/3G support: Covers global GSM/CDMA/UMTS/HSPA/HSPA+/WCDMA bands.
• No ground plane required: Performs well on both metal and non-metal mounting surfaces.
• Rugged, lightweight housing: UV- and vandal-resistant construction for long service life.
• Waterproof design: IP67-rated sealing for harsh and humid environments, including marine use cases.

Also available in Black.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: TGC-200

Technical Specifications

Operating Temperature: -40°C to +85°C
Cellular Technologies: 3G
Location: External
Mounting: Screw Mount
Type: Single
IP Rating: IP67
Frequency: 824MHz - 2170MHz
Impedance: 50Ω
VSWR: <2:1
Polarization: Linear
Gain (Max): 3.83 dBi
Dimensions: 55.2mm x 55.2mm x 19.6mm
Weight: 180g
Connector Type: SMA Male Straight
Cable Length: 300cm
Cable Type: TGC-200
