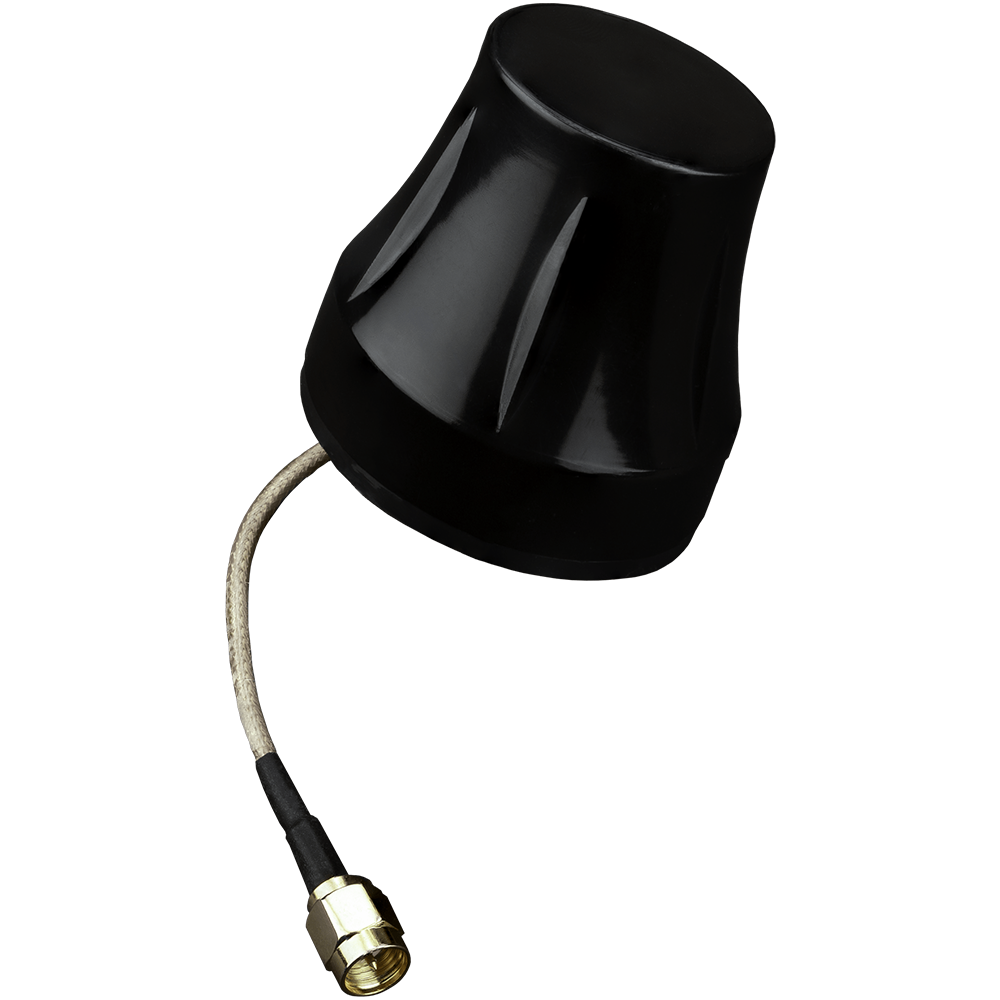

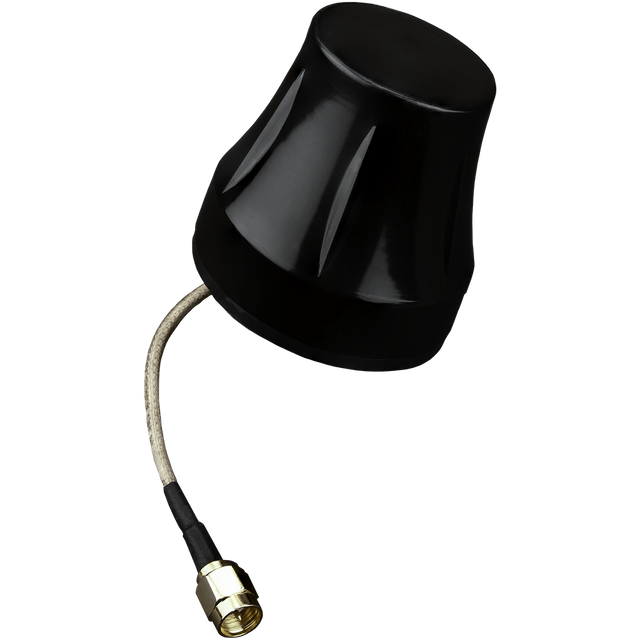

G30.B.108111 Antenna Outdoor External High-Gain 4G/LTE, Wi-Fi screw mount Olympian SMA-M 100cm IP67 for Vehicles, Outdoor Assets, Video, Mobile Broadband

Olympian G30 is a high-performance wideband cellular antenna designed for external installation on vehicles and outdoor assets. Its omni-directional radiation pattern, high efficiency, and rugged housing help maintain reliable connectivity for demanding data applications such as video and mobile broadband.

The durable UV-resistant enclosure is built to withstand vandalism and direct attack. The low-profile design helps meet roof-mounted height constraints, and the internal nut-lock mounting method supports secure installation on metal or plastic structures. A sealing foam at the base helps provide a watertight seal.

Using two antennas spaced apart can support LTE MIMO spatial diversity applications. Custom cable lengths and connector options are available, and for longer cable lengths or when a 700MHz band is required, alternatives include MA740 Pantheon (4G/3G/2G) or MA741 4G/3G/2G MIMO Pantheon.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 100cm
• Cable Type: RG316

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
IP Rating: IP67
Dimensions: Height=48mm and Diameter=50mm
Weight: 66g

4G/3G/2G (LTE/Cellular) / Wi-Fi

Frequency: 698 to 960MHz, 1710 to 2700MHz, 2.4GHz
Standards: LTE/GSM/CDMA/DCS/PCS/WCDMA/UMTS/HSDPA/GPRS/EDGE/IMT, Wi-Fi
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
VSWR: <2:1
Max. Input Power: 2W
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: RG316
Notes: Cables and connectors customizable
