Description

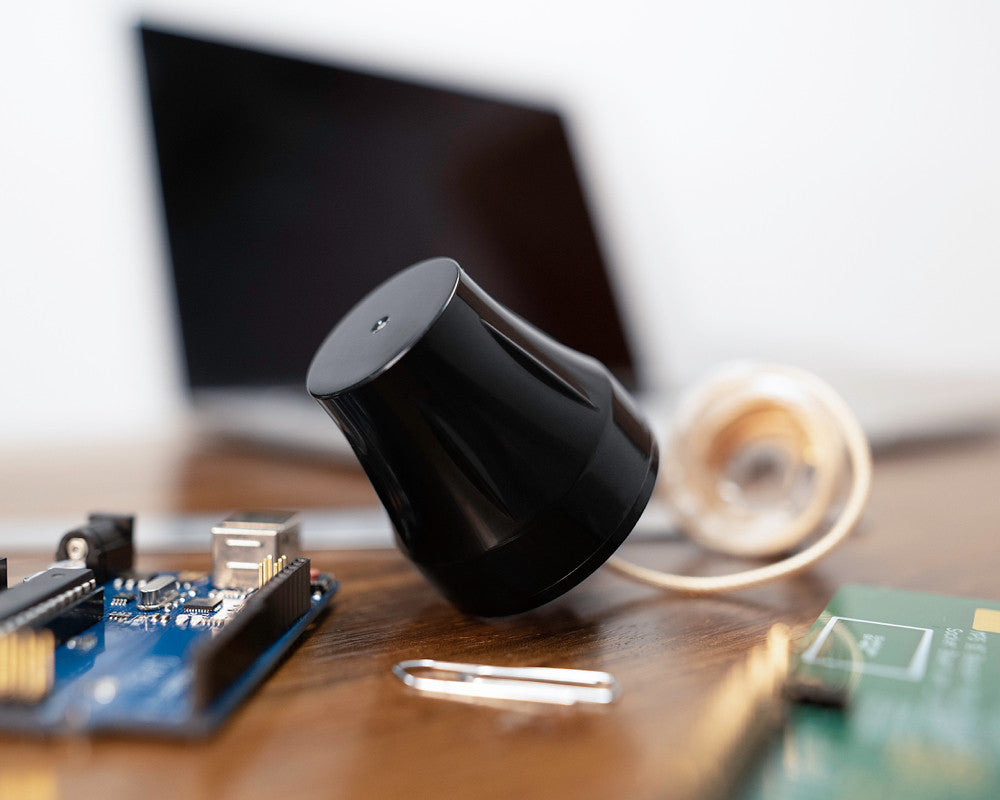

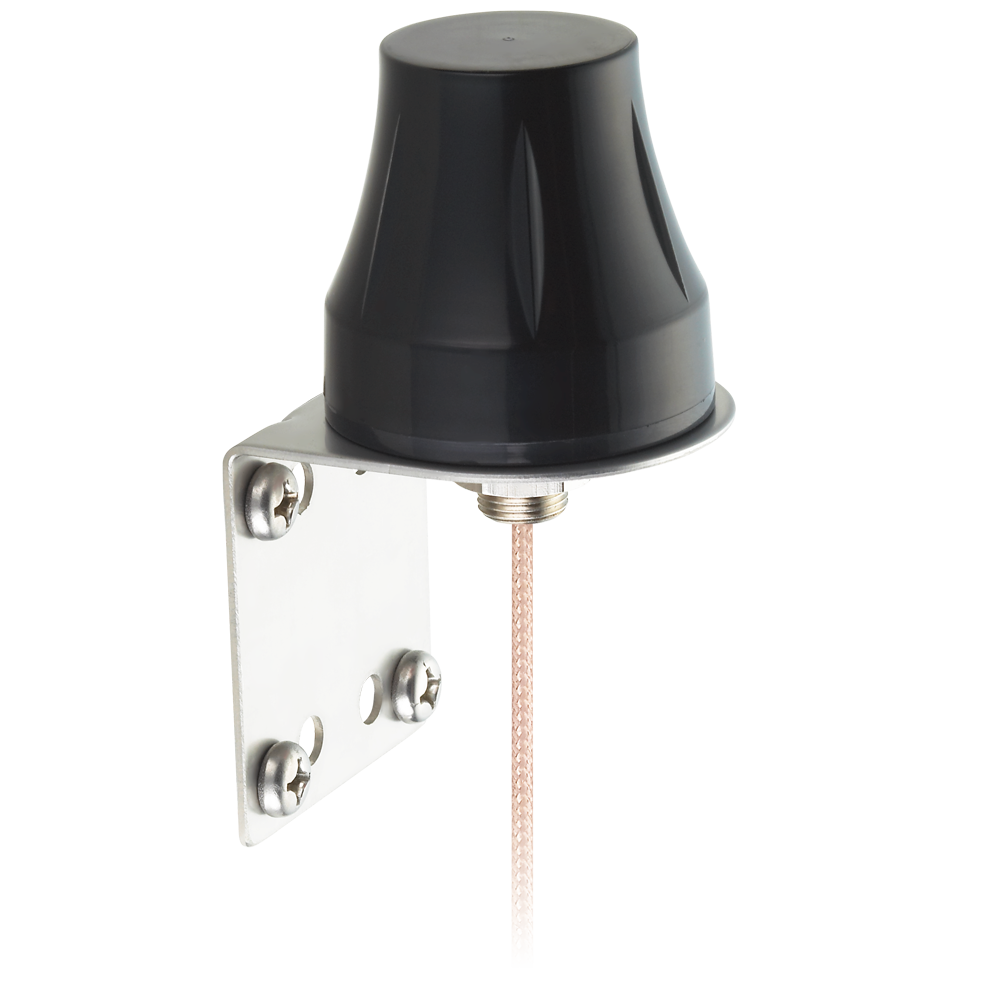

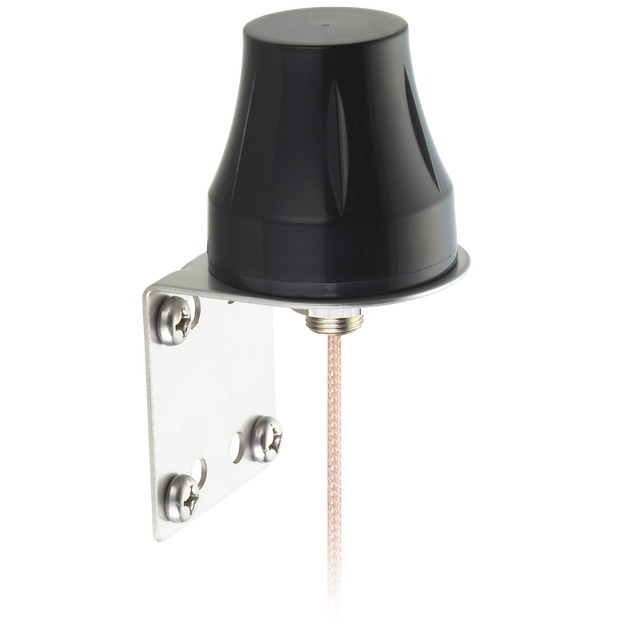

Olympian G30 is a wideband cellular antenna designed for external installations on vehicles and outdoor assets. Its omni-directional performance is built to support reliable connectivity for high data bandwidth use cases such as video and mobile broadband.
- Wideband cellular coverage for multi-network deployments
- Omni-directional design to help maintain consistent reception and transmission
- Durable, UV-resistant housing intended for outdoor exposure and vandal resistance
- Low-profile format suitable for roof-mounted installations
- Suitable for LTE MIMO spatial diversity when two antennas are installed with separation distance
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 100cm
- Cable Type: RG-178
Technical Specifications
Operating Temperature: -40°C to +85°C
Cellular Technologies: 4G/LTE
Location: External
Mounting: Screw Mount
Type: Single
IP Rating: IP67
Frequency: 824MHz - 2170MHz
Impedance: 50
VSWR: <2:1
Polarization: Linear
Gain (Max): 3
Connector Type: SMA
Connector Body Style: Straight
Cable Length: 100cm
Cable Type: RG-178
Length (mm): 50.25
Width (mm): 50.25
Height (mm): 48
Weight: 66g
