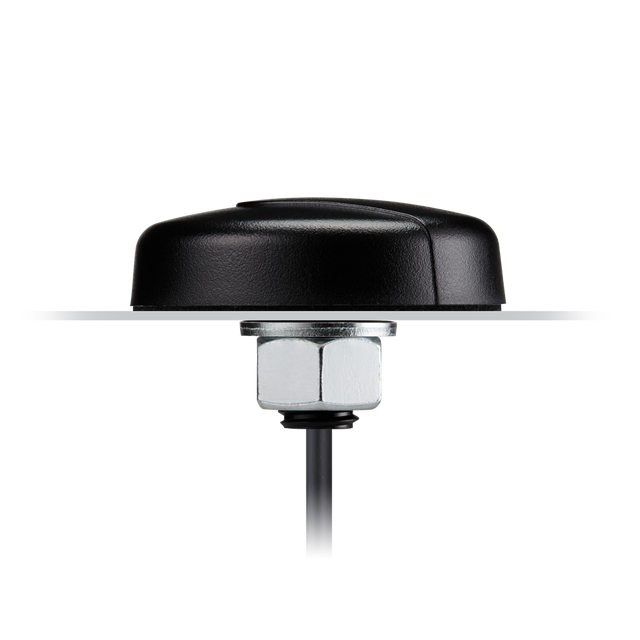

G35.A.305111 Antenna External Low-Profile 5G, 4G/LTE, NTN/SatCom screw mount Ultima II SMA-M 300cm IP67 for Smart Lighting, Smart Cities, Connected Enterprise, Digital Signage

Ultima II G35 is an extremely low-profile, wideband cellular antenna designed for external use on vehicles and assets worldwide. Its compact, lightweight design and durable UV-resistant enclosure make it well-suited for demanding environments, including humid locations where corrosion resistance is important.

• Wideband cellular support: 5G/4G LTE coverage with 3G/2G fallback
• Rugged enclosure: IP67-rated protection
• Permanent mounting: Heavy-duty screw-mount design
• Use cases: Smart Lighting, Smart Cities, Connected Enterprise, Digital Signage
• NTN support note: Recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America)

For an alternative that may be mounted on an enclosed metal box please use the G21.B.301111.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: TGC-200

Installation / Environmental

The G35 can be mounted on a metal enclosure but it is not suitable for mounting on a metal enclosure where the cable will be located inside the enclosure.

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Type: Single
IP Rating: IP67
Dimensions: 57.01mm x 17.4 mm
Weight: 143g

5GNR/4G/3G/2G (Cellular/NTN)

Frequency: 617-698, 698-806, 824-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000, 5150-5925 MHz
Standards: 5GNR/4G/LTE/3G/2G, NB-IoT, Cat-M
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
VSWR: <2:1
Gain (Max): 5.88 dBi
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: TGC-200
