Description
Overview

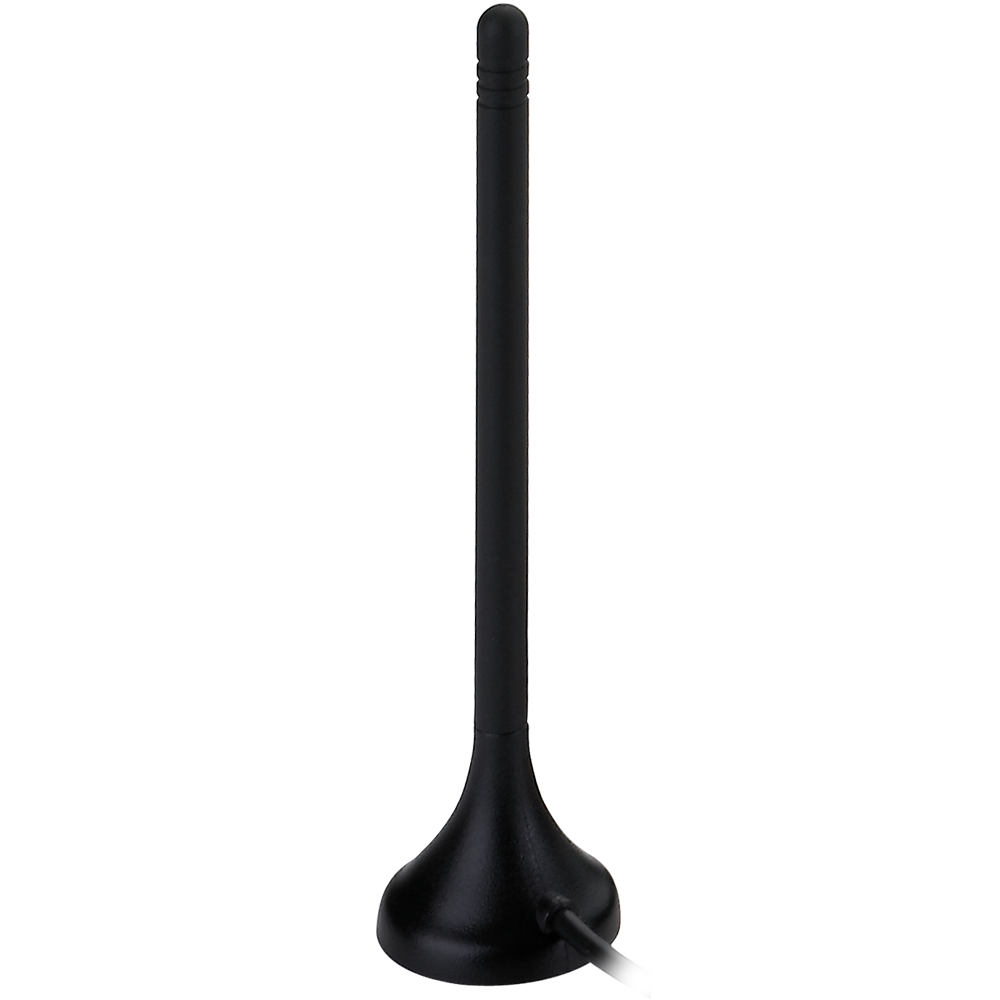

This compact magnetic-mount cellular whip antenna is designed to deliver strong efficiency and gain across widely used cellular bands, helping reduce the need to stock multiple antenna part numbers. It is small enough for indoor or outdoor use and is engineered to take advantage of a metal surface (ground plane) to achieve best-in-class performance. A reliable return loss of <10dB when mounted on a metal plate helps it meet common module and network requirements.
- Wideband cellular coverage for modern networks
- Magnetic mount with strong Neodymium N35 magnet
- Optimized to work with metal ground planes for improved performance
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 200cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Whip
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Magnetic Mount
Type: Single
Frequency: 600MHz to 6000MHz
Impedance: 50Ω
Polarization: Linear
VSWR: <2:1
Gain (Max): 1.82
Dimensions: Base Ø: 29.5mm, L: 116mm
Weight: 21g
Connector Type: SMA Male
Cable Length: 200cm
Cable Type: RG-174
