Description

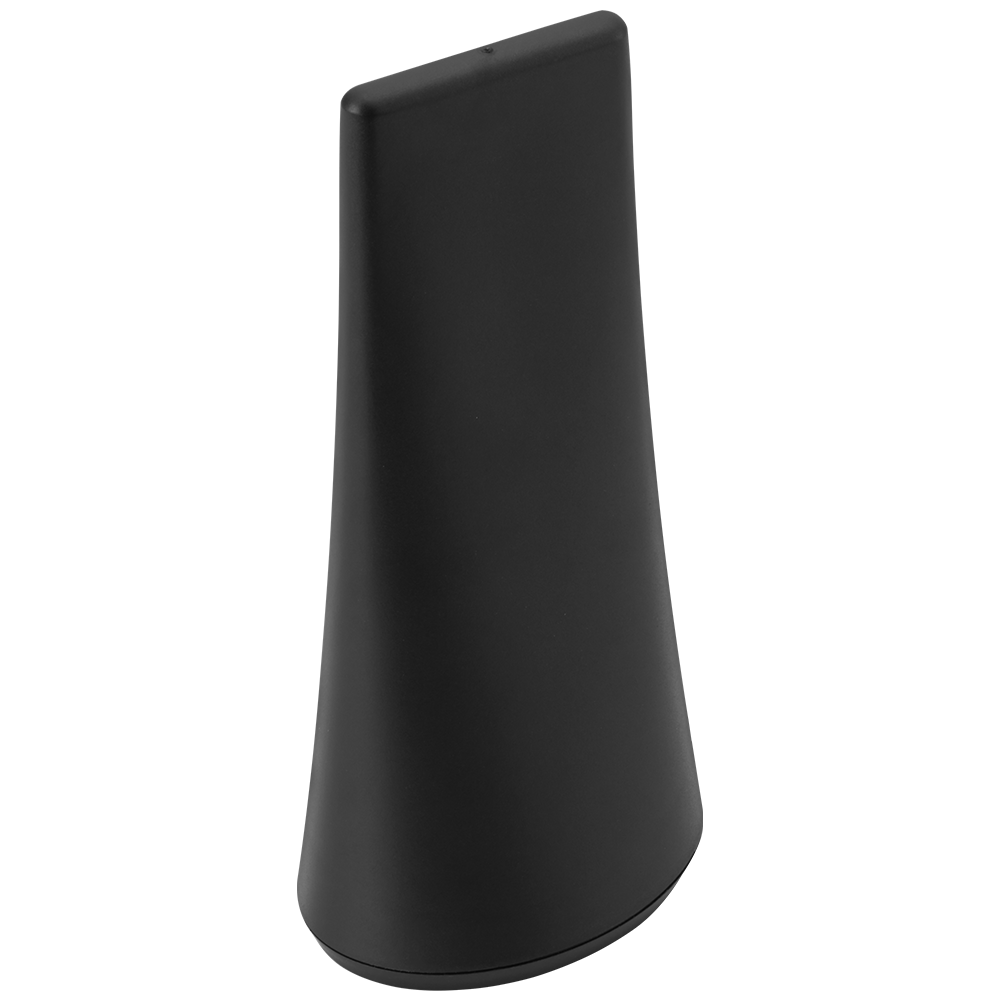

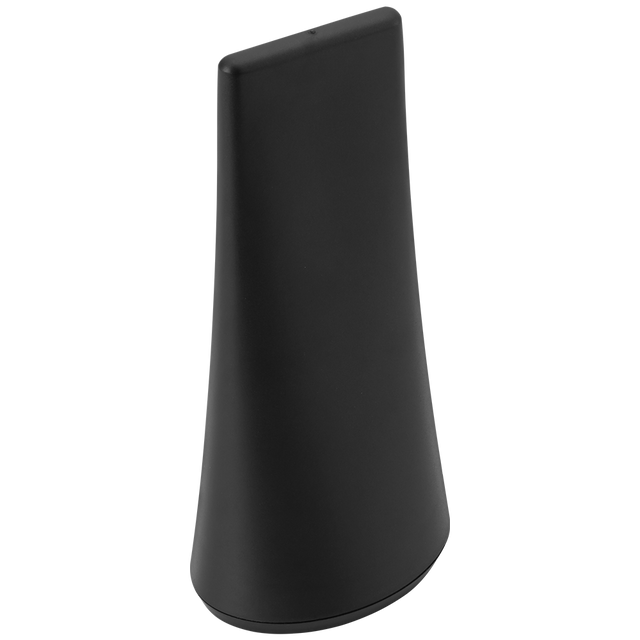

This wideband magnetic-mount cellular antenna is designed to deliver stable, omnidirectional performance across common global cellular bands. It supports multi-generation cellular operation, helping reduce the need to swap antennas when deploying across different regions and networks.
- Wideband cellular coverage: supports 4G with backward compatibility for 3G and 2G deployments
- Flexible mounting options: magnetic mounting on metal surfaces, or adhesive mounting for non-metal surfaces
- Reliable RF performance: engineered for consistent return loss and efficient operation when mounted on an appropriate metal surface
- Ruggedized enclosure: designed for durable field use with an IP-rated housing
Related variants are available: GA.131.201111 (adhesive mount) and GA.132.201111 (permanent mount).
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 200cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Magnetic Mount, Adhesive Mount (3M 467)
Type: Single
IP Rating: IP65
Dimensions: Base: 72 x 53 * Height :143mm
Weight: 145g
4G/3G/2G (Cellular)
Frequency: 698-2700 MHz
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Gain (Max): 3.2 dBi
Radiation Pattern: Omni
Input Power: 10 W
Connector Type: SMA (M) Straight
Cable Length: 200cm
Cable Type: RG-174
