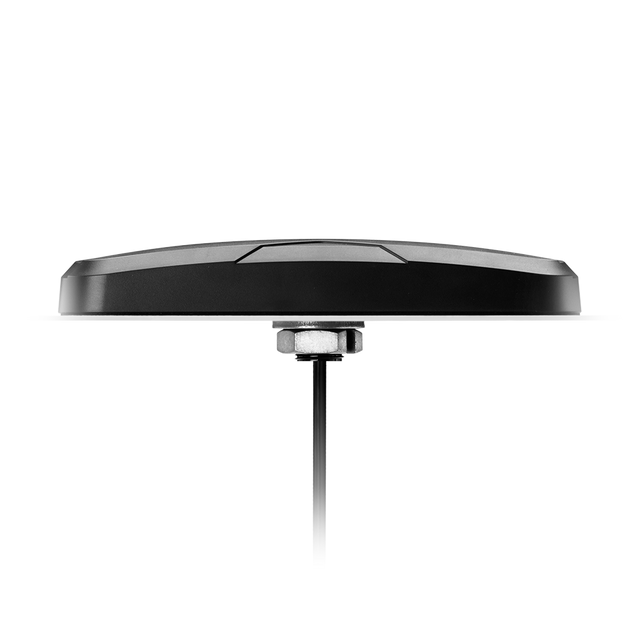

GA.170.305111 Antenna External Low-Profile High-Gain 5G screw mount Monsoon SMA-M 300cm TGC-200 IP69K for HD Video over LTE, First Responder and Emergency Services, Intelligent Transport Systems, Internet of Things (IoT market)

Monsoon is a low-profile external antenna designed to deliver reliable 5G/4G connectivity in demanding environments, including container and telematics deployments. Its rugged, fully waterproof enclosure supports dependable performance for high-speed uplink and downlink use cases.

• Wideband cellular coverage for modern 5G/4G deployments
• Rugged, waterproof housing for harsh outdoor conditions
• Designed for strong efficiency over long cable runs
• No ground plane required

Typical applications include:

• HD Video over LTE
• First Responder and Emergency Services
• Intelligent Transport Systems
• Internet of Things (IoT market)
• High Definition Video Broadcast Systems
• Wireless LTE M2M Devices
• Digital Signage

Connections

1x 5G/4G Antenna 600MHz-6GHz

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: TGC-200

Technical Specifications

Operating Temperature: -40°C to +85°C
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Type: Single
IP Rating: IP69K
Dimensions: 204*69*31 mm
Weight: 550 g
Recommended Mounting Torque: 24.5N∙m
Maximum Mounting Torque: 29.5N∙m

5G/4G

Frequency: 600MHz - 6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Impedance: 50 Ω
VSWR: 2:1
Polarization: Linear - Vertical
Gain (Max): 4.03
Max Input Power: 10W
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: TGC-200
