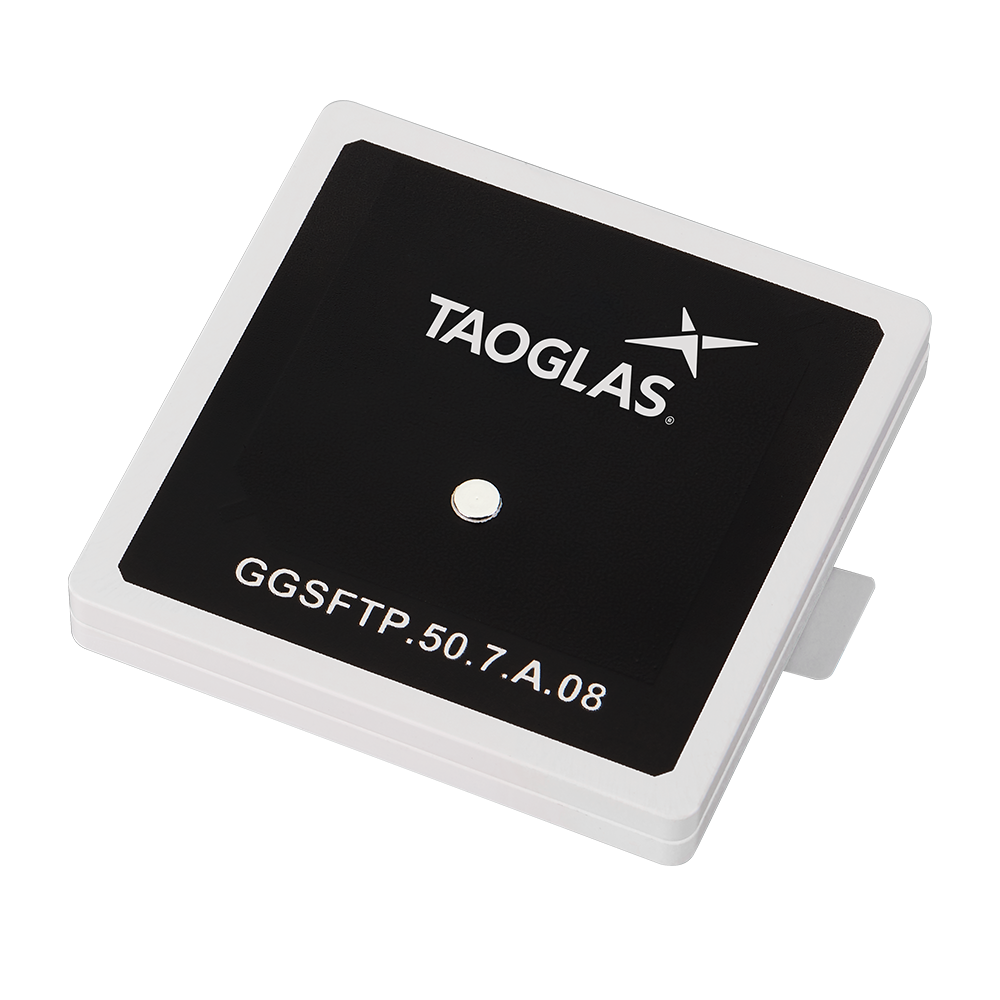

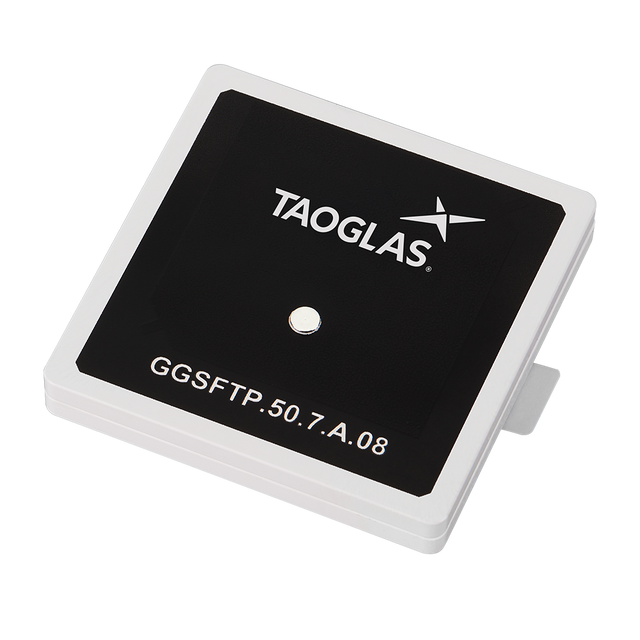

GGSFTP.50.7.A.08 Antenna Low-Profile GNSS L1/L2 embedded patch Terrablast for Precision Transportation, Tracking and Inventory Management, Defense, Marine

GGSFTP.50.7.A.08 is a low-profile, embedded stacked patch antenna designed for multi-constellation GNSS reception, including GPS L1/L2 operation. Its single-feed patch assembly and robust Terrablast material make it well-suited for compact devices that require impact resistance and dependable positioning performance.

• Multi-constellation GNSS support: designed for GPS/GLONASS/Galileo reception with GPS L2 capability
• Low-profile embedded form factor: patch-style design for tight integration spaces
• Rugged material construction: engineered for applications exposed to impact and vibration

Typical use cases include: Precision Transportation, Tracking and Inventory Management, Defense, Marine, Aviation, Agriculture, UAV Navigation, Surveying, and Improved Weather forecasting.

Installation / Environmental

Terrablast antennas are not suitable for SMD reflow. The correct method is manual soldering at a soldering temperature of 380 C +/- 20 C for a duration of 3 to 5 seconds.

Technical Specifications

Operating Temperature: -40 C to 85 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive, SMD/SMT
Satellite Navigation: GNSS
Type: Single
Dimensions: 50*50*7mm
Weight: 36.2g

GNSS (Passive)

Frequency: 1189MHz - 1605MHz
GNSS Bands: L1/L2
Impedance: 50a9
Polarization: RHCP
VSWR: 1.5
Gain (Max): 4.6
