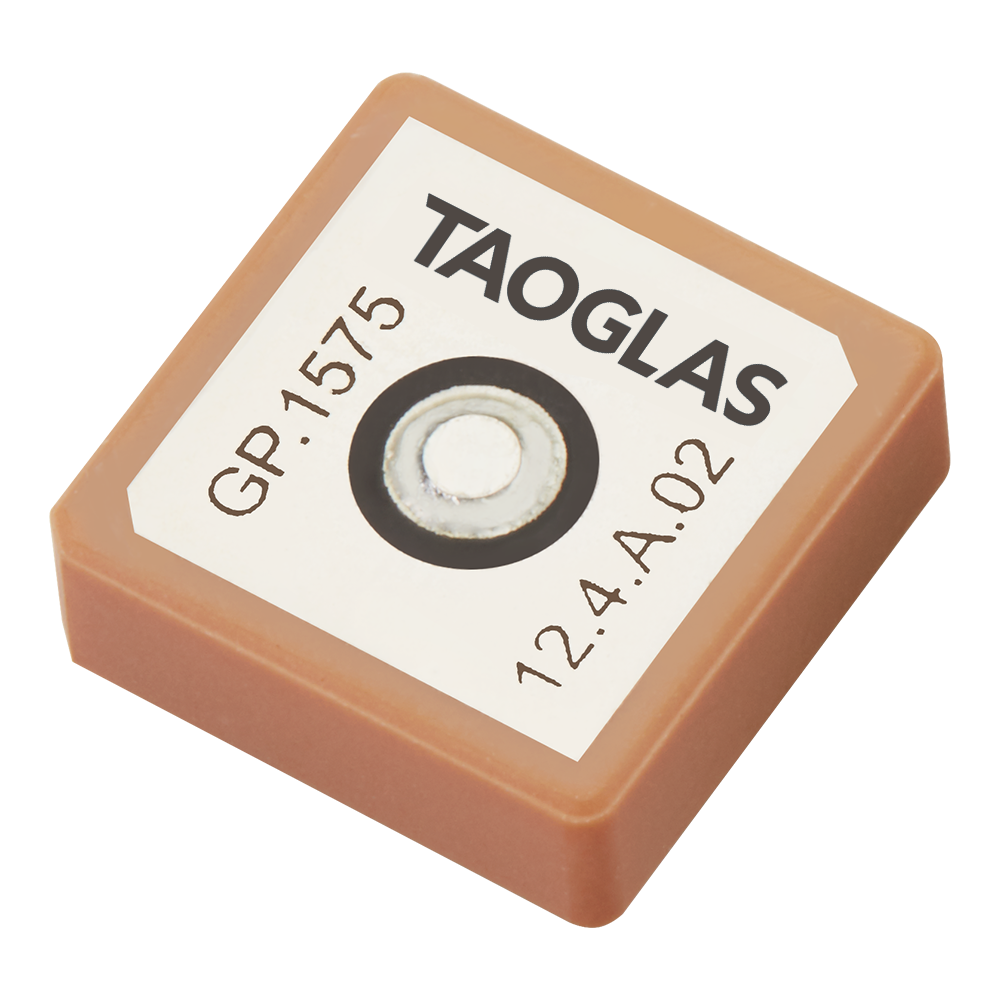

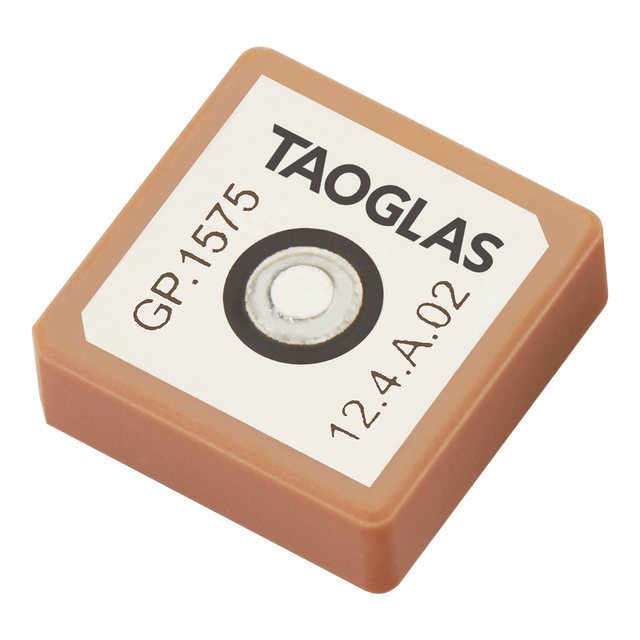

GP.1575.12.4.A.02 Antenna GNSS pin/adhesive mount patch XtremeGain

This miniaturized ceramic GNSS patch antenna is designed for GPS/Galileo L1 applications where space is limited. Its compact patch format supports reliable satellite signal reception and is intended for easy integration into embedded devices.

• Passive GNSS patch: supports GPS/Galileo L1 operation
• Compact ceramic design: ideal for small device form factors

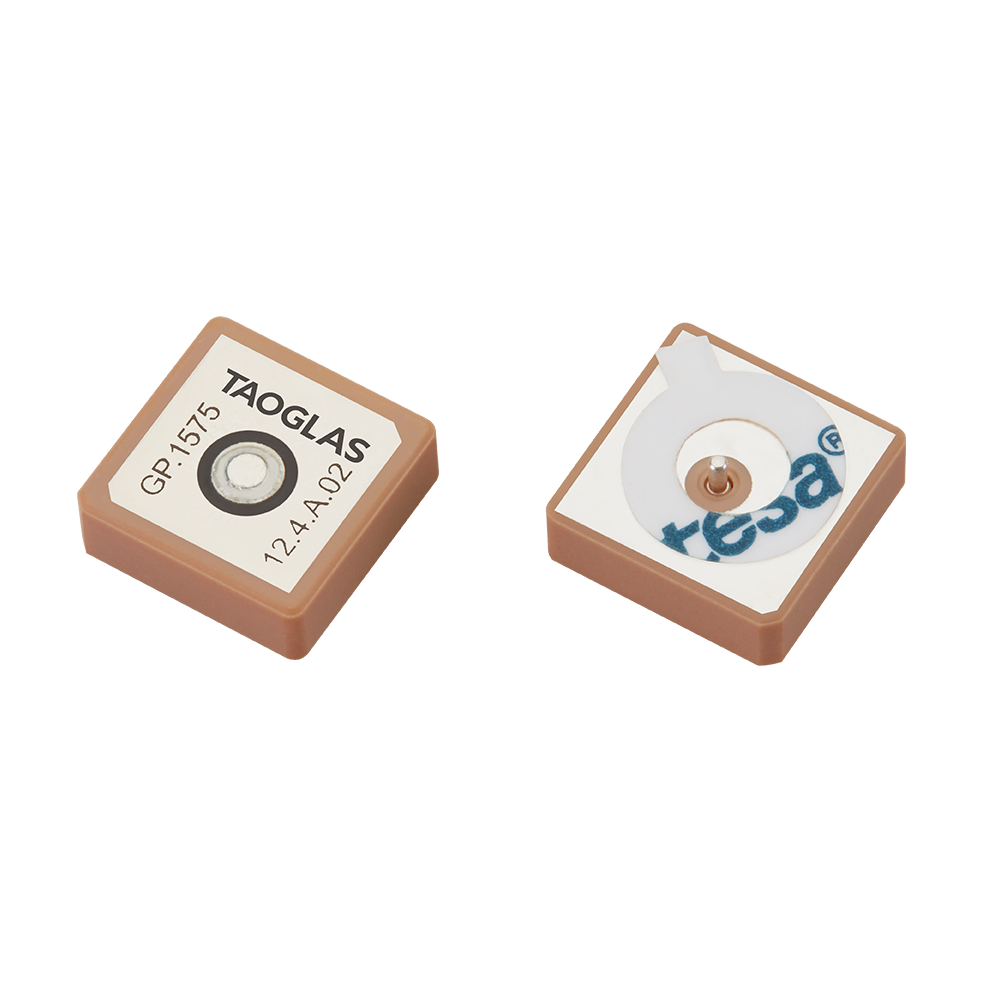

• Integration-friendly mounting: pin mount with double-sided adhesive

Typical applications include:

• Asset Trackers
• Transportation and OBDs

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 12mm*12mm*4mm
Weight: 6g

GNSS (Passive)

Frequency: 1575.42MHz
GNSS Bands: L1
Standards: GPS, Galileo
Polarization: RHCP
Impedance: 50Ω
VSWR: 1.5
Gain (Max): 3.21 dBic
Efficiency (%): 65.72 (Without cable loss)
Termination Style: Pin

Download Datasheet PDF
