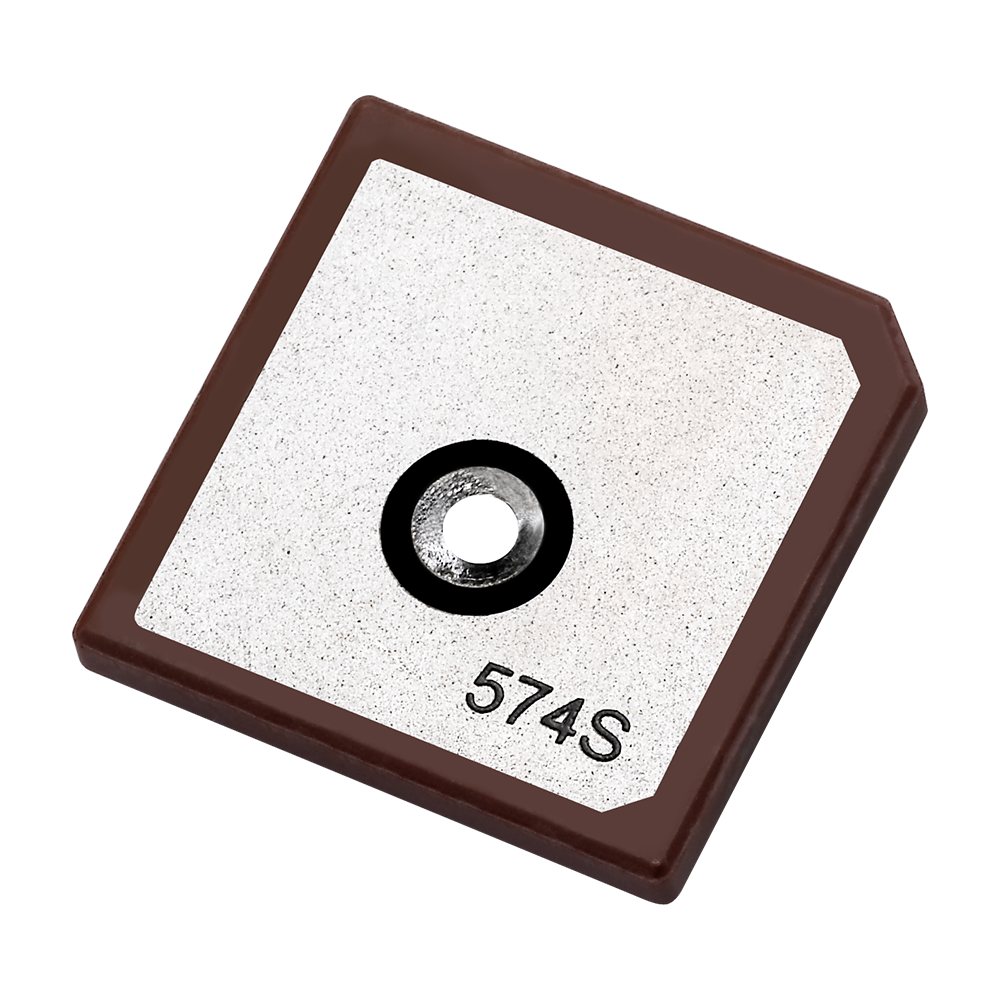

GP.1575.18.2.A.02 Antenna GNSS pin/adhesive patch

This miniaturized ceramic GPS/Galileo patch antenna is based on smart XtremeGainâ„¢ technology. It is designed for embedded device integration and has been selected as an optimal solution for compact customer device environments.

• Compact embedded GNSS patch: Suitable for space-constrained designs requiring GPS/Galileo L1 reception.
• Simple integration: Pin-feed design with double-sided adhesive mounting support.
• Polarization: RHCP for GNSS satellite reception.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal

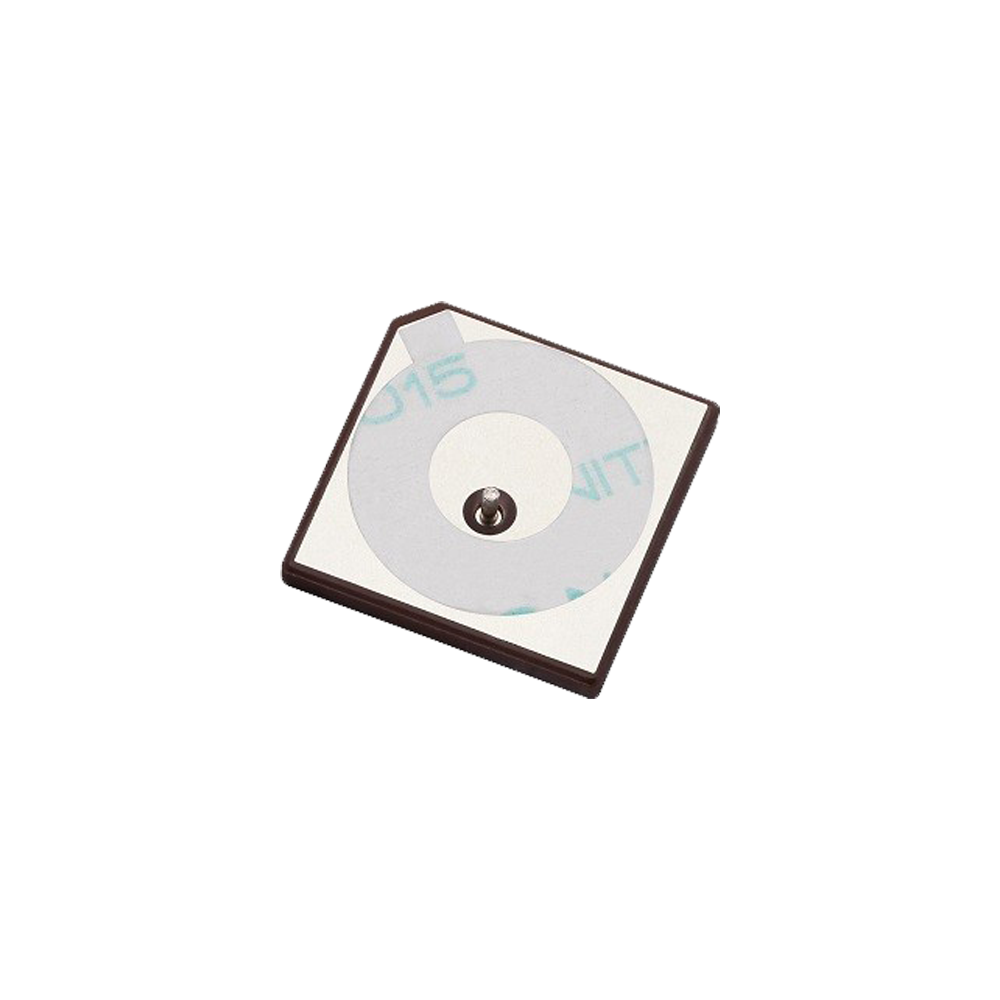

Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1575.42MHz
GNSS Type: Passive GNSS
GNSS Bands: L1
Impedance: 50Ω
Polarization: RHCP
VSWR: 1.5
Gain (Max): -0.5 dBic
Dimensions: 18mm x 18mm x 2mm
Weight: 5.12g
Mounting Style: Pin/Adhesive
Termination Style: Pin

Download Datasheet PDF
