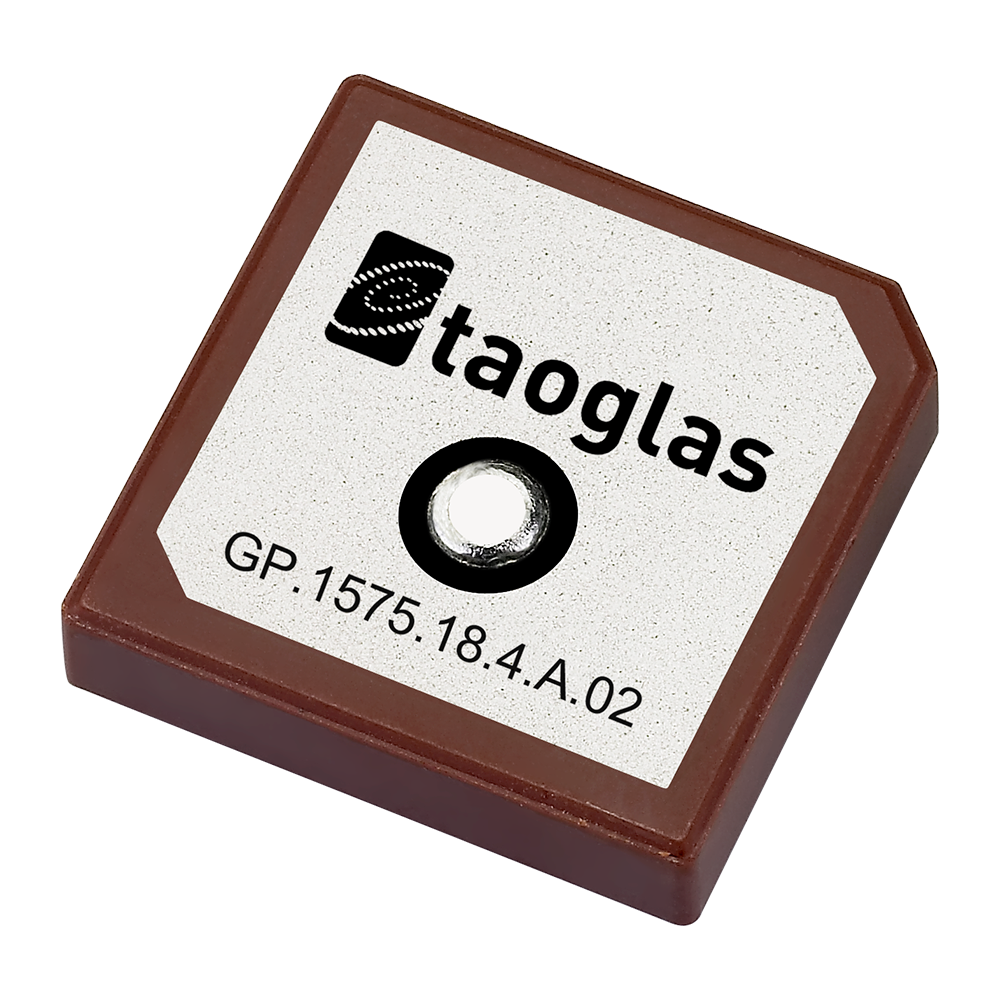

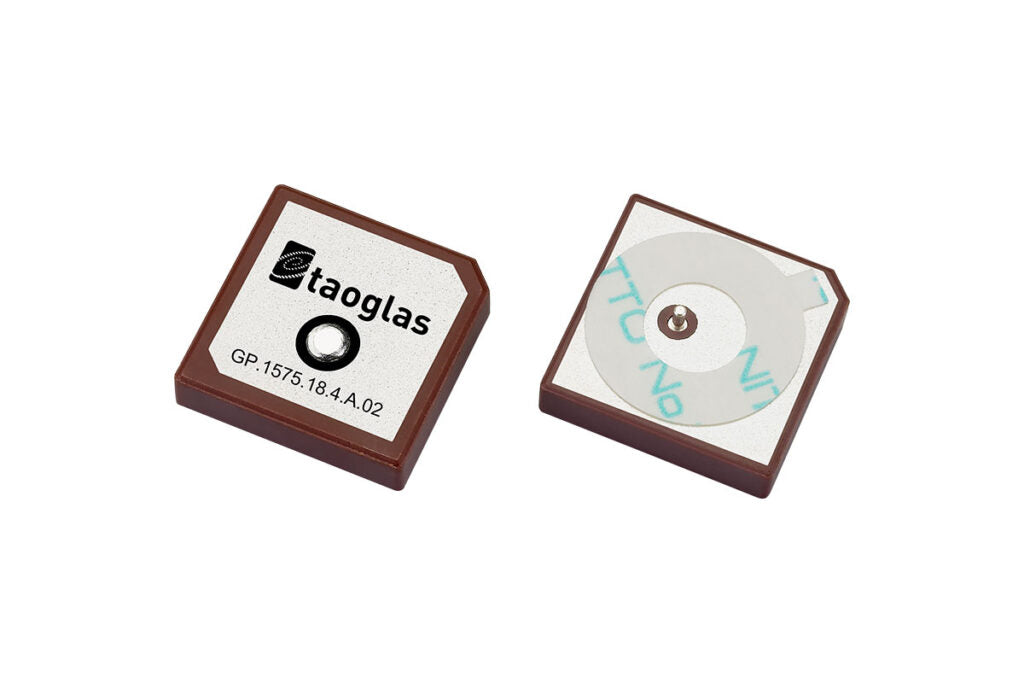

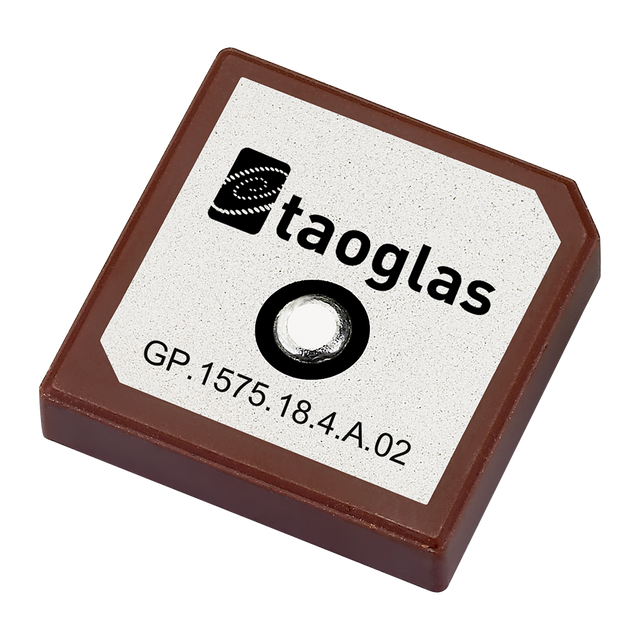

GP.1575.18.4.A.02 Antenna Miniature GNSS pin/adhesive mount patch

This miniature passive patch antenna supports GPS and Galileo reception on the L1 band, making it a strong choice for compact embedded navigation designs.

• Compact ceramic patch form factor for space-constrained devices
• Designed for embedded integration using pin and double-sided adhesive mounting
• Optimized ground plane reference for reliable GNSS performance
• RoHS & REACH compliant

Suitable for GNSS-enabled embedded devices where stable L1 positioning performance is required.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Passive GNSS
GNSS Bands: L1
Frequency: 1575.42MHz
Center Frequency: 1575MHz +/- 3MHz
Impedance: 50Ω
Bandwidth: 8MHz min (Return Loss <-10dB)
VSWR: 1.5 max
Polarization: Right Hand Circular Polarization (RHCP)
Gain toward Zenith: +2.5 dBic typ.
Dimensions: 18mm*18mm*4mm
Weight: 6g

Download Datasheet PDF
