Description

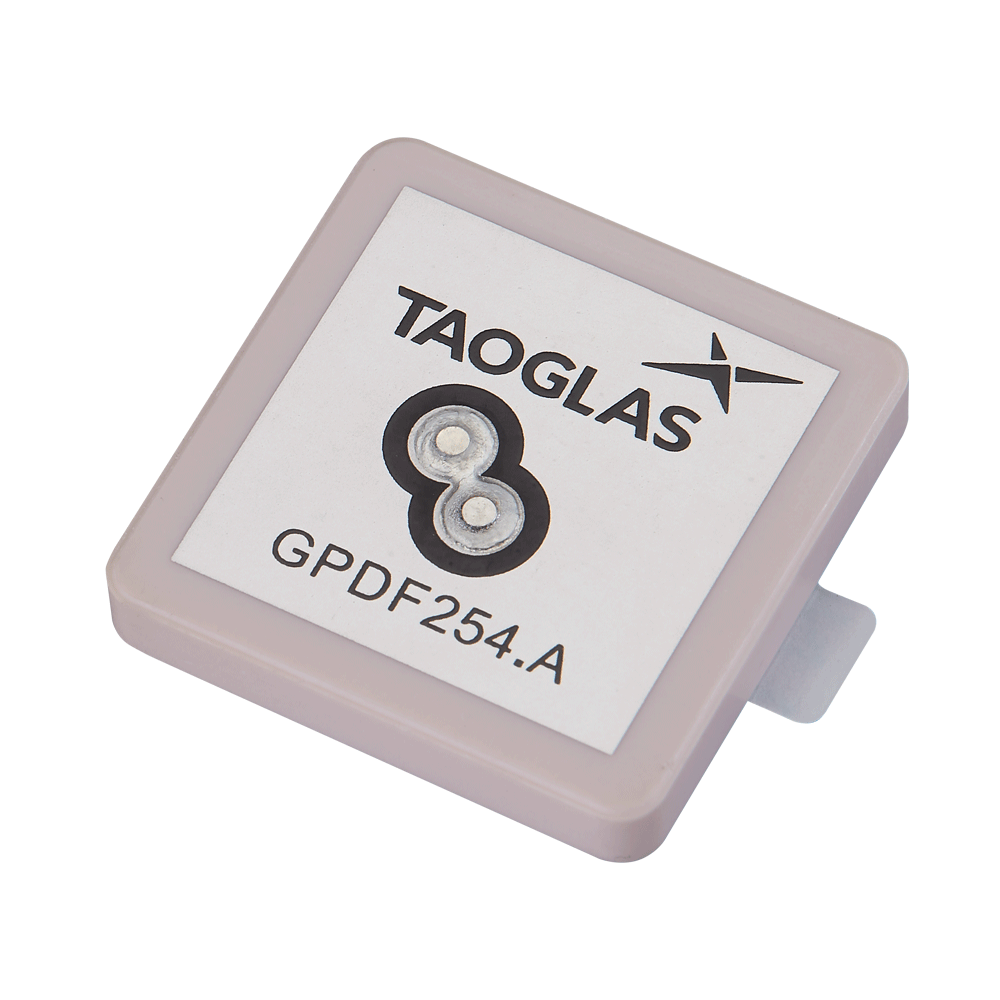

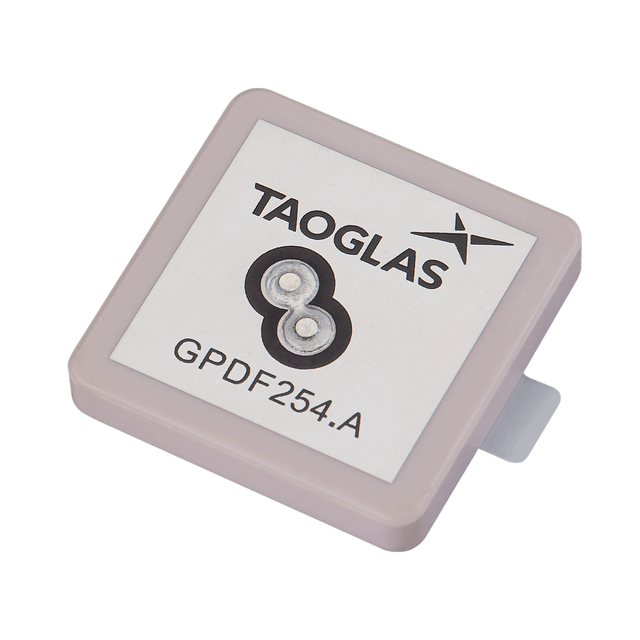

This dual-pin passive GNSS L1 patch antenna is designed to deliver strong positional accuracy across the GNSS L1 spectrum in a compact embedded form factor. Its dual-feed patch design helps achieve a low axial ratio, making it well-suited for next-generation GNSS devices where accuracy and size are critical.
- Dual-pin patch design for improved axial ratio performance
- Wide GNSS L1 coverage supporting GPS (L1), GLONASS (G1), Galileo (E1) and BeiDou (B1)
- Embedded integration for compact positioning and navigation products
Typical use cases include high accuracy positioning and navigation systems, UAVs, robotics & autonomous vehicles, transportation & telematics, precision agriculture, and RTK systems.
For dual pin feed patch integrations, a hybrid coupler (HC125.A) is required; refer to the datasheet integration guidelines for implementation details.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
Dimensions: Ø25 x 4 mm
Weight: 9.7 g
GNSS L1 (Passive Dual-Pin)
Frequency: 1561MHz - 1602MHz
Standards: GPS L1, GLONASS G1, Galileo E1, BeiDou B1
GNSS Type: Passive GNSS
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: 1.5:1
Gain (Max): 3.1
Termination Style: Pin
Cable Length: None
