Description

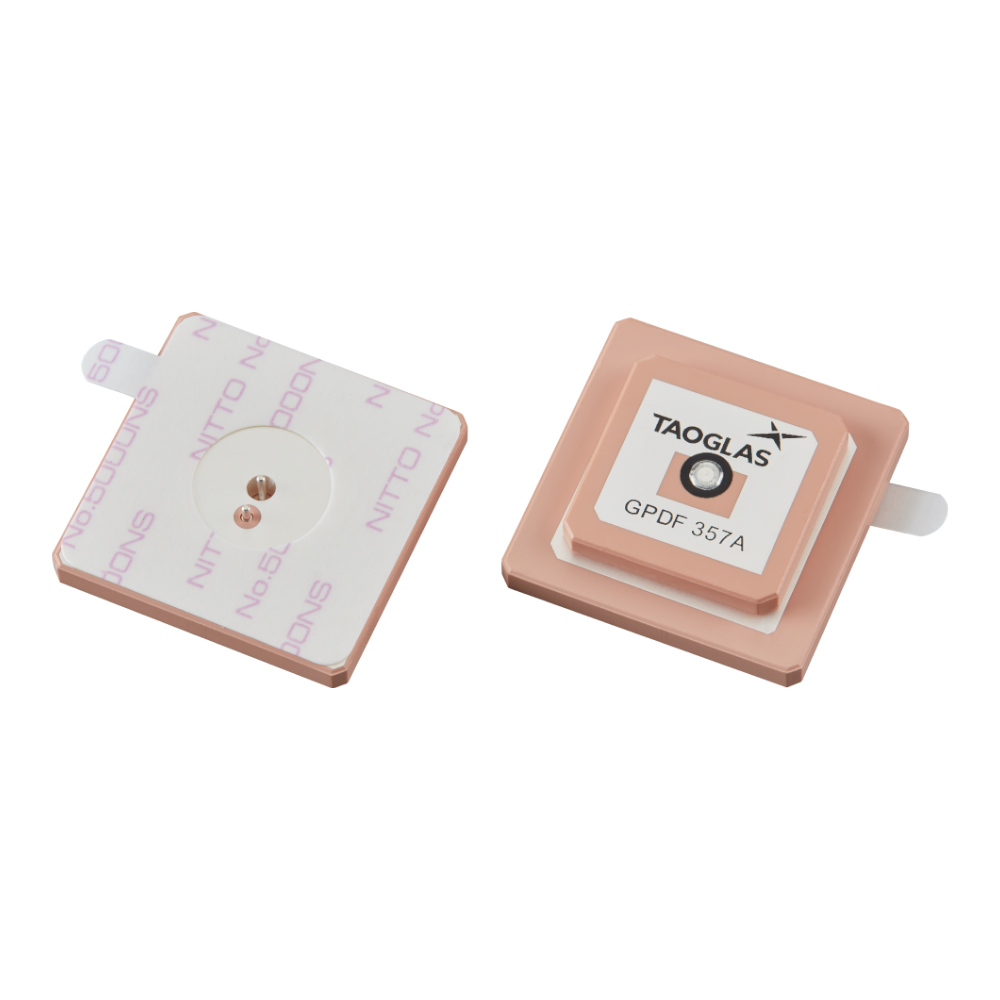

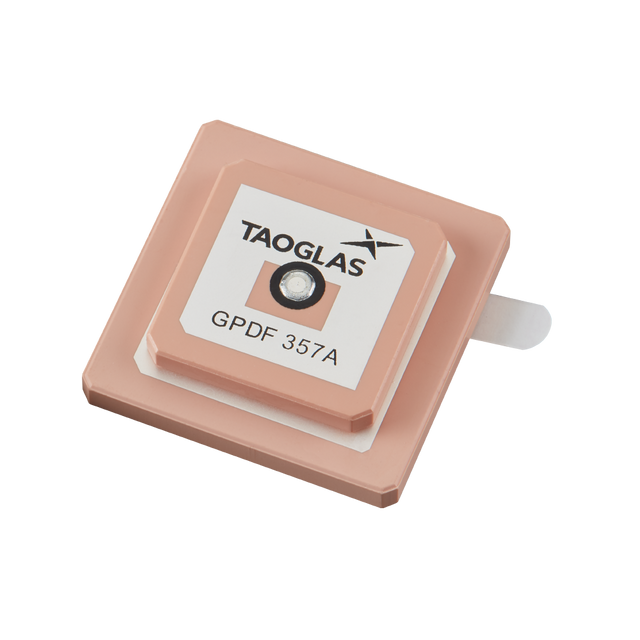

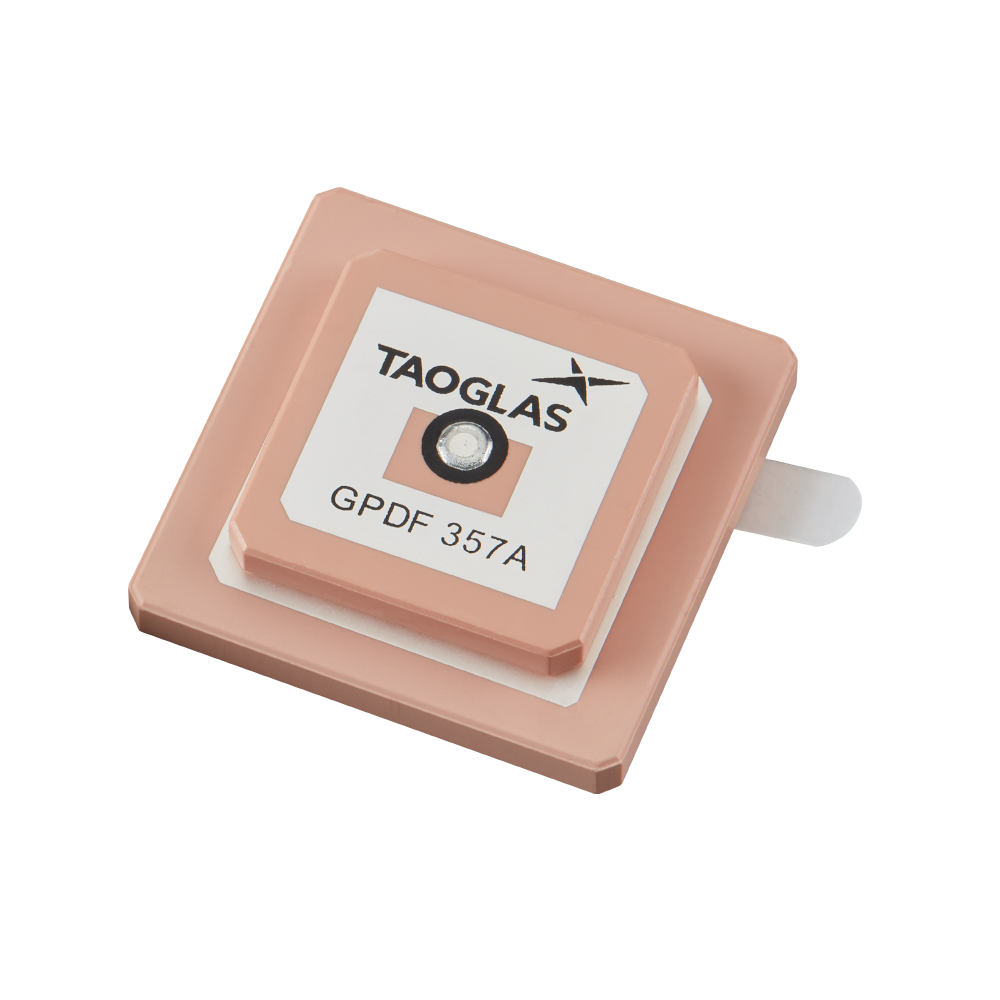

This embedded stacked passive patch antenna is designed for dual-band satellite navigation, supporting GPS L1/L2 and Galileo E1. Its dual-feed, dual-pin stacked patch design helps achieve a low axial ratio and stable radiation performance for reliable positioning, even in challenging signal environments.
- Dual-band GNSS support: GPS L1/L2 and Galileo E1
- Stacked patch architecture: engineered for strong performance and stability
- Compact embedded form factor: suited to space-constrained device designs
- Designed for integration: tuned on a 70 x 70 mm ground plane
Typical applications include:
- High accuracy positioning and navigation systems
- UAVs, Robotics & Autonomous Vehicles
- Mapping & GIS
- Transportation & Telematics
- Precision Agriculture
- Public Safety, Search & Rescue
- RTK Systems
Also available as GPDF357B tuned specifically for a smaller 35 x 35 mm ground plane.
Technical Specifications
Operating Temperature: -40 C to +85 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive
Satellite Navigation: GNSS
Type: Combination
Frequency: 1217MHz - 1592MHz
GNSS Type: Passive GNSS
GNSS Bands: L1/L2
Polarization: RHCP
Impedance: 509
VSWR: 2:1
Dimensions: 35*35*7.15 mm
Weight: 25.2g
Termination Style: Pin
GNSS L1 (GPS L1 / Galileo E1)
Frequency: 1575.42 MHz
Standards: GPS L1, Galileo E1
Return Loss (dB): < -14
Efficiency (%): 33
Peak Gain at Zenith (dBi): 1
Average Gain (dB): -4.6
Axial Ratio (dB): < 0.8
Group Delay Ripple (ns): 10
Polarization: R.H.C.P.
Impedance: 509
Connector Type: None (Pin termination)
Cable Length: None
GNSS L2 (GPS L2)
Frequency: 1227.6 MHz
Standards: GPS L2
Return Loss (dB): < -13
Efficiency (%): 55
Peak Gain at Zenith (dBi): 2.1
Average Gain (dB): -2.6
Axial Ratio (dB): < 0.5
Group Delay Ripple (ns): 18
Polarization: R.H.C.P.
Impedance: 509
Connector Type: None (Pin termination)
Cable Length: None
