GPDF357B Antenna GNSS embedded patch for High accuracy positioning and navigation systems, UAVs, Robotics & Autonomous Vehicles, Mapping & GIS, Transportation & Telematics

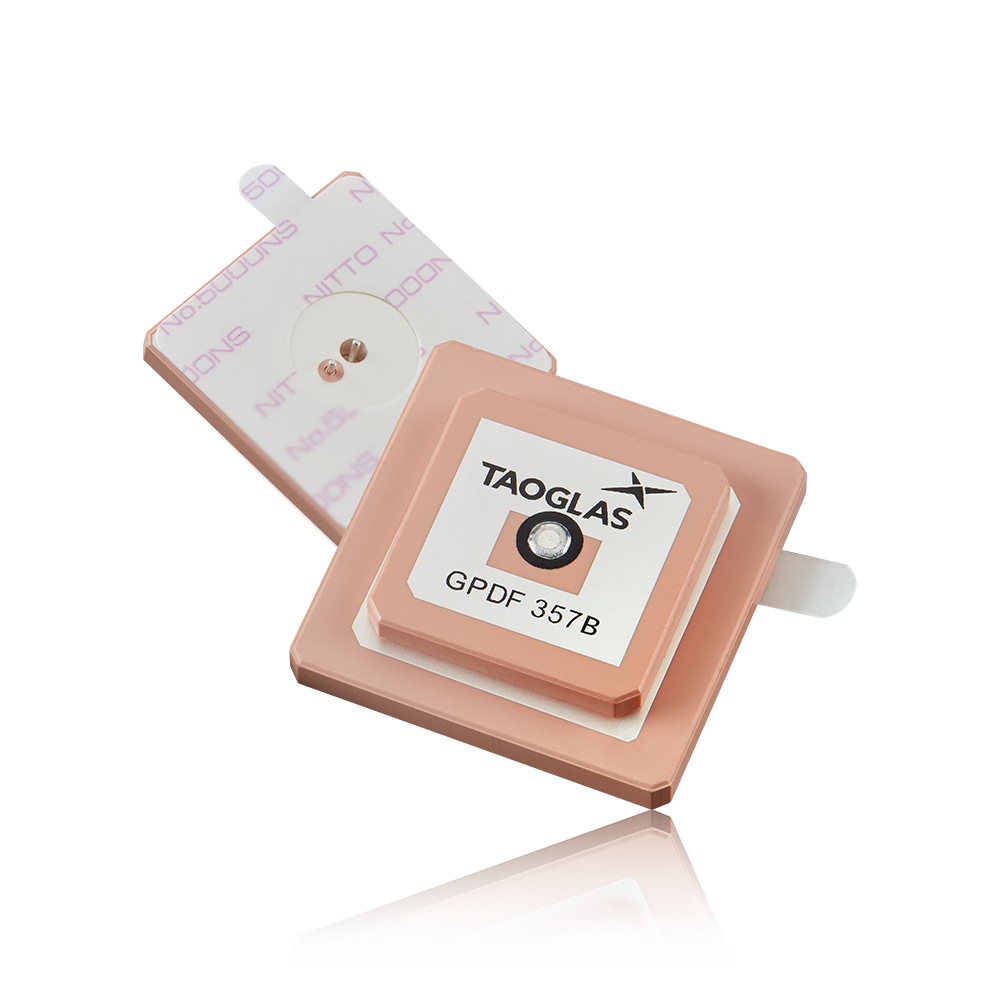

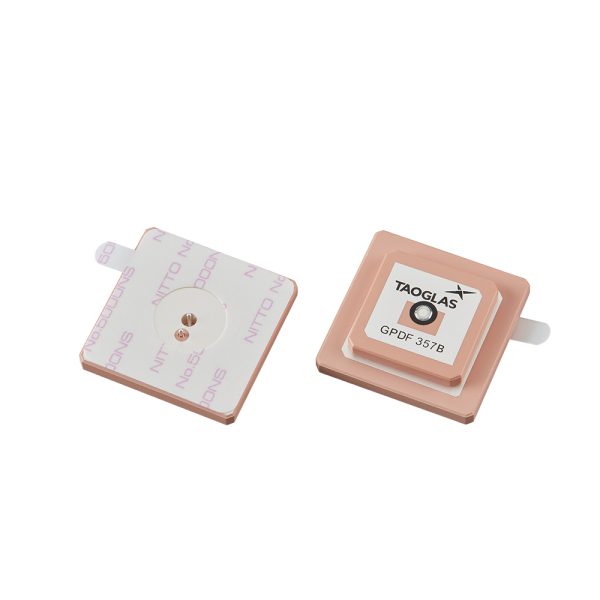

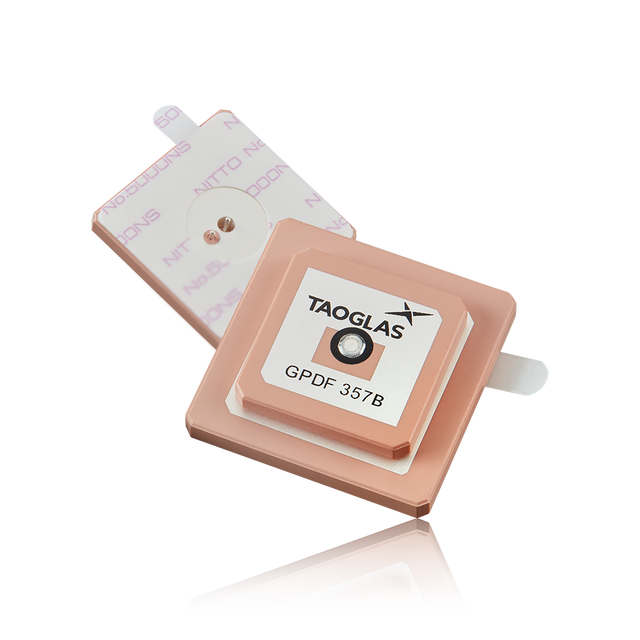

Embedded stacked passive GNSS patch antenna designed for compact, high-performance positioning devices. This dual-pin stacked patch design supports GPS L1 and L2 along with Galileo E1, helping deliver reliable satellite reception and improved positioning performance in challenging environments.

• Dual-pin stacked patch design: supports multi-band GNSS operation
• Low axial ratio: supports stable RHCP performance for GNSS reception
• Optimized for integration: intended for embedded device platforms using a defined ground plane

Typical applications include:

• High accuracy positioning and navigation systems
• UAVs, Robotics & Autonomous Vehicles
• Mapping & GIS
• Transportation & Telematics
• Precision Agriculture
• Public Safety, Search & Rescue
• RTK Systems

This patch can also be purchased in a version tuned specifically for a larger 70*70mm ground plane, the GPDF357A. Patch antennas can also be tuned to customer-specific device environments, subject to NRE and MOQ. Contact your regional customer support team to request these services or additional support to integrate and test this antenna’s performance in your device.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive
Satellite Navigation: GNSS
Type: Combination
GNSS Type: Passive GNSS
GNSS Bands: L1/L2
Mechanical Style: Patch
Termination Style: Pin
Impedance: 50Ω
VSWR: 2:1
Polarity: RHCP
Frequency Range: 1217MHz - 1592MHz
Dimensions: 35*35*7.15 mm
Standard Ground Plane Size: 35*35mm
Pin Length: 2.4mm
Weight: 25.2g
RoHS & Reach Compliant: Yes

GPS L1 / Galileo E1 (Passive)

Frequency: 1575.42 MHz
Standards: GPS L1, Galileo E1
Return Loss (dB): < -14
Efficiency (%): 27.9
Peak Gain at Zenith (dBi): -1.3
Average Gain (dB): -5.5
Axial Ratio (dB): < 2
Polarization: R.H.C.P.
Impedance: 50Ω

GPS L2 (Passive)

Frequency: 1227.6 MHz
Standards: GPS L2
Return Loss (dB): < -13
Efficiency (%): 47.9
Peak Gain at Zenith (dBi): 2.8
Average Gain (dB): -3
Axial Ratio (dB): < 2
Polarization: R.H.C.P.
Impedance: 50Ω
